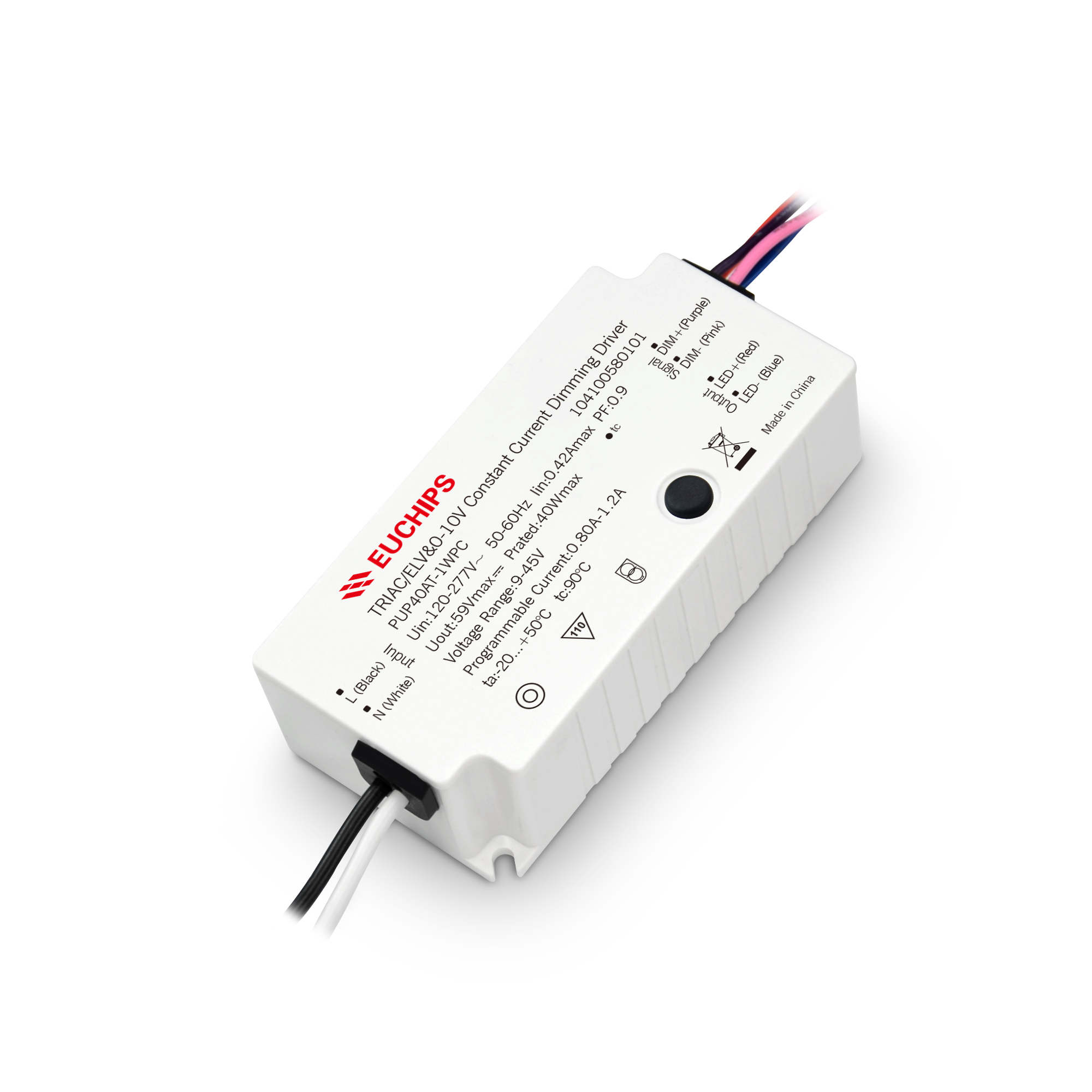

40W 800-1200mA Triac & 0-10V CC Driver PUP40AT-1WPC
40W 800-1200mA Triac & 0-10V CC Driver PUP40AT-1WPC
PUP40AT-1WPC is a constant current mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect.
Features
· Single channel output, output current can be selected by software
• Compatible with TRIAC (forward-phase or leading-edge),
ELV (reverse-phase or trailing-edge) and 0–10 V dimmers
• TRIAC and ELV dimming at 120 Vac only
• Class 2 power supply
• Protections: Over load, Over Voltage and short-circuit
· Suitable for indoor LED lighting application
Technical Parameters
| Model | PUP40AT-1WPC | |
|
Input |
Efficiency | 85%@120VAC, Full load |
| Frequency | 47-63Hz | |
| Voltage | 120VAC-277VAC | |
| Current | 0.42Amax@120VAC, 0.25A@230VAC, 0.21A@277VAC | |
| PF | 0.95@120VAC, 0.9@277VAC, Full load | |
| THD(full load) | 10%@120VAC, 20%@277VAC, Full load | |
| Inrush Current | Cold start,6A@120VAC 31us 15A@277VAC 28us | |
| Standby power | <2.5W | |
| No load power | <2.5W | |
| Turn on delay Time | ≤ 0.75s, at230Vac (When the light begins to shine) | |
|
Output |
Current | 800-1200mA |
| Voltage | 9-45V | |
| Power | 36W-40W | |
| Channel | 1 | |
| No load output voltage | 59V Max | |
| Current Accuracy | ±5% | |
| Over power limit | ≥120% | |
| Ripple | ≤ 60mA | |
| PWM Frequency | 20K Hz | |
| Protection | Over Voltage | Reduce current protection, restore normal operation after troubleshooting |
| Over load | Reduce current protection, restore normal operation after troubleshooting | |
| Short circuit | No output, self recovery after removing the fault | |
| Function | Dimming type | 0-10V, TRIAC/ELV(@120VAC 60Hz) |
| Dimming range | 0.5%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | 0-10V: (Linearity) TRIAC/ELV: (Logarithm) | |
| Flicker | Flicker free | |
|
Safety & EMC |
Surge | L-N:2.5KV (ANSI/IEEE C62.41.1-2002 & c62.41.2-2002 category A, 2.5 kV ringwave) |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others
|
IP rating | IP20 |
| Working temp. | (-20℃~+50℃) [-4°F~122°F] | |
| Relative humidity | 20℃~90%℃ RH | |
| tc | 90℃ [ 194°F ] | |
| Lifetime | 50,000h@tc:85 [ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch cycle | >25,000 times | |
| Material | PC | |
| Dimension | 88*43*26.5mm (3.46*1.69*1.04 Inch)(L*W*H) | |
| Pack Information | N.W: 173g(0.38 lb)±5%/PCS; 100PCS/Carton; 17.8kg(39.2Ib)±5%/Carton; Carton Size: 398x210x208mm(15.7*8.26*8.19 Inch)(L*W*H) | |
Remark: Use only within an enclosure
