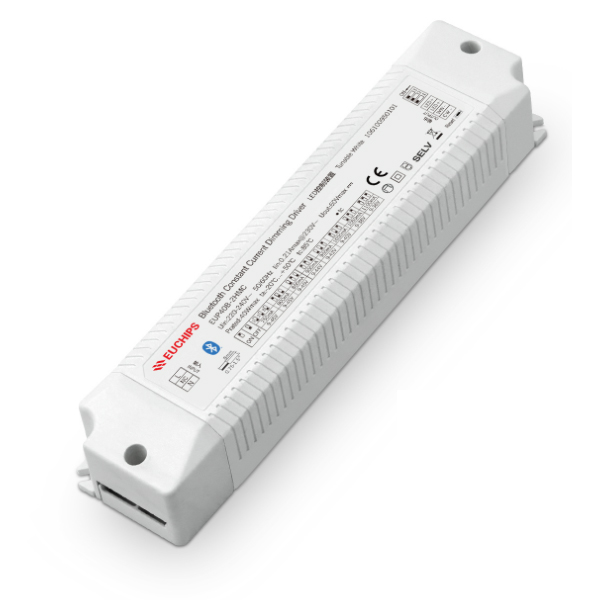

40W 750~1100mA*2ch Bluetooth CC Driver EUP40B-2HMC
40W 750~1100mA*2ch Bluetooth CC Driver EUP40B-2HMC
EUP40B-2HMC is a product that can provide 750/800/850/900/950/1000/1050/1100ma The output current of LED Driver with 8-level current can be easily set through dip dial switch Realize wireless dimming and color matching effect through Bluetooth.
Features
· output current level selectable by DIP S.W.
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 87%
· Built-in active PFC function
· Protections: Over voltage, over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
· Support Bluetooth line control and gateway control for IOS and Android smart devices
· Bluetooth 5.1SIGMesh connection is more stable
· No stroboscopic
· Passed BQB certification test and met SIG Mesh standards
Technical Parameters
| Model | EUP40B-2HMC | ||
|
Input |
Voltage | 220VAC-240VAC | |
| Frequency Range | 50/60Hz | ||
| Efficiency | ≥87%@230VAC, full load | ||
| Power Factor | ≥0.95@230VAC, full load | ||
| AC Current(max) | 0.21Amax@230VAC | ||
| THD | <10%@230VAC, full load | ||
| Inrush Current(max) | Cold start, 40A (twidth = 100US measured at 50% ipeak) @ 230VAC | ||
| standby power | ≤1.5W | ||
| No load power | ≤1W | ||
| start delay | ≤ 0.75 s, at230Vac (When the light begins to shine) | ||
| Output | Current / voltage / power | 750mA/9-45VDC/33.75W 800mA/9-45VDC/36W 850mA/9-45VDC/38.25W 900mA/9-44VDC/39.6W 950mA/9-42VDC/39.9W 1000mA/9-40VDC/40W 1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W |
|
| Voltage | 45V | ||
| electric current | MAX 1.1A | ||
| Output voltage range | 9-45V | ||
| Dial switch | 750-1100MA | ||
| Channel | 2 | ||
| Current accuracy | 5% | ||
| power | 40W max | ||
| Ripple current | <3% | ||
| No load voltage | 60V max | ||
| Function | Dimming mode | Bluetooth | |
| Dimming range | 1%-100% | ||
| Dimming curve | linear | ||
| Protection | Over voltage | Current drops, troubleshooting output is normal | |
| Over load | Reduce current hiccup protection, troubleshooting output normal | ||
| short circuit | Short circuit no output, troubleshooting output normal | ||
| SEMafCety& | lightning surge | L-N 2000VAC | |
| Withstand voltage | Input to output 3750VAC / 1min / < 5mA | ||
| safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | ||
| electromagnetic compatibility | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | ||
| Insulation impedance | 5MΩ | ||
| Others | Waterproof grade | IP20 | |
| working temperature | ta:-20℃~+50℃ | ||
| tc | 85℃@220Vac | ||
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | ||
| life | 50,000h@tc:80℃ | ||
| Warranty | 5year | ||
| texture of material | Plastic shell | ||
| Switching cycle | >25,000 times | ||
| Package size (weight) | Net weight: 183g ± 5% / PCS; 50PCS/Carton; 9.65kg ± 5% / box; Outer box size:430*306*168mm | ||
| size | 185*42.5*28.5mm (L*W*H) | ||
