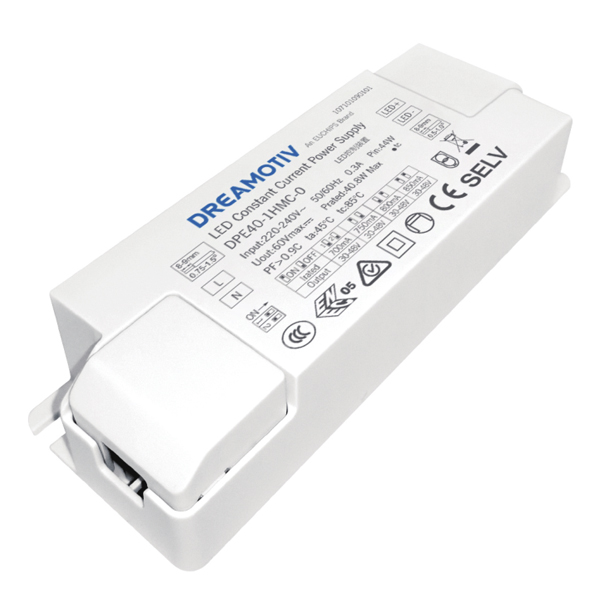

40W 700/750/800/850mA Non-dimmable CC Driver DPE40-1HMC-0
40W 700/750/800/850mA Non-dimmable CC Driver DPE40-1HMC-0
DPE40-1HMC-0 is a half voltage range input, isolated flyback constant current drive power supply developed for LED lamp. This power supply adopts new circuit design, which makes the product have high reliability, low noise, energy saving and environmental protection, long life and so on.
Features
·High efficiency up to 88%
·High reliability, Flicker free
·Flicker free
·low noise and long life
·Energy conservation and environmental protection
·Support Protection: Over Voltage, Over Load, Over temperature, Short circuit
·Suitable for indoor lamps
Technical Parameters
| Model | DPE40-1HMC-0 | |
|
Input |
Efficiency(Full load) | >88%@230VAC |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor(Full load) | >0.9@230VAC | |
| THD(full load) | <15%@230VAC, Full load | |
| AC Current(max) | 0.3Amax@230VAC | |
| Standby power | <1W | |
| Inrush Current(max) | Cold start, <20A@230VAC | |
|
Output |
Current/Voltage/Power | 700mA/30-48VDC/33.6W 750mA/30-48VDC/36W 800mA/30-48VDC/38.4W 850mA/30-48VDC/40.8W |
| Ripple Current | <10% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60VDC | |
|
Protection |
Short circuit | The product of anode and short sub, this product will start short circuit protection function, and not because this abnormality in product permanent damage. |
| Over Load | The output shall hiccup when the Power over the rated power, and shall be self-recovery when the fault condition is removed. | |
| Over Voltage | The output shall hiccup when the over voltages applied to the output rail, and shall be self-recovery when the fault condition is removed. | |
| Over Temperature | The output shall hiccup when the temperature exceed the standard value, and shall be self-recovery when the fault condition is removed | |
|
Safety & EMC |
Surge | Line To Line;1KVac/60 Second*5 times |
| Withstand Voltage | Primary to Secondary: 3750Vac 10mAMax / 60second(1second for production) | |
| Safety Standards | – | |
| EMC Eission | EN55015:2006+A1 2007; EN61000-3-2:2000,CLASS A; EN61000-3-3:1995+A1:2001; | |
| EMC Immunity | EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-5; EN 61000-4-8; EN 61000-4-11; EN 61000-6-1; EN 61000-6-3; | |
|
Others |
Working Temp. | -20°C~45°C, 10-90%RH |
| Storage Temp., Humidity | -40°C~70°C, 5-95%RH | |
| tc | 85°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:25°C | |
| Warranty Condition | 3 years | |
| Switch Cycle | >25,000 times | |
| Packing(mm L*W*H) | N.W: –g±5%/PCS; 150PCS/Carton; –kg±5%/Carton;Carton Size: L435*W260*H240mm | |
| Dimension | 119*42*25mm(L*W*H) | |
