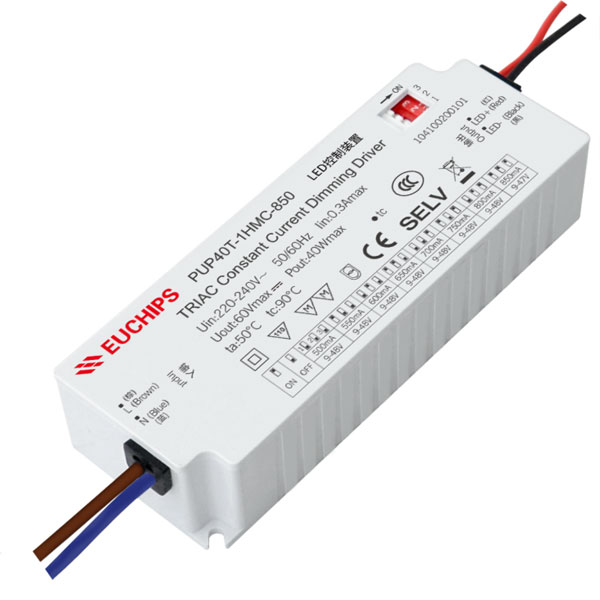

40W 500~850mA*1ch Phase-cut CC Driver PUP40T-1HMC-850
40W 500~850mA*1ch Phase-cut CC Driver PUP40T-1HMC-850
PUP40T-1HMC-850 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 220V-240VAC
4. Built-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP40T-1HMC-850 | |
| Input | Efficiency | >86%@230VAC, Full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <15%@230VAC, Full load | |
| AC Current(max) | 0.3Amax@230VAC | |
| Inrush Current(max) | Cold start,15A@120VAC | |
| Standby Power | <3.5W | |
| Output | Current(mA)Voltage (VDC)Power(W) | 500mA/9-48VDC/24W 550mA/9-48VDC/26.4W 600mA/9-48VDC/28.8W 650mA/9-48VDC/31.2W 700mA/9-48VDC/33.6W 750mA/9-48VDC/36W 800mA/9-48VDC/38.4W 850mA/9-47VDC/39.95W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60V Max | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off | |
| Protection | Short Circuit | Close output，recovers automatically after fault removed. |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Voltage | Close output，recovers automatically after fault removed. | |
| Safety&EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 tims | |
| Pack Information | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| Dimension | 121*44*26.5mm（L*W*H） | |
