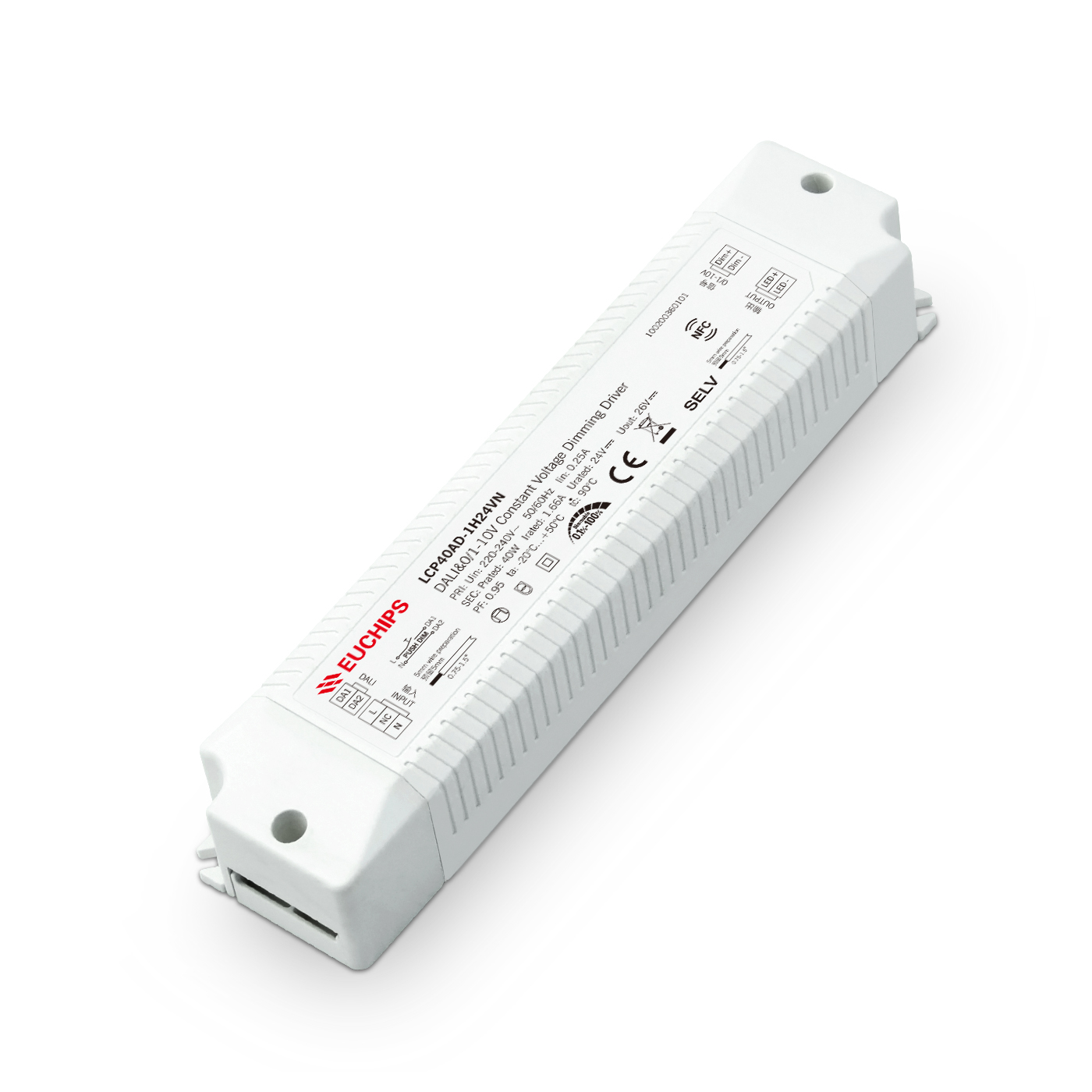

40W 24VDC DALI&0/1-10V CV Driver LCP40AD-1H24VN
40W 24VDC DALI&0/1-10V CV Driver LCP40AD-1H24VN
Features
·Single-channel constant voltage output, maximum output current: 1.66A
·Meet DALI protocol IEC 62386, DALI2.0
·Short circuit, overcurrent, overload protection
·Enclosure with V-0 Flame-Retardant Rating
·The dimming range is 0.1% to 100%, featuring smooth, step-free dimming and flicker-free operation
·Supports reading the DALI address of the driver via NFC and allows modification of the current address, scenes, and dimming curves.
·The DALI address can be quickly read via NFC, and the current address, scenes, and dimming curves can be modified.
·The elongated housing design facilitates installation in narrow spaces.
·50,000-hour lifespan with a 5-year warranty
·5-in-1 dimming:DALI2.0, 0/1-10V active signal, PWM, adjustable resistance, and Touch DIM
·IP20 protection rating, suitable for indoor Class I, II, and III luminaires
Technical Parameters
| Model | LCP40AD-1H24VN | |
| Input | Rated Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.25Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | ≥85%@230VAC, Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby power | <1W | |
| No load power | <1W | |
| Inrush Current | Cold start, 25A@230VAC 500us | |
| Output | Output Voltage | 24VDC |
| Output Voltage Tolerance | ±5% | |
| Output Current | 1.66A | |
| Output Power | 40W | |
| Output Power Range | 0W~40W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| PWM Dimming frequency | 20KHz | |
| Line regulation | /% @Full load | |
| Load regulation | /% @Full load | |
| Turn on delay Time | 0.75s, at230Vac | |
| Function | Dimming Type | DALI2.0, 0/1-10V active signal, PWM, adjustable resistance, and Touch DIM |
| Dimming Range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short circuit | No output, Auto-Recover when fault removed |
| Overcurrent | Hiccup protection with reduced output current, auto-Recover when fault removed | |
| Overload | Hiccup protection with reduced output current, auto-Recover when fault removed | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA O/P-Signal: 1500VAC/1min/5mA | |
| Safety standard | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | Comply with 2011/65/EU |
| tc | 90℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 185*42.5*28.5mm (L*W*H) | |
| Packing(weight) | Net weight: 151g±5%/PCS; 50PCS/Carton; 8.05kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
