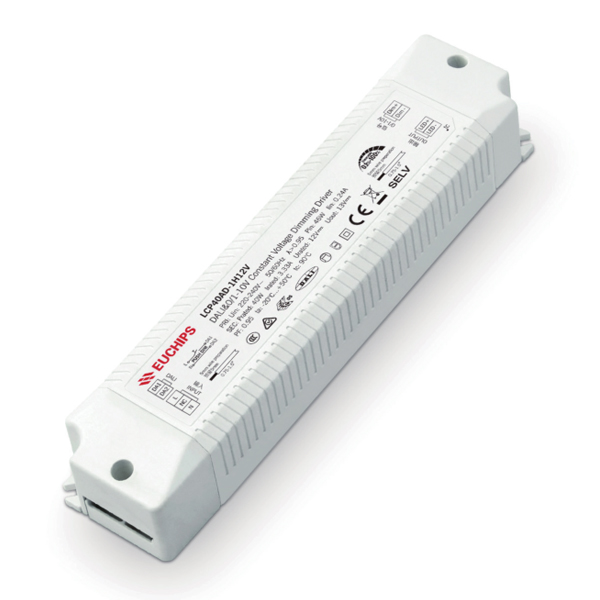

40W 12VDC DALI&0/1-10V CV Driver LCP40AD-1H12V
40W 12VDC DALI&0/1-10V Driver LCP40AD-1H12V
LCP40AD-1H12V is a constant Voltage output mode LED driver. Support DALI dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
1. Single channel output
2. Support DALI-2 dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
3. Dimming range: 0.1-100%，Dimming effect smooth, no flicker
4. Protections: Short circuit, Over load
5. Suitable for indoor LED lighting application
Technical Parameters
| Model | LCP40AD-1H12V | |
| Input | Efficiency | ≥85%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | ≤0.27Amax@230VAC | |
| Standby power | <1W | |
| Inrush Current(max) | Cold start, <30A@230VAC | |
| Output | Current/Voltage/Power | 3.35A/12VDC/40W |
| Channel | <1 | |
| Voltage Tolerance | <±5% | |
| Ripple Current | <3% | |
| Turn on delay Time | <0.5s, at 230Vac | |
| Function | Dimming Type | DALI/Touch DIM/1-10V/Adjustable resistance /PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Connect the LED power positive output and LED negative output terminal, together |
| Over load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Safety&EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
| Others | Working Temp., Humidity | -20°C~50°C, 20-50%RH |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 161g±5%/PCS; 50PCS/Carton; 8.1kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | |
| Dimension | 185*42.5*28.5mm(L*W*H) | |
