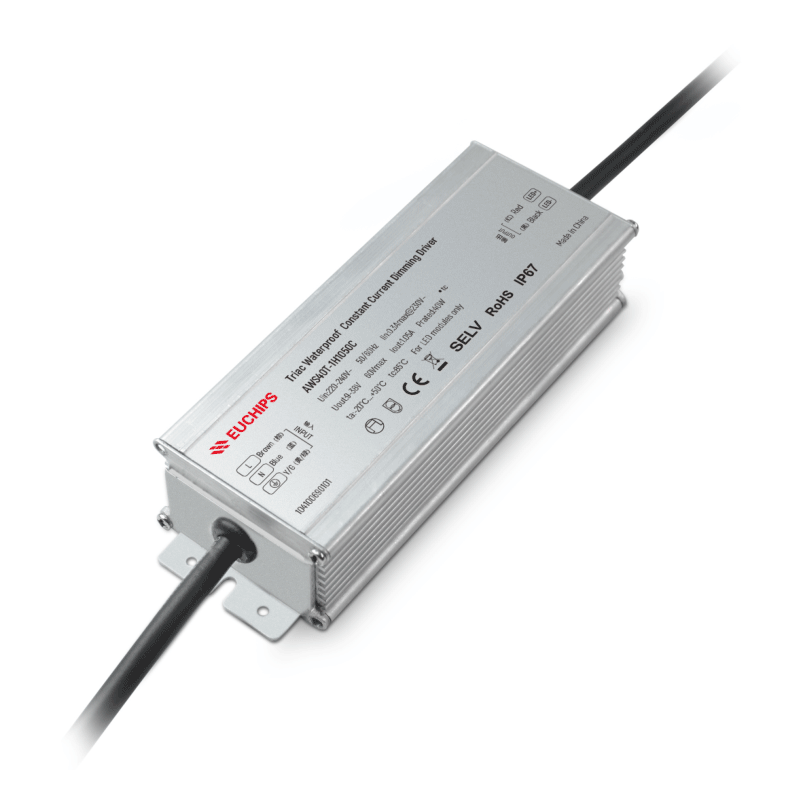

40W 1050mA*1ch Phase-cut CC Driver AWS40T-1H1050C
40W 1050mA*1ch Phase-cut CC Driver AWS40T-1H1050C
AWS40T-1H1050C is a constant current LED driver. This driver supports both front and back edge phase dimmers for a smooth dimming curve.
Features
· Single channel constant current output
· Support front/back cutting phase dimming
· Input voltage range: 220~240VAC
· Smooth dimming curve, no flicker
· Short circuit protection, overload protection, overvoltage protection
Technical Parameters
|
Model |
AWS40T-1H1050C | |
|
Input |
Efficiency | >83%@230VAC, Full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <15%@230VAC, Full load | |
| AC Current(max) | 0.3Amax@100VAC | |
| Inrush Current(max) | Cold start,0.75A(t width =200us measured at 50% Ipeak ) @230VAC | |
| Standby Power | <3.5W | |
|
Output |
Current/Voltage/Power | 1050mA/9-38VDC/40W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 60V Max | |
| Turn on delay Time | <1.5s, at 230Vac (When the light begins to shine) | |
| Function | Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off | |
|
Protection |
Short Circuit | Close output，recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Voltage | Close output，recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV L-N-/GND:2.5KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMI Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
|
Others |
Working Temp. | -20°C~50°C |
| Storage Temp., Humidity | -40°C~85°C, 20-90%RH | |
| tc | 85°C | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85°C | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 tims | |
| Pack Information | Net weight: 440g±5%/PCS; 40PCS/Carton; 18.1kg±5%/Carton; Carton Size: 336x305x164mm(L*W*H) | |
| Dimension | 157*55*34.5mm(L*W*H) | |
