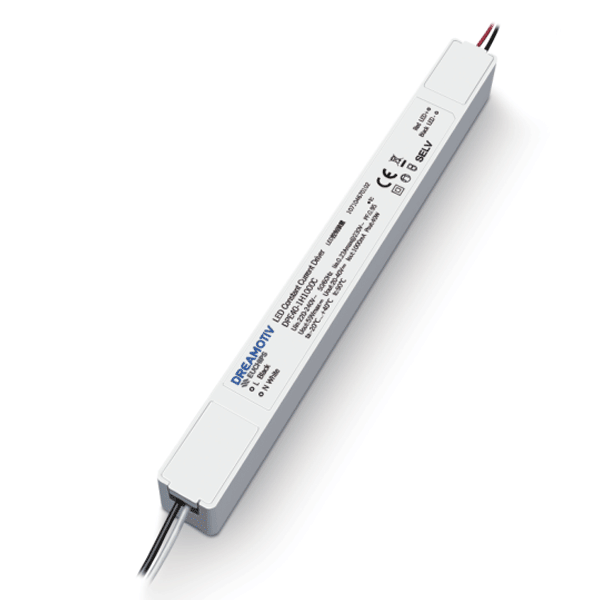

40W 1000mA Non-dimmable CC Driver DPE40-1H1000C
40W 1000mA Non-dimmable CC Driver DPE40-1H1000C
DPE40-1H1000C is a constant current output LED driver that can be used indoors. This driver can be applied in small spaces, with a long strip design that is easy to use.
Features
· Single channel Constant Current output, maximum current of 1.0A
· High efficiency up to 88%
· Protection: overload, over Voltage, Short circuit
· No load power consumption ≤ 0.5W, THD<10%
Technical Parameters
|
Model |
DPE40-1H1000C | |
|
Input |
Efficiency | ≥88%@230VAC, full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.22Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Inrush current | Cold start,40A@230VAC 200us | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.5 s, @230Vac (When the light begins to shine) | |
|
Output |
Current | 1000mA |
| Voltage | 20-40VDC | |
| Power | 40W | |
| Current Accuracy | ±5% | |
| Ripple current | <10% | |
| No load output voltage | 60VDC max | |
| Channel | 1 | |
|
Protection |
Short circuit | Hiccup protection, self recovery after troubleshooting |
| Over load | Hiccup protection, self recovery after troubleshooting | |
| Over Voltage | Hiccup protection, self recovery after troubleshooting | |
|
Safety& EMC |
Surge | L-N 1000VAC |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Eission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working temp. | ta:-20-40℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| IP | IP20 | |
| Lifetime | 30 000h@tc:90℃ | |
| Warranty | 3 year | |
| Switch cycle | 15,000 times | |
| Packing size | Net weight:350g±5%/PCS; 30PCS/Carton; 11kg±5%/Carton; Carton Size: 392x213x145mm(L*W*H) | |
| Dimension | 186*19*21mm(L*W*H) | |
