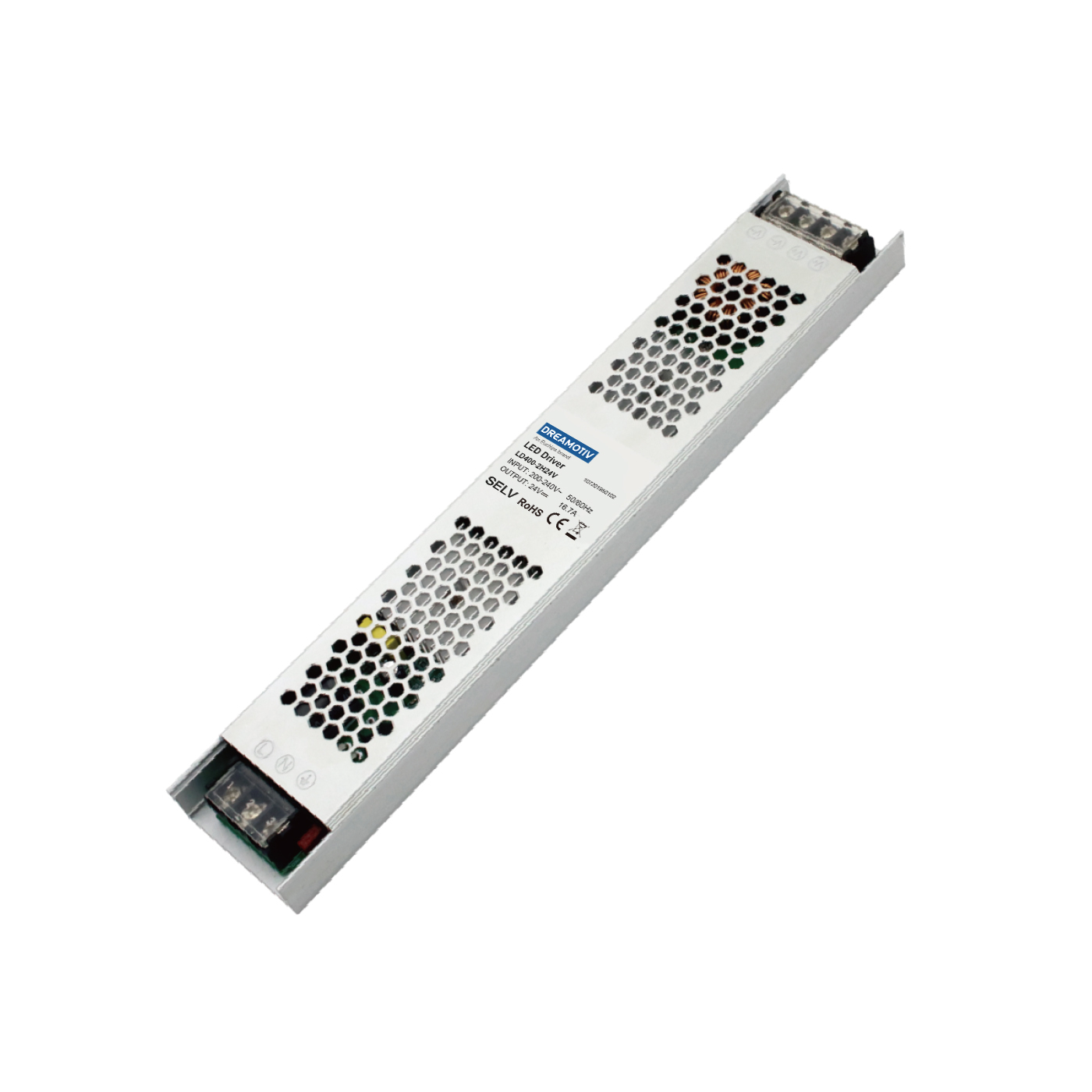

400W 24VDC 2ch Non-dimmable CV Driver LD400-2H24V
400W 24VDC 2ch Non-dimmable CV Driver LD400-2H24V
Features
·Aluminium Casing
·Ultra-low start up temp -30°C
·Ultra-light and easy to install
·High efficiency up to 85%
·High reliability
·Wide input Voltage 180~264Vac
Technical Parameters
| Model | LD400-2H12V | LD400-2H24V | |
|
Input |
Efficiency | 85% | 86% |
| Voltage | 200-240VAC | ||
| Frequency | 50Hz | ||
| Current | Max 4.0A @ 230Vac | ||
| Inrush Current | Less than 70A/230Vac, cold start | ||
| Leakage Current | <0.75mA/240Vac | ||
|
Output |
Current | 33A | 16.7A |
| Voltage | 12VDC | 24VDC | |
| Power | 400W | ||
| Ripple & noise | 300mVp-p | 300mVp-p | |
| Output Voltage range | 22.8～25.2V | ||
| Voltage Tolerance | ±5% | ||
| Line Regulation | 1% | ||
| Load Regulation | 2% | ||
| Channel | 2 | ||
| Turn On Delay Time | 1.5S, 20mS@230Vac | ||
| Protection | Short Circuit | Hiccup mode, Auto-recovery | |
| Over Load | 110%～150% of rated load. | ||
| Safety | Withstand Voltage | Input-FG: 1500Vac or 2121Vdc, Input-Output: 1500Vac or 2121Vdc, Output-FG: 500Vac or 707Vdc | |
| Isolation Resistance | Input-FG: >100MΩ 500Vdc @25°C &70RH; I/P-O/P: >100MΩ 500Vdc @25°C &70RH; O/P-FG: >100MΩ 500Vdc @25°C &70RH | ||
|
Others |
Working Temp. | -30~+60°C, 20~90% | |
| Storage Temp.; Humidity | -30°C~+70°C, 10%~95%RH | ||
| Material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 40,000h@tc:65°C | ||
| Warranty Condition | 2 Years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 530g±5%/PCS; 50PCS/Carton; 28.86kg±5%/Carton; Carton Size: 360*290*315mm(L*W*H) | ||
| Dimension | 333*53*23mm(L*W*H) | ||
