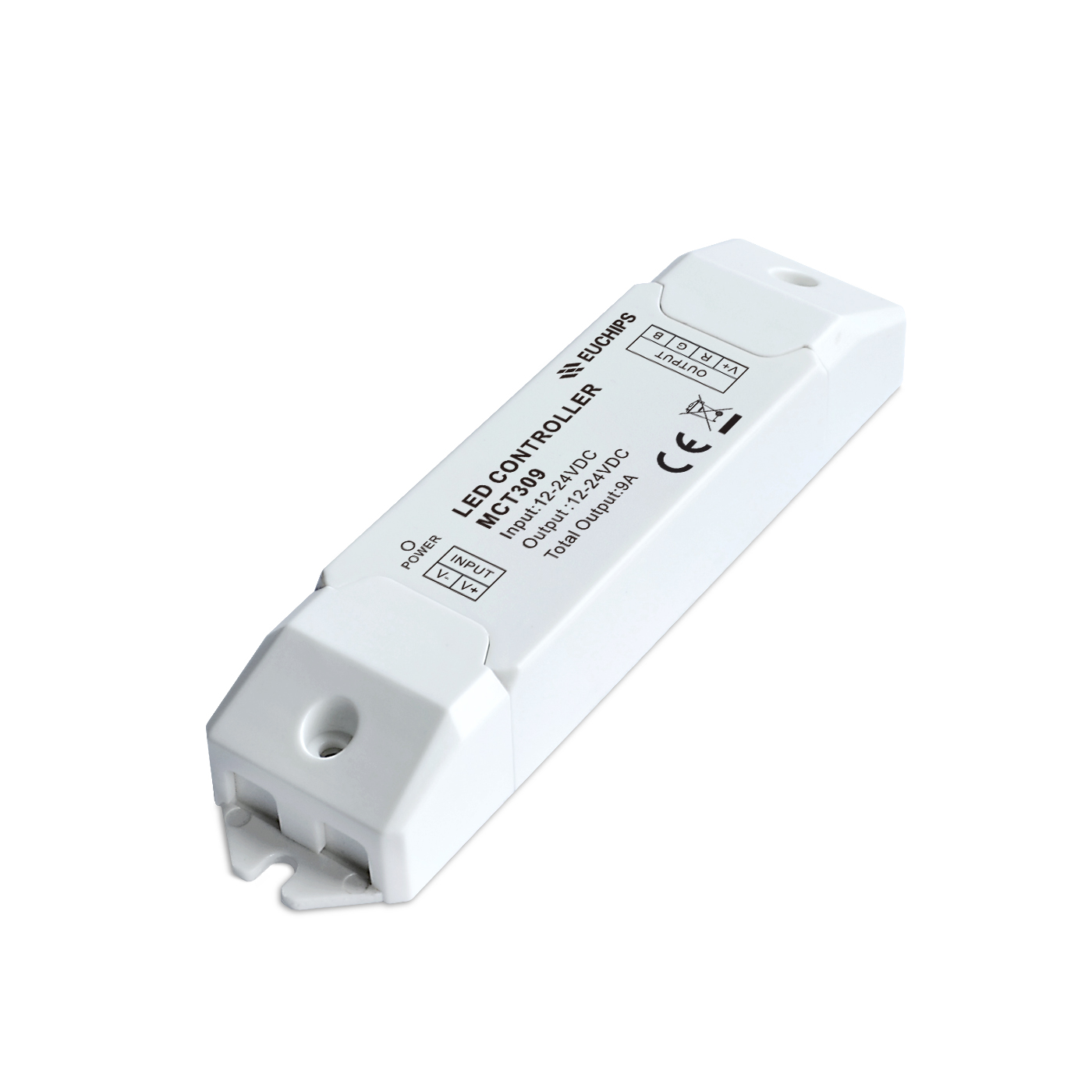

3A*3ch 2.4GHz 12-24VDC Wireless Controller MCT309
Feature
1. Using 2.4G RF remote control
2. Maximum effective distance of 20 m
3. constant voltage output（R/G/B），maximum output current 3A/ch
4. Memory function, can memory the state and parameter before the powered off
5. Support OCP,SCP,OPP
6. Pre-loaded with 17 modes (scenes)
7. Use for color control, brightness ,and speed regulation of the RGB lamp lights
8. Can be used with a variety of control devices, such as RC16, RC7,RC15, WIFI203 etc.
Technical Parameters
|
Item |
Paramaters |
|
Output channels |
3 channel |
|
Input voltage range |
12-24VDC |
|
Output voltage range |
12-24VDC |
|
Output current |
3A*3ch |
|
Protection |
SCP,OPP,OTP |
|
Mode |
17 |
|
Operational temp |
-20-50℃ |
|
Size |
128X30X19.2mm( L*W*H) |
|
Weight |
38g |
Remote RC16(Optional)
| Power | AAA battery * 2 |
| Remote Distance | 20 m |
| Wireless Frequency | 2.4GHz |
| Material | ABS |
| Dimension | 120*52.5*20.5 mm( L*W*H) |
| Weight | 54g |
Remote RC15(Optional)
| Power | AAA battery * 3 |
| Remote Distance | 20 m |
| Wireless Frequency | 2.4GHz |
| Material | ABS |
| Dimension | 113.5*55*21 mm( L*W*H) |
| Weight | 65g |
Remote RC7(Optional)
| Power | 3V button battery |
| Remote Distance | 20 m |
| Wireless Frequency | 2.4GHz |
| Material | PC+ABS |
| Dimension | 100*61.5*9 mm( L*W*H) |
| Weight | 35g |
