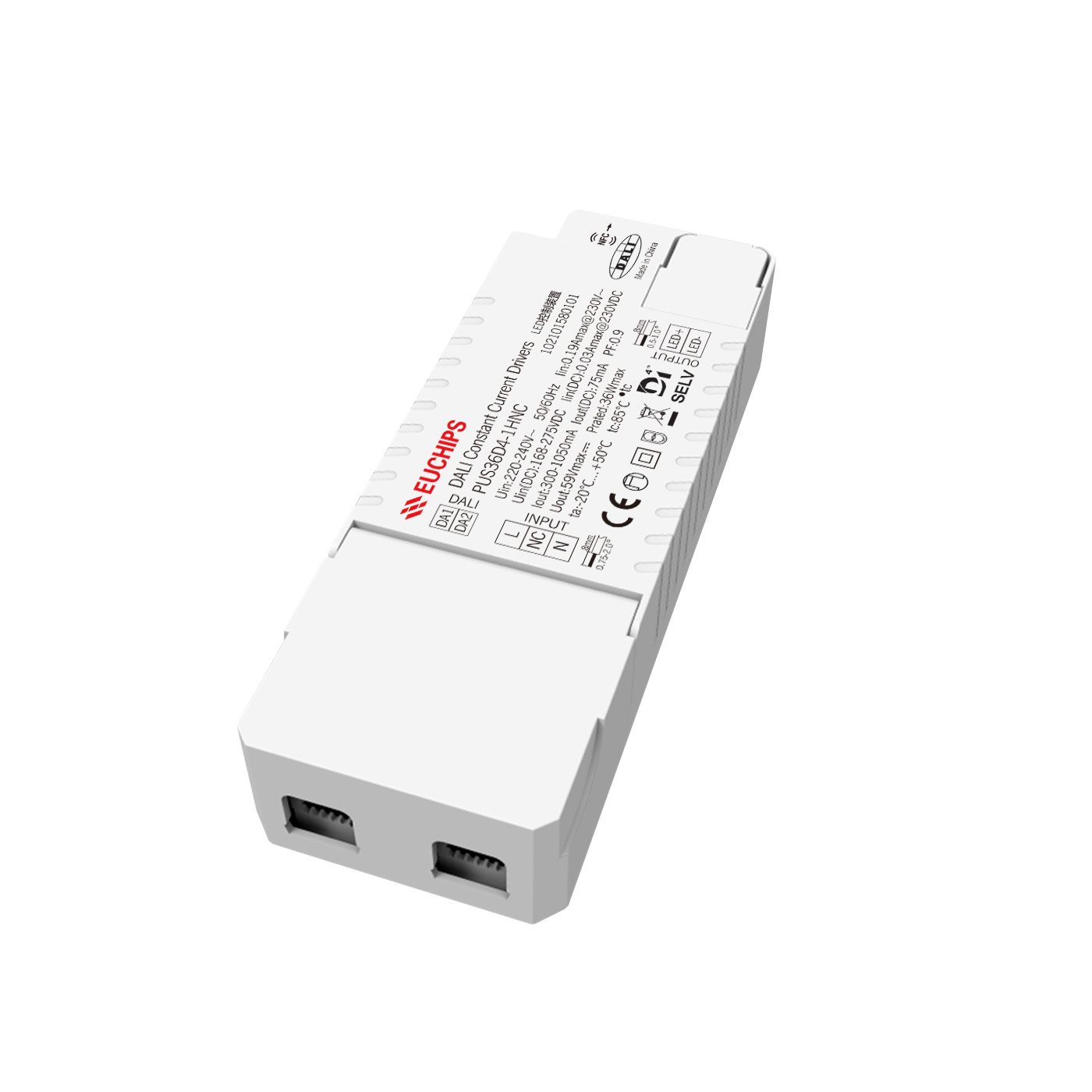

36W 300-1050mA(NFC)*1ch DALI CC Driver PUS36D4-1HNC
36W 300-1050mA(NFC)*1ch DALI CC Driver PUS36D4-1HNC
Advantages
• Enable interoperability with diverse wireless sensors/network systems
• Reduce complexity and cost of fixture by eliminating auxiliary components ordinarily re quired for powering sensors, switching fixture off and monitoring energy use
• interface to any suitable sensor and ease of adjustable drive current
Features
• Standard-compliant (ANSI C137.4 and DiiA) digital interface including:
- Integrated DALI bus power supply (Part 250)
- Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
• Energy metering and advanced diagnostics
• Continuous dimming down to 1%
• Drive current setting via NFC wireless programming
• 5-year limited warranty
Programming
Adjustable Light Output (ALO)
Adjustable Output Current (AOC)
Luminaire Maintenance
Luminaire (Fixture) Information (Luminaire Info)
Technical Parameters
| Model | PUS36D4-1HNC | |
| Input | Efficiency | >86%@230VAC, full load |
| Rated Voltage | 220-240VAC | |
| Voltage Range | 198~264VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.19A max@230VAC | |
| Power Factor | ≥0.9@230VAC, full load | |
| THD(full load) | ≤10%@230VAC | |
| Inrush Current(max) | Cold start, 21.6A@230VAC 132us | |
| Input voltage DC range | 186-275VDC | |
| Input current (DC) | 0.03A Max | |
| Output | Current Range | 300-1050mA(NFC) |
| Voltage Range | 24-54VDC | |
| Output Current (DC) | 100mA | |
| Output Power | 36W Max | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby power | ≤0.75W | |
| No load power | ≤0.75W | |
| No load output voltage | 60VDC max | |
| Turn on delay Time | ≤0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI 2.0 D4i |
| Dimming Range | 1-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short-circuit protection | Short circuit without output, troubleshooting results in normal output |
| Overload protection | Current drops, troubleshooting output is normal | |
| Over Current | Current drops, troubleshooting output is normal | |
| Safety& EMC | Surge | L-N: 1kV |
| Withstand Voltage | I/P-O/P:3000V, O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+50℃ |
| Storage Temp., Humidity | -40℃~80℃, 5%-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 135.5*50*26mm（L*W*H） | |
| Packing(weight) | Net weight: 140g±5%/PCS; 40PCS/Carton; 6.1kg±5%/Carton; Carton Size:—*—*—mm(L*W*H) | |
