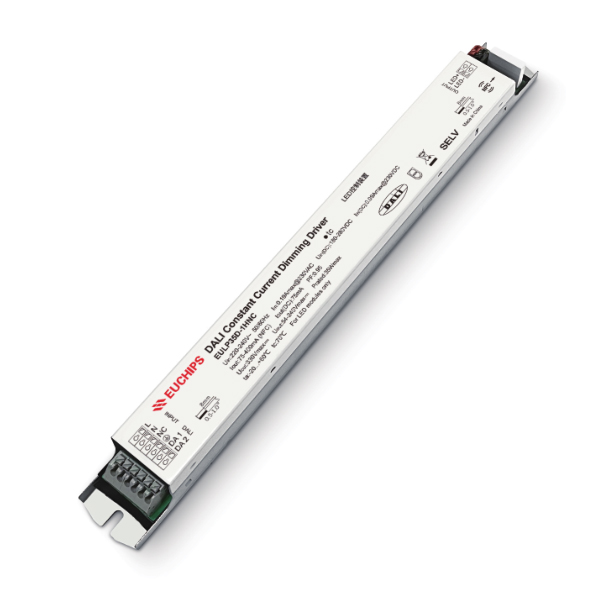

35W 75-400mA(NFC)*1ch DALI CC Driver EULP35D-1HNC
35W 75-400mA(NFC)*1ch DALI CC Driver EULP35D-1HNC
EULP35D-1WMC-0 is a 35W AC/DC constant current mode output LED driver. The current can be selected through NFC, and the driver complies with
the DALI standard protocol IEC 62386. It can be connected to the DALI main controller to achieve smooth dimming effect.
Features
· Meet DALI protocol IEC 62386
· Logarithmic dimming，dimming effect smooth, no flicker
· Protections: Over load, short circuit, over voltage, over Current
· Suitable for indoor LED lighting application, vapor light, and so on
• Drive current setting via NFC wireless programming
• 5-year limited warranty
Technical Parameters
| Model | EULP35D-1HNC | |
| Input | Efficiency | >91%@230VAC, full load |
| Rated Voltage | 220-240VAC | |
| Voltage Range | 198~264VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.19A max@230VAC | |
| Power Factor | ≥0.95@230VAC, full load | |
| THD(full load) | ≤10%@230VAC | |
| Inrush Current(max) | Cold start, 10A@230VAC 280us | |
| Input voltage DC range | 180-280VDC | |
| Input current (DC) | 0.09A Max | |
| Output | Current Range | 75-400mA(NFC) |
| Voltage Range | 54-240VDC | |
| Output current DC | 75mA | |
| Output Power | 35W Max | |
| Current | 1 | |
| Current Tolerance | ±5% | |
| Standby power | ≤0.5W | |
| No load power | 0.2-3W (Change) | |
| No load output voltage | 330VDC max | |
| Turn on delay Time | ≤0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI 2.0 |
| Dimming Range | 1-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker-free | |
| Protection | Short-circuit protection | Short circuit without output, troubleshooting results in normal output |
| Overload protection | Current drops, troubleshooting output is normal | |
| Over Current | Current drops, troubleshooting output is normal | |
| Over Voltage | When the output voltage is 250VDC, the output is turned off. After troubleshooting, the output is normal | |
| Safety& EMC | Surge | L-N: 1kV L&N-G: 2kV |
| Withstand Voltage | I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~60℃ |
| Storage Temp., Humidity | -40 ℃~80℃ 5%-90%RH | |
| tc | 70℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 280*30*21mm（L*W*H） | |
| Packing(weight) | Net weight: 185g±5%/PCS; 50PCS/Carton; 9.7kg±5%/Carton; Carton Size:498*334*130mm(L*W*H) | |
