35W 600/700/800/900mA*1ch DALI CC Driver EULP35D-1WMC-0
35W 600/700/800/900mA dali constant current led driver EULP35D-1WMC-0

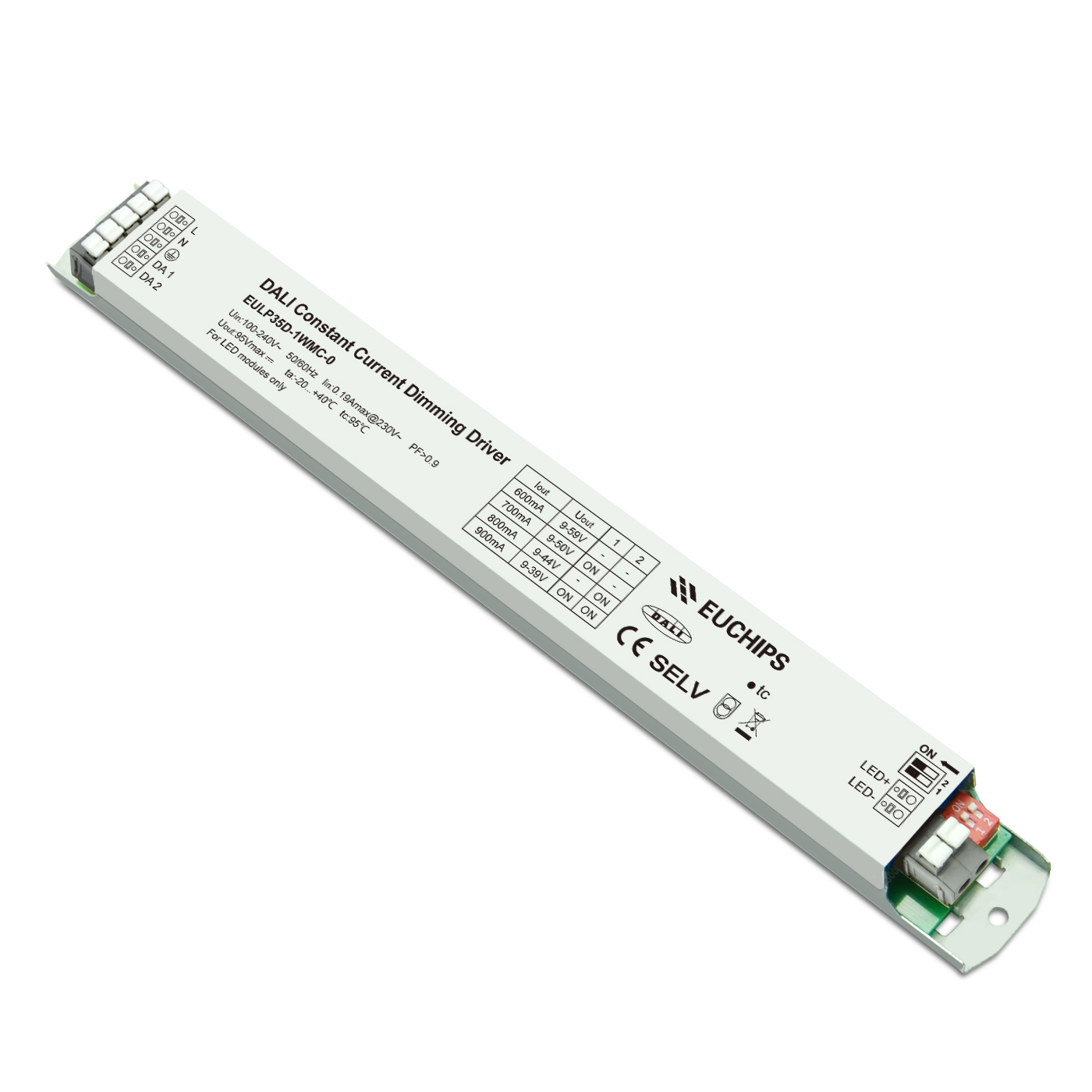

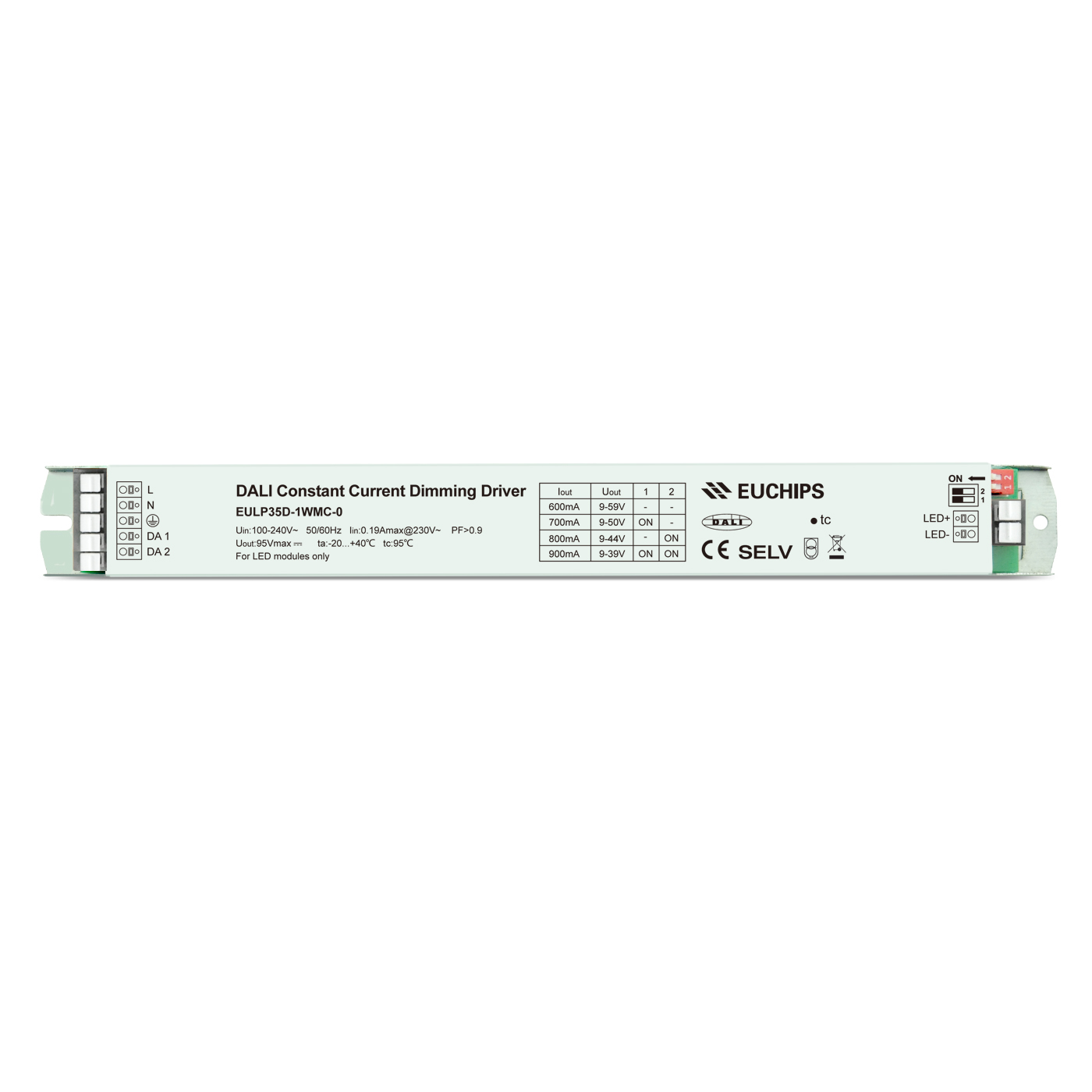

EULP35D-1WMC-0 is a 35W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386 EULP35D-1WMC-0 can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI protocol IEC 62386
3. Support Touch DIM function
4. Wide input voltage of 100VAC ~ 240VAC
5. High efficiency up to 85%
6. Built-in active PFC function
7. Liner dimming mode，dimming effect smooth, no flicker
8. Protections: Over load, short circuit
9. Suitable for indoor LED lighting application, such as down light, panel light, tri-proof light, and so on
Technical Parameter
| Model | EULP35D-1WMC-0 | ||
| Input | Efficiency | >85%@230VAC, Full load | |
| Voltage | 100VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.9@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.19Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,39A(twidth=28.9us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
600mA/9-45VDC/27W 700mA/9-45VDC/31.5W 800mA/9-44VDC/35.2W 900mA/9-39VDC/35.1W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 55Vdc | ||
| Function | Dimming Mode | DALI/Touch DIM | |
| Dimming Range | 1-100% Dimming to off | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Safety& EMC |
Surge | L-N:500V | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | ||
| Safety Standards | EN61347, GB19510 | ||
| EMC Eission | EN50515, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | Metal | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 230g±5%/PCS; 50PCS/Carton; 12kg±5%/Carton; Carton Size: 502*338*149mm(L*W*H) | ||
| Dimension | 280*30*21mm(L*W*H) | ||
