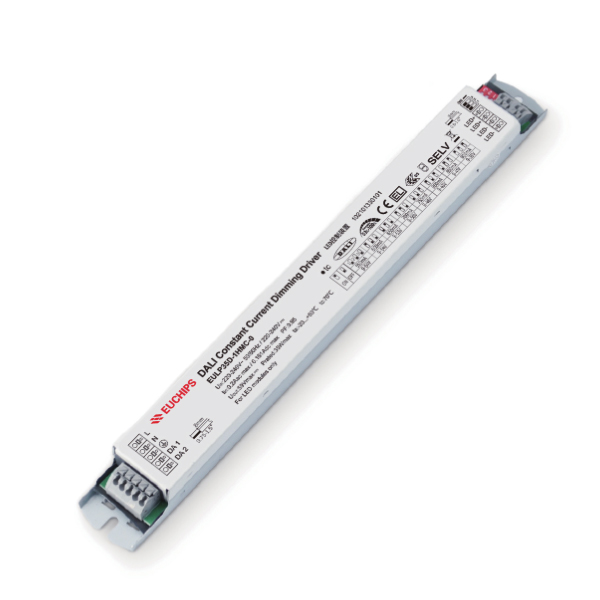

35W 550~900mA*1ch DALI CC Driver EULP35D-1HMC-0
35W 550~900mA*1ch DALI CC Driver EULP35D-1HMC-0
EULP35D-1HMC-0 is an AC to DC LED Driver with adjustable output current It can be selected by dip switch, which conforms to Dali standard protocol iec62386. Connect DALI master Control or touch dim can achieve smooth dimming effect.
Features
· Single channel constant current output, multistage current optional
· Support DALI software to adjust output current
· Comply with Dali protocol standard iec62386
· Support touch dim function
· Built in active PFC function
· Short circuit , Over load, Over Voltage protection
· It is suitable for LED indoor lamps, such as downlight, panel lamp, three prevention lamp, etc
Technical parameters
| Model | EULP35D-1HMC-0 | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥85%@230VAC, full load | |
| PF | ≥0.95@230VAC, full load | |
| Current | 0.2Amax@230VAC | |
| THD | < 10% @ 230VAC, full load | |
| Inrush current | Cold start , 8.2A@230VACC 42.2us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | |
| Output | Channel | 1 |
| Voltage | 9~54VDC | |
| Current/Voltage/Power | 550mA/9-54V/29.7W 600mA/9-54V/32.4W 650mA/9-53V/34.45W 700mA/9-50V/35W 750mA/9-46V/34.5W 800mA/9-43V/34.4W 850mA/9-41V/34.85W 900mA/9-38V/34.2W |
|
| Current Accuracy | ±5% | |
| Ripple current | ＜3% | |
| Frequency | NA | |
| Ripple Voitage | NA | |
| No load output voltage | 59VDC max | |
| Function | Dimming type | DALI 2.0 |
| Dimming range | 0.1%-100% | |
| Dimming curve | Logarithm / linearity | |
| Flicker | No stroboscopic | |
| Protection | Over Voltage | The current drops and the output is normal after troubleshooting |
| Over load | Reduce the current burping protection, eliminate the fault, and the output is normal | |
| Short circuit | There is no output in case of short circuit, and the output is normal after troubleshooting | |
| Safety&EMC | Surge | L-N 1000VAC L,N-PE 2000VAC |
| Withstand Voltage | Input to output 3750VAC / 1min / < 5mA output to signal 1500vac / 1min / < 5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
