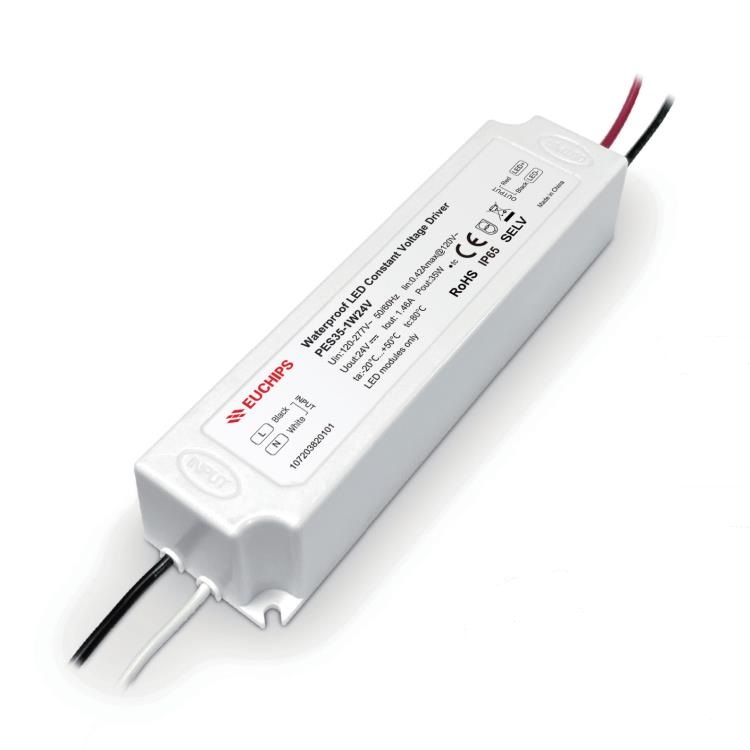

35W 24VDC Non-dimmable Waterproof CV Driver PES35-1W24V
35W 24VDC Non-dimmable Waterproof CV Driver PES35-1W24V
Features
· Insolated PC design
· Isolated design,safe and reliable
· Protections: Short circuit, Over load, over current
· Protection grades is as high as IP65
· 5 years warranty
Technical Parameters
| Model | PES35-1W24V | |
|
Input |
Efficiency | ≥83%@120VAC, full load ≥85%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.42Amax@120VAC 0.2Amax@277VAC | |
| PF | ≥0.95@120VAC, full load ≥0.9@277VAC, full load | |
| THD | <10%@120VAC, full load <20%@277VAC, full load | |
| Inrush Current | Cold start,15.2A@120VAC 254us Cold start,30A@277VAC 284us | |
| No load power | <0.5W | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Current | 1.46A |
| Voltage | 24VDC | |
| Power | 35W | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Ripple Voltage | ±3% | |
| No load output voltage | 25.2VDC max | |
| Protection | Short Circuit | Short circuit without output, troubleshooting results in normal output |
| Over Load | Reduce current hiccup protection, troubleshooting output normal | |
| Over Current | Reduce current hiccup protection, troubleshooting output normal | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510, UL8750 | |
| EMC Emission | EN55015，FCC Part 15 Class B | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 80℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 280g±5%/PCS; 40PCS/Carton; 11.7kg±5%/Carton; Carton Size: 350*264*155mm(L*W*H) | |
| Dimension | 150*40*30mm(L*W*H) | |
