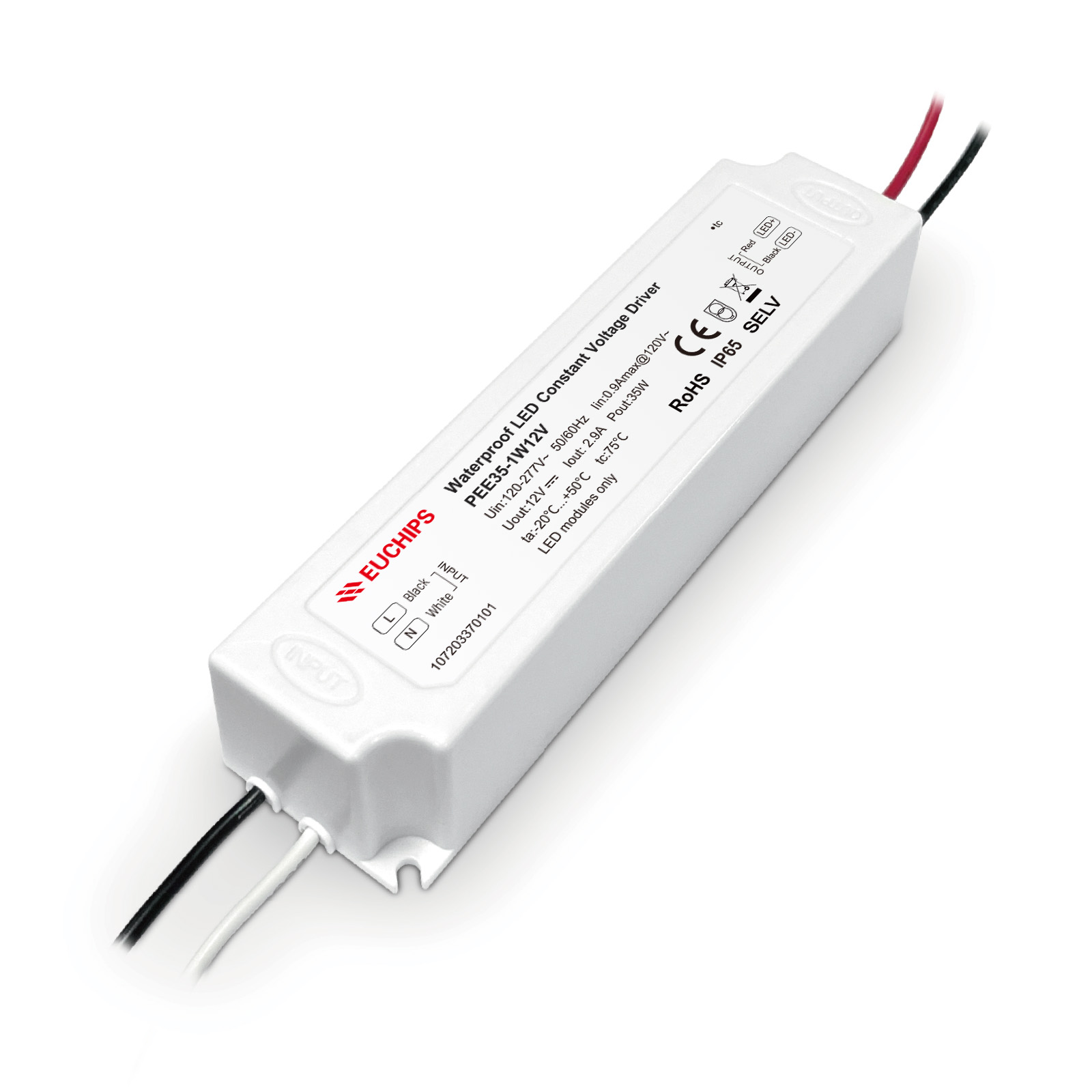

35W 12VDC Non-dimmable Waterproof CV Driver PEE35-1W12V
35W 12VDC Non-dimmable Waterproof CV Driver PEE35-1W12V
Features
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
| Model | PEE35-1W12V | |
| Input | Efficiency | ≥85%@230VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.9Amax@120VAC | |
| No load power | <0.5W | |
| PF | ≥0.5@120VAC, full load | |
| Inrush Current | Cold start,75A@230VAC 250us | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
| Output | Current/Voltage/Power | 2.9A/12VDC/35W |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Ripple Voltage | ±3% | |
| No load output voltage | 12.6VDC max | |
| Protection | Short circuit | Yes, the troubleshooting output is normal |
| Over load | Yes, the troubleshooting output is normal | |
| Over Current | Yes, the troubleshooting output is normal | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | EN61347-2-13 / EN61347-1 / UL1310 | |
| EMC | EN55015 / FCC Part 15 Class B | |
| Others | Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 75℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50 000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 245g±5%/PCS; 40PCS/Carton; 10.3kg±5%/Carton; Carton Size: 360*249*148mm(L*W*H) | |
| Dimension | 150*37*30mm(L*W*H) | |
