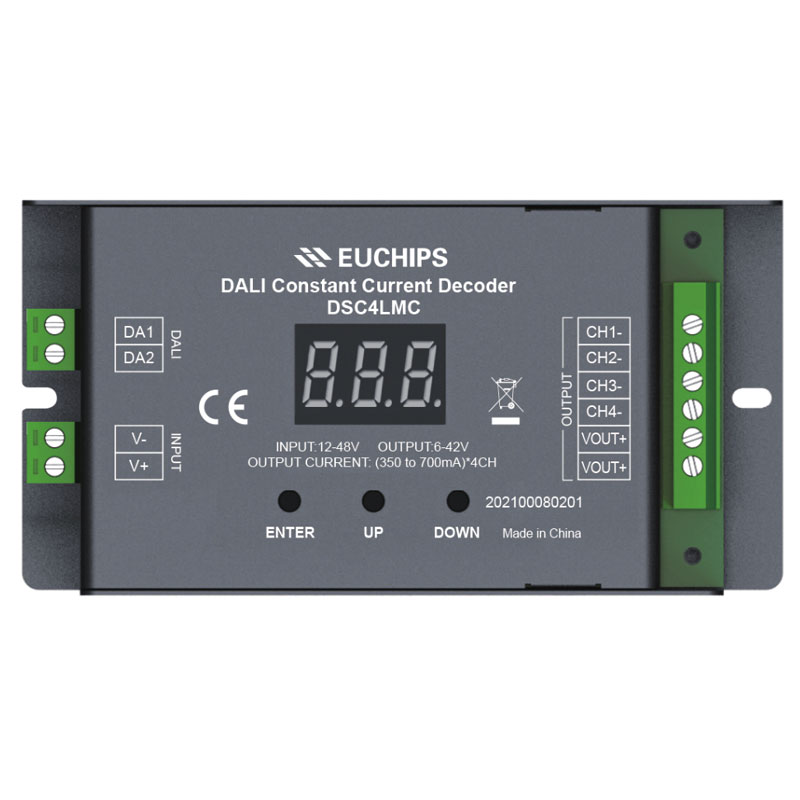

350~700mA*4ch DALI Constant Current Decoder DSC4LMC
350/400/450/500/550/600/650/700mA*4ch DALI Constant Current Decoder DSC4LMC
Features
1. DALI Digital control input, Dimming control LED module
2. Addressing output channel
3. Dimming range is from 0.4-100%
4. Used for DC Power supply
5. Short circuit protection, Over load protection
6. Security level : 2
7. Four channels 6-42VDC constant current output
Technical Parameters
| Model | DSC4LMC | |
| Input | Efficiency | 93%@48VDC, Full load |
| Voltage | 12VDC-48VDC | |
| Standby power | <0.5W | |
| Output | Current | 350/400/450/500/550/600/650/700mA |
| Voltage | 6-42VDC | |
| Power | 120W (Max)@48V input 4 channel Full load | |
| Channel | 4 | |
| Current Tolerance | ±5% | |
| No load output voltage | 42V Max | |
| Function | Dimming Type | DALI |
| Dimming Range | 0.4%-100% | |
| Protection | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Load | The output current decreases and, recovers automatically when the load is reduced | |
| Others | Working Temp. | -20℃~50℃ |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000times | |
| Packing(weight) | Net weight: 230g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) | |
| Dimension | 116*54*35mm(L*W*H) | |
