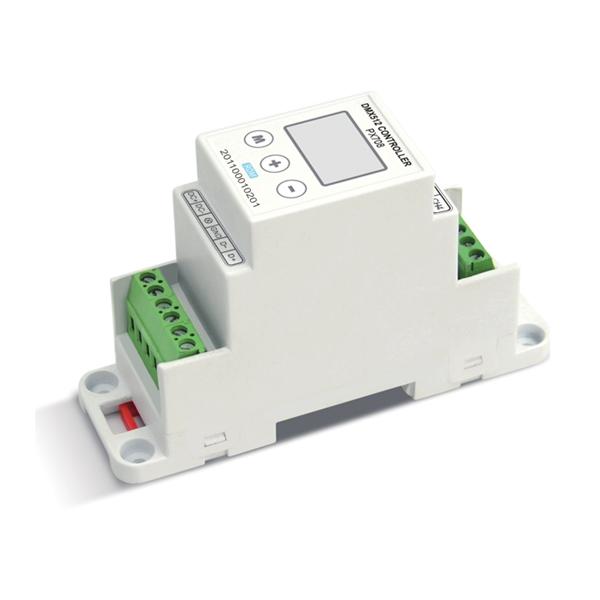

350/500/700mA*8ch DMX512/RDM Constant Current Decoder PX708
350/500/700mA*8ch DMX512/RDM Constant Current Decoder PX708
Features
· Meet DMX512/1990, RDM/2009 international standard protocol
· 4 output channels, output current 350/500/700m A per channel
· Can easily set DMX address by button
· With the light color selected mechanism, and be able to control the light with 1~4 colors
· For customer setup and use easily, the default address code is 1
Technical Parameters
| Channels | 4 channels |
| Input Voltage | 12-48V DC |
| Output Voltage | 1-42V DC |
| Output Current | 350/500/700m A per channel |
| Output Power | 28W / CH MAX. 110W |
| Protection | Short-circuit protect,Over current protect, Over temp protect |
| Dimension | 112(L)×35(W)×67(H) mm |
| N.G. | 90g |
| Operation Temperature | -30 - 50℃ |
