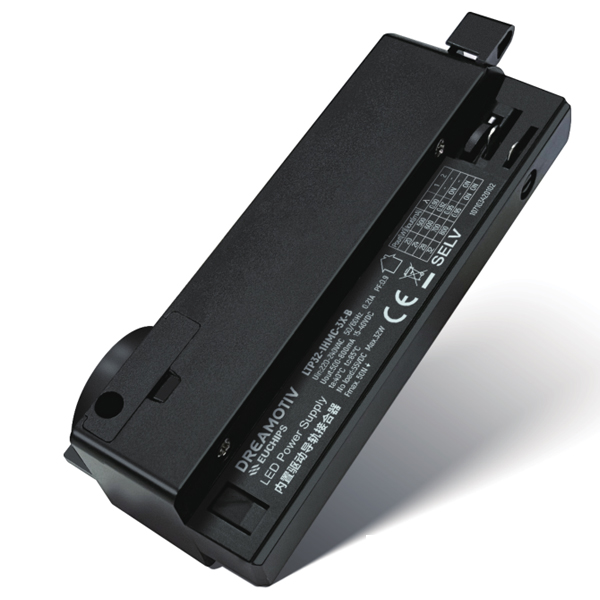

32W 500~800mA Non-dimmable CC Driver LTP32-1HMC-3X-B W G
32W 500~800mA Non-dimmable CC Driver LTP32-1HMC-3X-B W G
Features
· Constant Current Track Driver, High P, Flicker-free
· High efficiency, full load efficiency ≥86%
· Strong adaptation, can be adapted to domestic and foreign common guide rails
· There are two series of fixed current and dip switch current, Output current range 500-800mA
· Protection grade Class II, 5 years warranty
Techncial Parameters
| Model | LTP32-1HMC-3X-B W G | |
|
Input |
Efficiency | ≥86%@230VAC, Full load |
| Rated Input Voltage | 220VAC-240VAC | |
| Range of Input Voltage | 198-264 VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 500mA:0.15A; 600mA:0.16A; 700mA:0.19A; 800mA:0.21A (198VAC，full load) | |
| Power | 500mA:25W; 600mA:30W; 700mA:34W; 800mA:39W (220VAC,full load) | |
| Power Factor | 500mA:0.90; 600mA:0.92; 700mA:0.95; 800mA:0.95 (220VAC,full load) | |
| No-load Power Consumption | ≤0.5W @230VAC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 500mA/ 15-40V/ 7.5-20W 600mA/ 15-40V/ 9-24W 700mA/ 15-40V/ 10.5-28W800mA/ 15-40V/ 12-32W |
| No Load Voltage | 55VDC Max. | |
| Current Ripple(< 120 Hz) | 5% (Imax-Imin)/(Imax+Imin) | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Current Accuracy | ±5% | |
| Started Delay Time | ≤0.5S (230VAC，full load) | |
|
Protection |
Short Circuit Protection | Auto Recovery |
| Overload Protection | Auto Recovery | |
| No-load Protection | Auto Recovery | |
| Insulation voltage | I/P to O/P , 3KVac/1min | |
| Insulation resistance | >100M ohm @ 500VDC | |
| Leakage current | < 250µA, I/P to O/P or I/P to PE @230V input | |
|
Standards |
Safety Standards | GB 7000.1-2015 GB/T 13961-2008 GB /T17743-2017 GB 17625.1-2012GB 19510.1-2009 GB 19510.14-2009 |
| EMC Standards | EN55015:2013/A1:2015,EN61000-3-2:2014, EN61000-3-3:2013,EN61547:2009 | |
| Performance | EN62384 | |
| Surge | L-N/2KV | |
|
Environment |
Ta/Operation Temperature | 40℃ |
| Ts/Storage Temperature | -30….+85℃ | |
| Tc/Enclosure Temperature | 85℃ | |
| Humidity | 10%. 85%RH | |
| Atmosphere | 86-108KPa | |
| Construction | Connection Method | Push-in Terminal |
| Installation | Independent | |
| SEC Wire preparation | 0.5-1.5² | |
| Dimension | 118*34.4*45mm (L*W* H) | |
| Others | RoHS | Complied to 2011/65/EU |
| Life Time | 50000h Ta/Tc | |
| Warranty | 5years(≤30000h) F.R. <10000ppm | |
| Remark | 1. All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature. 2.LED Driver is a component of the luminaires, Luminaires and wire layout will affect the EMC, please check the EMC with end products again. |
|
