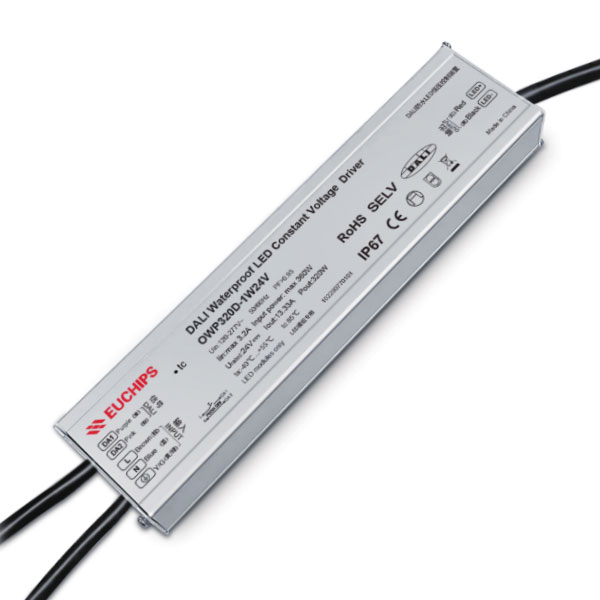

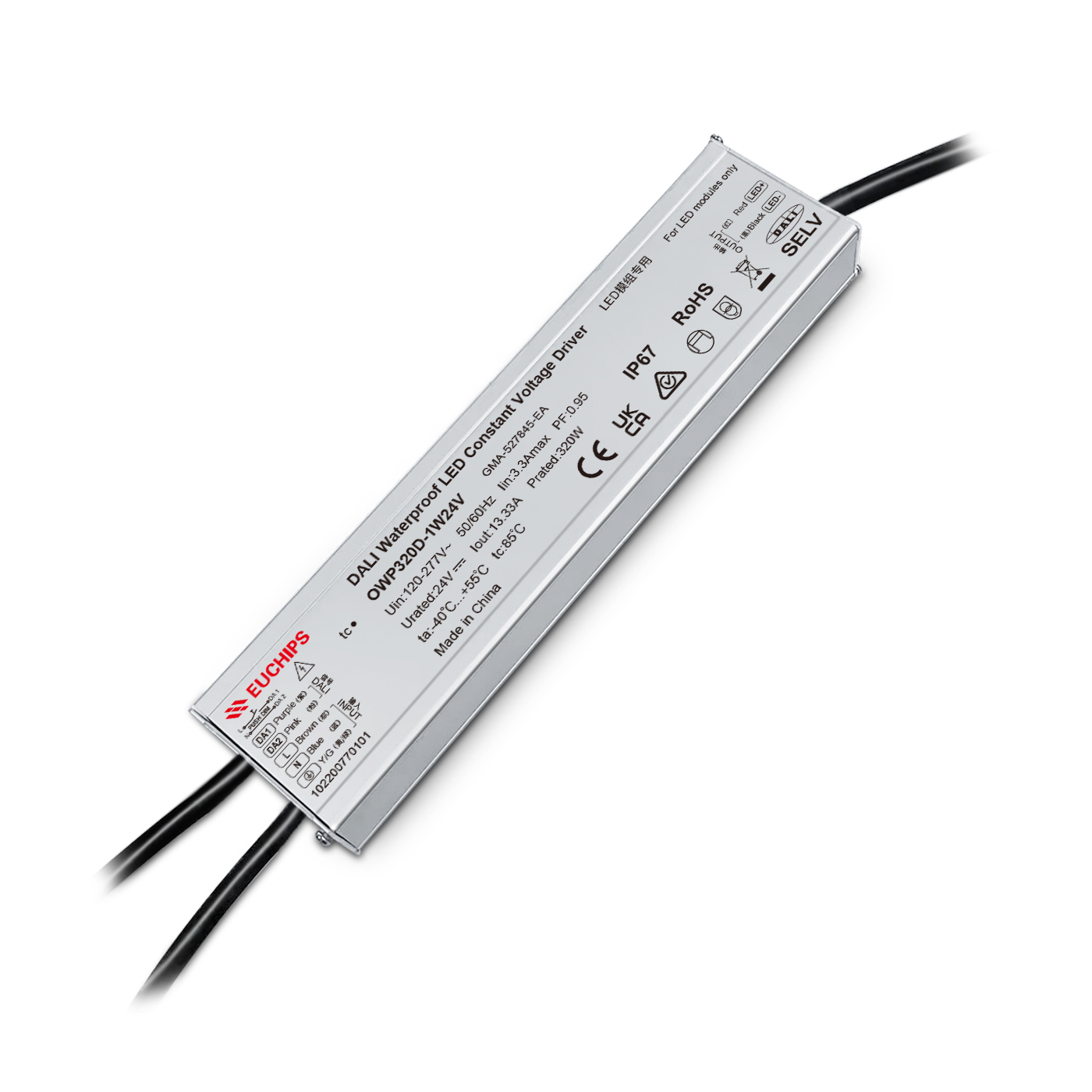

320W 24VDC DALI Waterproof CV Driver OWP320D-1W24V
320W 24VDC Waterproof DALI Constant Voltage Driver OWP320D-1W24V
OWP320D-1W24V is a dimming driver that can provide constant voltage output. Complies with DALI standard protocol IEC 62386. LED driver featuring the dimming by DALI master/Touch DIM(PushDIM) switch, with smooth dimming curve and are flicker free.
Features
·Single channel output with 24V CV direct current
·Wide voltage input range from 120VAC to 277VAC
·Active PFC, full power
·Meet DALI protocol IEC 62386-207
·Support Touch DIM(Push DIM) function
·Ultra-thin design, Waterproof level IP67, High effciency up to 93%
·Dimming effect smooth, flicker free
·Protections: Short circuit, over load, over voltage, lightning protection
·suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameters
| Model | OWP320D-1W24V | |
| Input | Voltage | 120VAC-277VAC |
| Frequency | 50~60Hz | |
| Efficiency | ≥93%@230VAC, Full load | |
| PF | >0.95@230VAC, Full load | |
| THD | ≤10%230VAC, Full load | |
| Current | 3.2Amax@120VAC | |
| Inrush Current | Cold start,20.8A@230VAC 2.12ms | |
| Output | Channel | 1 |
| Direct voltage | 24VDC | |
| Rated current | 13.33A | |
| Rated Power | 320W | |
| Voltage Tolerance | ±5% | |
| No load output voltage | 25VDC MAX | |
| Standby power | <0.5W | |
| Start delay | <0.75s, at230Vac (when lights start to come on) | |
| Protection | Short Circuit | Self-recovery after removal |
| Over load | Self-recovery after removal | |
| Safety & EMC | Surge | L-N 6KV L-PE 10KV N-PE 10KV |
| Withstand Voltage | Input/output: 3750Vac/1min/ | |
| Safety standards | EN61347, GB19510 | |
| EMI Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Function | Dimming mode | DALI/Touch DIM(Push DIM) |
| Dimming range | 0.1%-100% | |
| DALI standard | IEC62386-101, IEC62386-102, IEC62386-207 | |
| Others | Working Temp. | -40℃~+55℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ | |
| Material | Aluminum housing | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 1075g±5%/PCS; 10PCS/Carton; 11.25kg±5%/Carton; Carton Size: 316*202*194mm(L*W*H) | |
| Dimension | 280*63*33mm(L*W*H) | |
