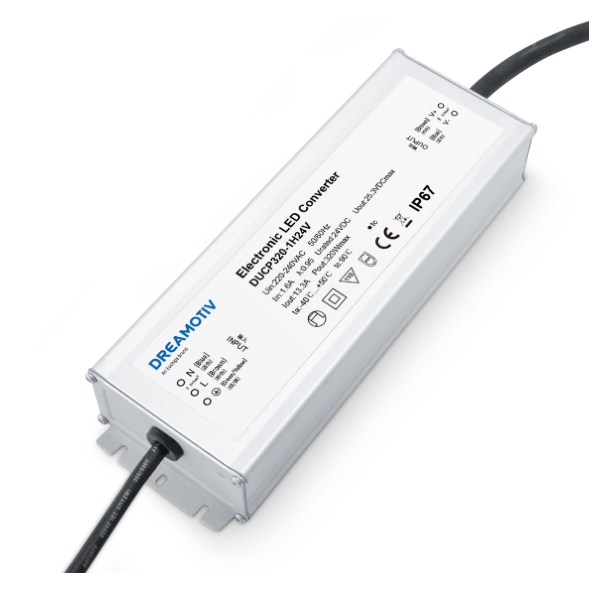

320W 24VDC Non-Dimmable Waterproof CV Driver DUCP320-1H24V
320W 24VDC Non-Dimmable CV Driver DUCP320-1H24V
Features
· Constant voltage output
· Class I
· SELV
· IP67
· Independent
Technical Paramaters
| Model | DUCP320-1H24V | ||
| Input | Efficiency | 93%@230VAC,Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Factor | 0.95@230VAC, full load | ||
| THD(full load) | 20%@230VAC, Full load | ||
| AC Current(max) | 1.9A | ||
| Inrush Current(max) | TBD | ||
| Output | Current(mA) | 13.3A | |
| Voltage (VDC) | 24VDC | ||
| Power(W) | 320W | ||
| Channel | 1 | ||
| Load regulation | 5% | ||
| Line regulation | 1% | ||
| Protection | Short Circuit | Protected, no damage to driver | |
| Output Open load | Output voltage limied to Vo.max | ||
| Too High Ambient Temperature | Protected by built-in thermal protection in controller IC | ||
| Output Over Current | Output power should be limited and no damage to driver | ||
|
Safety& EMC |
Electric strength | In-Out | 3750Vrms @50Hz/60Hz and be applied for 1 min |
| n-GND | 1500Vrms | ||
| Leakage Current Test | 0.6mA | ||
| Insulation Resistance Test | 2MΩ 500Vd.c. for 1min, For SELV part is 100 Vd.c. | ||
| Surge | L-N | 6 KV | |
| L,N-G | 6 KV | ||
| Safety Standards | IEC 61347-1, IEC 61347-2-13 | ||
| EMC | EN55015/CISPR15, EN55015/CISPR15,ed7.1, IEC/EN 61000-3-2, EN/IEC 61547, EN/IEC 61000-4-2, EN/IEC 61000-4-3,EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-6, EN/IEC 61000-4-11 | ||
|
Others |
Ambient temperature | -40℃ ~50℃ | |
| Operation Humidity | 10-90% H.op | ||
| tc | 90℃ | ||
| Housing Material | Aluminium | ||
| IP Rating | IP67 | ||
| Switching cycles | 500Hrs,@ 25℃ 0.5min on /0.5min off cycle | ||
| Premature failure | 10%@1000hours | ||
| Packing(weight) | Net weight: TBD g±5%/PCS; PCS/Carton; kg±5%/Carton; Carton Size: mm(L*W*H) | ||
| Dimension | 259*94*49mm（L*W*H） | ||
