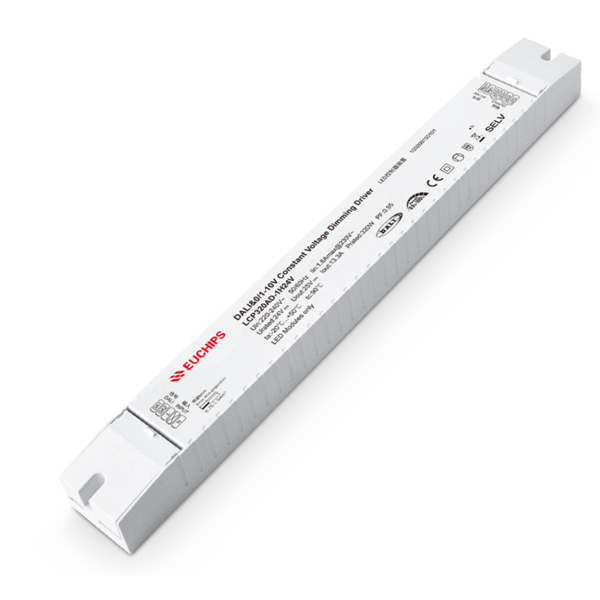

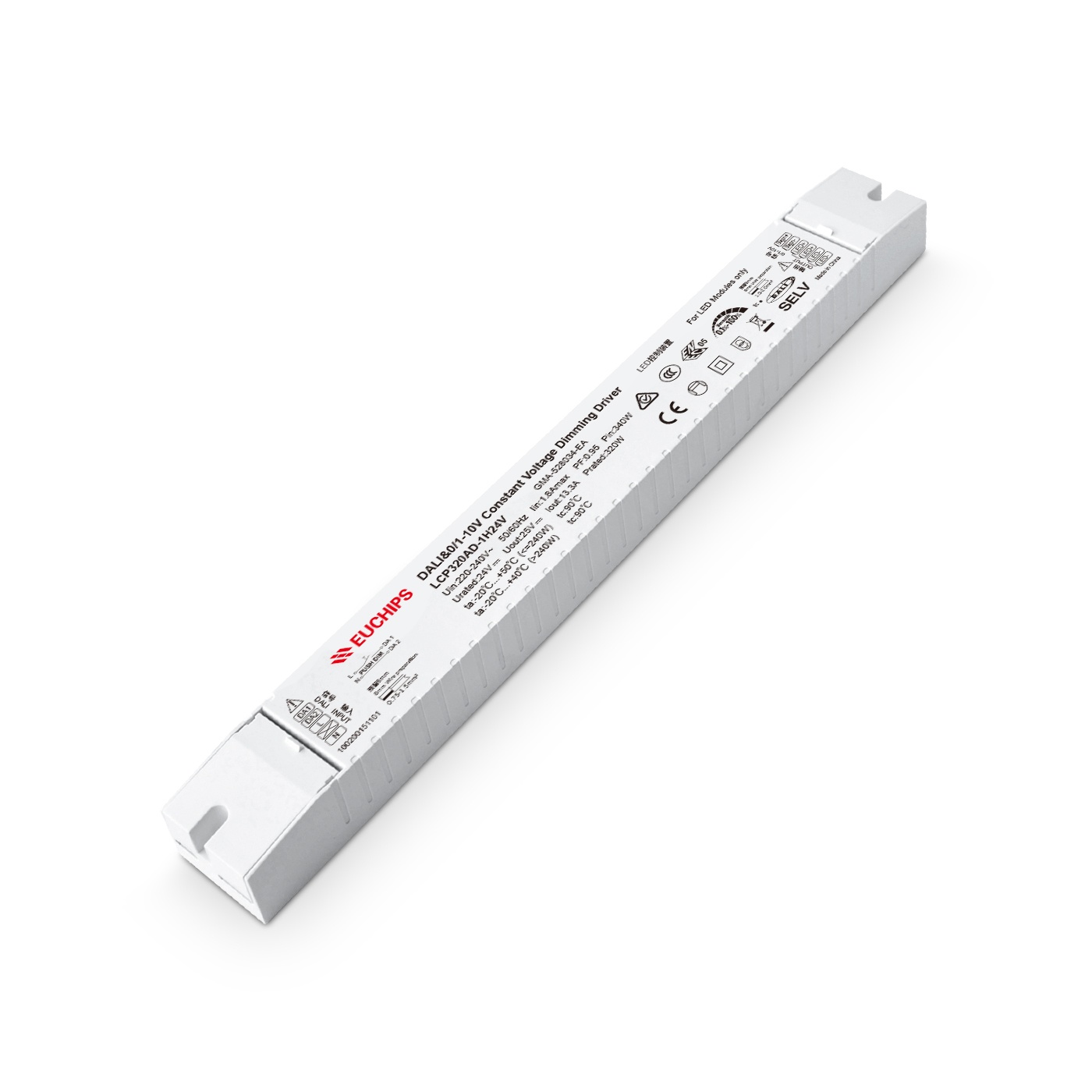

320W 24VDC DALI&0/1-10V CV Driver LCP320AD-1H24V
320W 24VDC DALI&0/1-10V CV Driver LCP320AD-1H24V
LCP320AD-1H24V is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,0/1-10V active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,13.3A Max
· Meet DALI protocol IEC 62386
· High input voltage of 220VAC ~ 240VAC
· Dimming effect smooth, no flicker
· Over load protection; short circuit protection
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LCP320AD-1H24V | |
| Input | Efficiency | ≥92%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 1.6Amax@230VAC | |
| Standby power | <1W | |
| Inrush Current(max) | Cold start,80A@230VAC | |
| Output | Current(A)/Voltage (VDC) Power(W) | 13.3A/24VDC/320W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Turn on delay Time | 0.8s, at230Vac (When the light begins to shine) | |
| Ripple Voitage | 3% | |
| Function | Dimming Type | DALI/0&1-10V/PWM/PUSH |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over load | Close the output, recovers after fault condition is removed |
| Short Circuit | Close the output, recovers after fault condition is removed | |
| Safety& EMC | Surge | L-N: 1.2KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA, O/P-DIM( Signal port ): 1500Vac/1min/<5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| EMC Eission | EN55015 | |
| Safety Standards |
EN61347, GB19510 |
|
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 630g±5%/PCS; 25PCS/Carton;16.2kg±5%/Carton; Carton Size:377*241*196mm(L*W*H) | |
| Dimension | 360*40*32mm（L*W*H） | |
