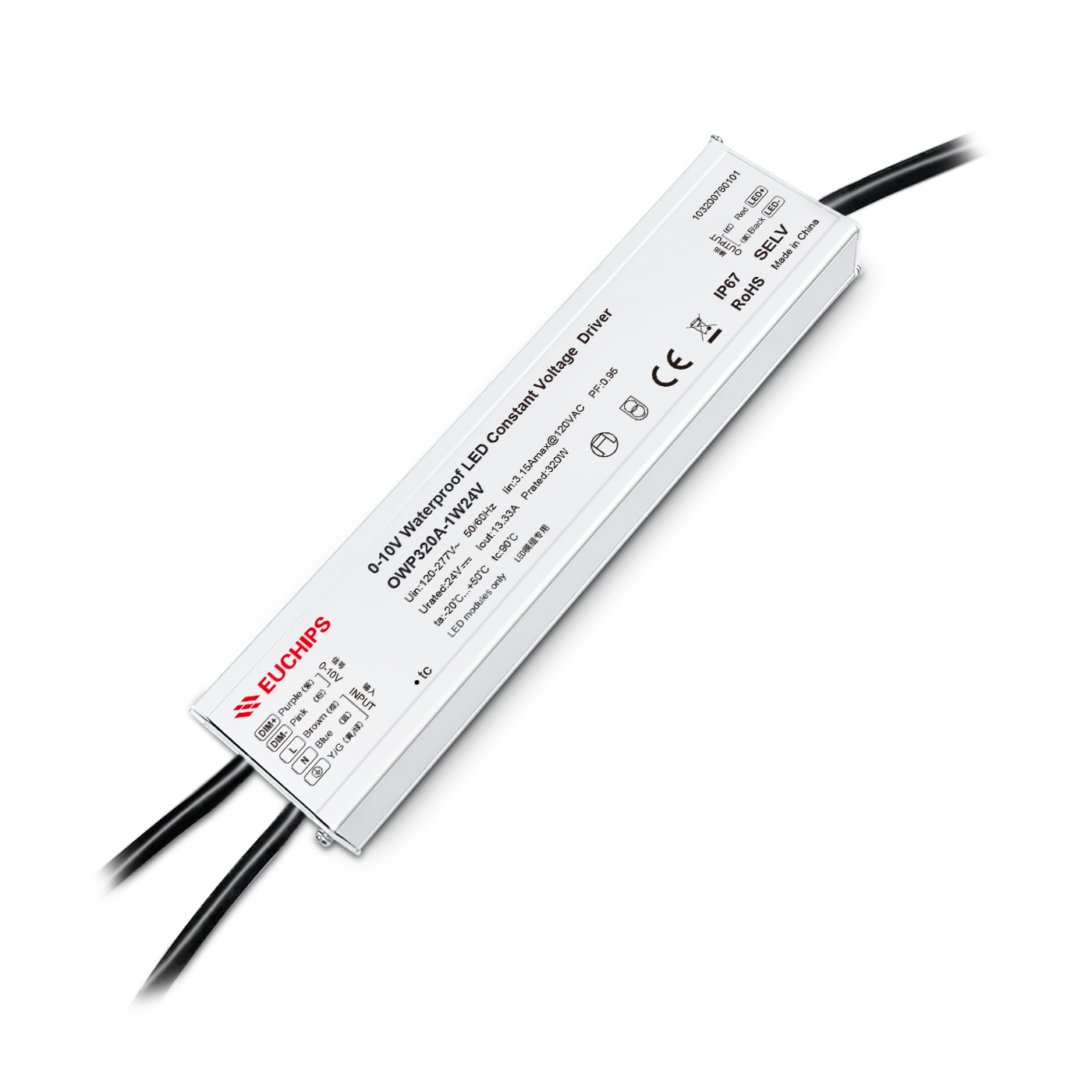

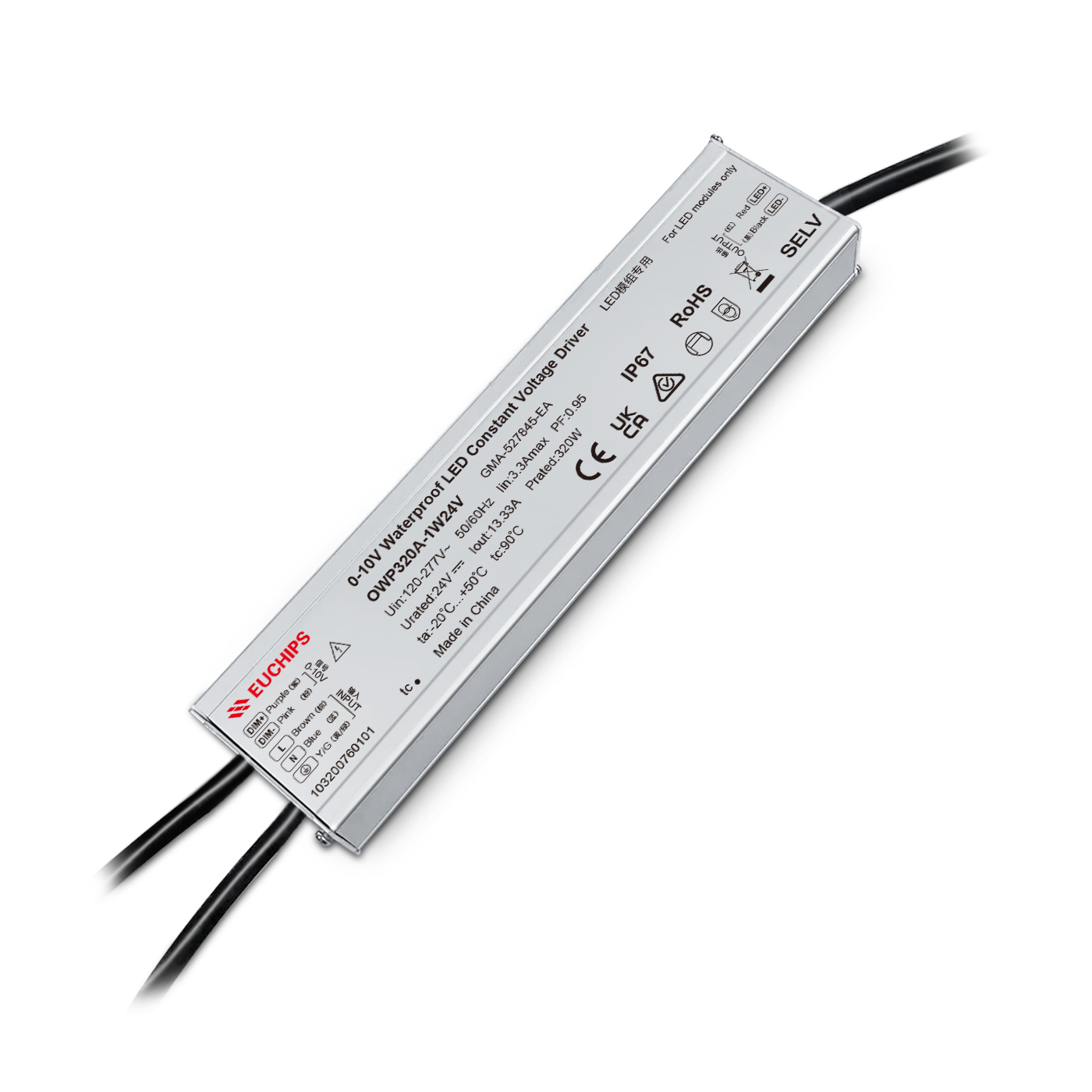

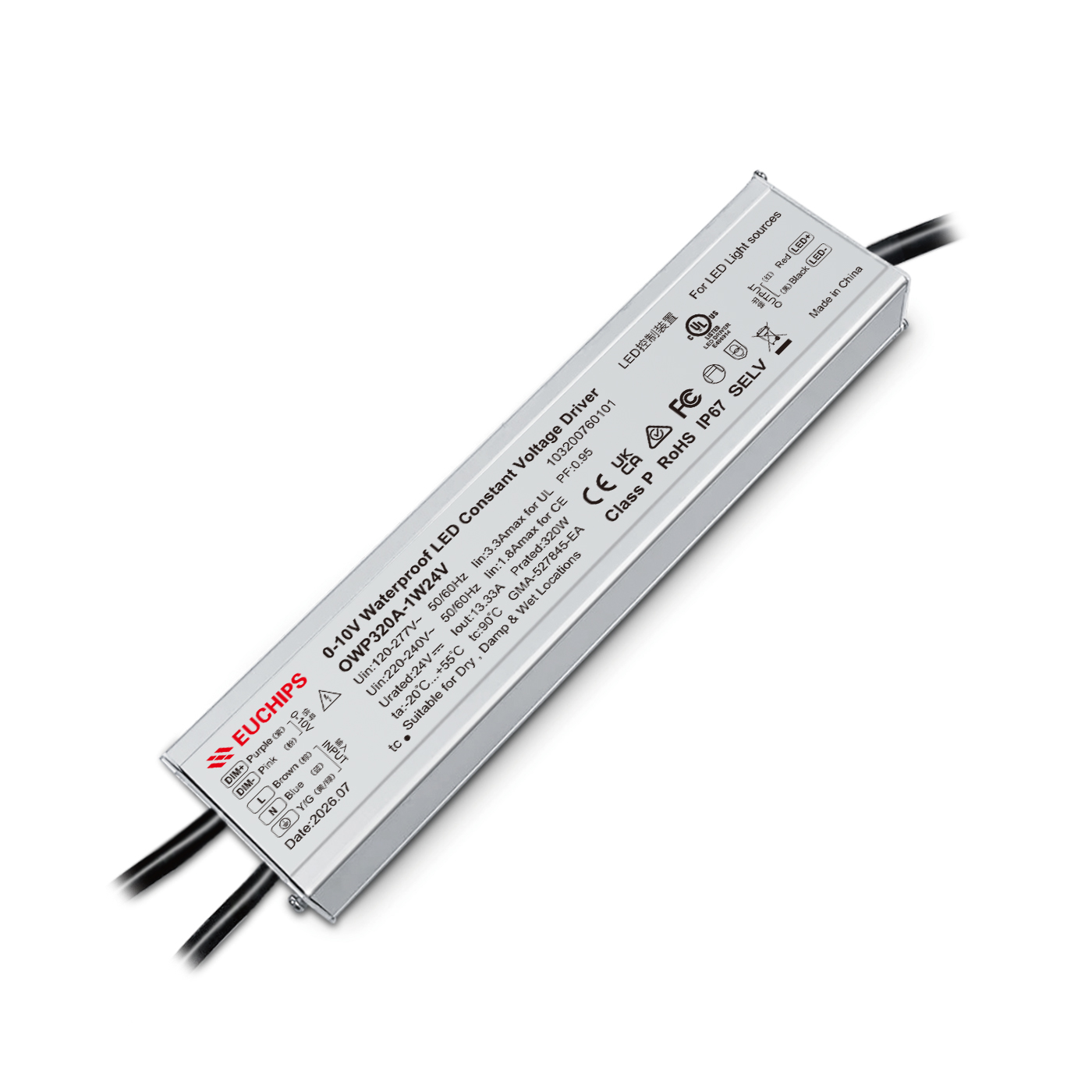

320W 24VDC 0/1-10V Waterproof CC Driver OWP320A-1W24V

Short Description:

  • Item No.: OWP320A-1W24V
  • Output Power: 320W

Product Detail

Product Tags

 320W 24VDC  0/1-10V Waterproof CC Driver OWP320A-1W24V

Features

· Single channel constant voltage output, maximum output current 13.33A
· Lightning protection, short circuit, overcurrent, overload, metal shell
· Protection class IP67, suitable for outdoor lighting
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Life of 50,000 hours, 5 years warranty
· Customizable dimming curve
· Wide voltage input with active PFC, full power output
· Suitable for LED constant voltage lamps, lamp strips, lamp strips, etc

Technical Parameters

Model OWP320A-1W24V
Input Input Voltage 120VAC-277VAC
Frequency Range(Hz) 50/60Hz
Input Current 3.15Amax@120VAC 1.45Amax@277VAC
Power Factor ≥0.95@120VAC, Full load ≥0.95@277VAC, Full load
Efficiency ≥90%@120VAC, Full load  ≥93%@277VAC, Full load
THD ≤10%@230VAC, Full load  ≤10%@277VAC, Full load
Standby power <1.5W
No-load power <1.5W
Inrush Current Cold start,15.1A@120VAC 104us 73.2A@277VAC 164us
Output Output Voltage 24VDC
Voltage Accuracy ±5%
Output Current 13.33A Max.
Current Accuracy /
Output Power 320W Max.
Output Power Range 0W~320W
PstLM ≤1
SVM ≤0.4
Dimming frequency 20KHz
Line Regulation ±3% @Full load
Load Regulation ±3% @Full load
Turn on delay Time 0.75s, at230Vac (When the light begins to shine)
Function Dimming Type 0-10V
Dimming Range 0.1%-100% Dimming to OFF
Dimming Curve Logarithm
Flicker free Flicker free
Protection Short circuit Close the output and recover after troubleshooting
Over Current Reduce current burp protection, self-recovery after troubleshooting
Over load Reduce current burp protection, self-recovery after troubleshooting
Over Voltage /
Over temperature /
Safety& EMC Surge L-N 6KV L-PE 10KV N-PE 10KV
Withstand Voltage I/P-O/P: 3750VAC/1min/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA I/P-0-10V( Signal port ):1500Vac/1min/<5mA


Safety Standards

CCC  (China) GB19510.1,GB19510.14 TUV (Germany) EN61347-1,EN61347-2-13,EN62493
CB (CBmember states) IEC61347-1,IEC61347-2-13 CE (European Union)  EN61347-1,EN61347-2-13,EN62384
RCM (Australia) AS 61347-1,AS 61347-2-13 EMEC (Europe) EN61347-1,EN61347-2-13,EN62384


EMC Emission

CCC  (China) GB/T17743,GB17625.1
CE (European Union)  EN55015,EN61000-3-2,EN61000-3-3,EN61547
RCM (Australia) EN55015EN61000-3-2EN61000-3-3EN61547
EMC Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment Working Temp. -20℃~50℃ [-4°F~122°F]
Storage Temp. -40℃~90℃ [-40°F~194°F]
Storage Humidity 20-90%RH (No condensation)
Others RoHS Comply with 2015/863/EU
tc 90℃ [194°F]
material Metal
IP Rating IP67
Lifetime 50,000h@tc:90℃ [194°F]
Warranty Condition 5years
Switch Cycle 25,000times
Body size 280*64*33mm (11.02*2.51*1.29 Inch) (L*W*H)
Packing(weight) Net weight: 1112g (2.45lb)±5%/PCS; 10PCS/Carton; 11.62kg(25.61lb)±5%/Carton; Carton Size: 316*202*194mm(12.44*7.95*7.63 Inch)(L*W*H)
Noise In a quiet environment, no noise beyond 30-50cm
Remark All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
