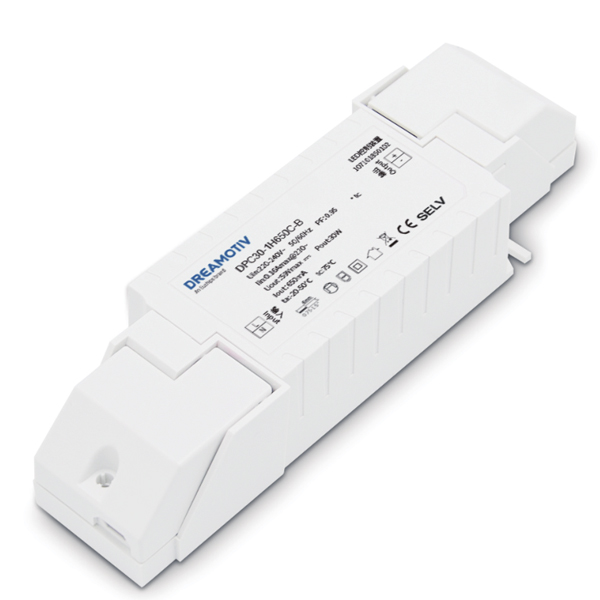

30W 650mA Non-dimmable CC Driver DPC30-1H650C-B
30W 650mA Non-dimmable CC Driver DPC30-1H650C-B
DPC30-1H650C-B is a 30W AC/DC constant current LED driver, Flicker free design to create a healthy light environment.
Features
· Constant current drive without stroboscopic
· Active power factor correction (PF>0.95)
· High efficiency, long life and high reliability
· Protection: Short circuit , over load, over voltage protection
· Suitable for LED lighting · Built in active PFC function
Technical Parameters
| Model | DPC30-1H650C-B | |
|
Input |
Efficiency | ≥86%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | There is no | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.25Amax@230VAC | |
| No load Power | ≤0.5W | |
| Inrush Current(max) | Cold Start,15.1A@230VAC 154us | |
| Turn on delay Time | ≤500ms, at230Vac (When the light begins to shine) | |
|
Output |
Current | 650mA |
| Voltage | 31-46VDC | |
| Power | 30 W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| Ripple current | ≤3% | |
| No load output voltage | 59VDC Max | |
|
Protection |
Short Circuit | Current down, troubleshooting output normal |
| Over Load | Reduce current burp protection，troubleshoot normal output | |
| Over voltage | Short circuit no output, troubleshooting output normal | |
|
Safety& EMC |
Surge | L-N:1000VAC |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃, |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 75℃ | |
| Material | Plastic case | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Dimension (Side cover ) | 155*45*30mm（L*W*H） | |
| Dimension (No Side cover ) | 97*43.5*30mm（L*W*H） | |
