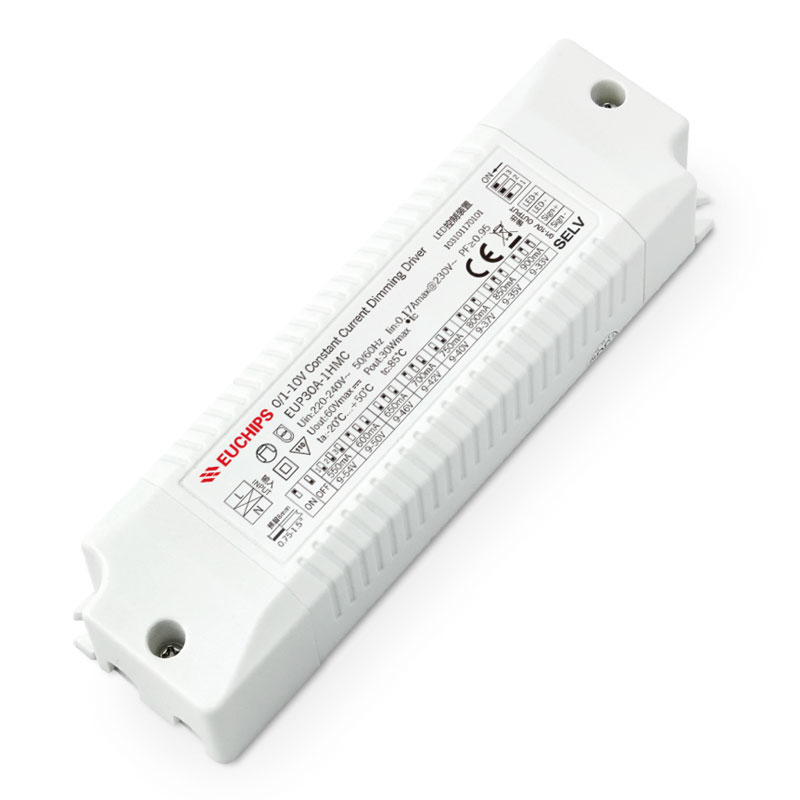

30W 550~900mA*1ch 0/1-10V CC Driver EUP30A-1HMC
550/600/650/700/750/800/850/900mA 30W Constant Current 1-10V Driver EUP30A-1HMC
EUP30A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 86%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power suppl
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load
9. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP30A-1HMC | |
| Input | Efficiency | 86%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC | |
| AC Current(max) | 0.17Amax@230VAC | |
| Inrush Current(max) | Cold start,20A@230VAC | |
| Output | Current(mA)/Voltage (VDC)/Power(W) | 550mA/9-54VDC/29.7W 600mA/9-50VDC/30W 650mA/9-46VDC/29.9W 700mA/9-42VDC/29.4W 750mA/9-40VDC/30W 800mA/9-37VDC/29.6W 850mA/9-35VDC/29.75W 900mA/9-33VDC/29.7W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | max 0.5W | |
| No load output voltage | 60V Max | |
| Function | Dimming Type | 0/1-10V |
| Dimming Range | 0%-100% | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | after fault removed Close output , and restart | |
| Safety&EMC | Surge | L-N:1000V |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20°C~50°C |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 155g±5%/PCS; 50PCS/Carton; 8.25kg±5%/Carton; Carton Size: 333*268*150mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
