30W 24VDC Triac & 0-10V CV Driver MUP30AT-1W24V-B
30W 24VDC Triac & 0-10V CV Driver MUP30AT-1W24V-B

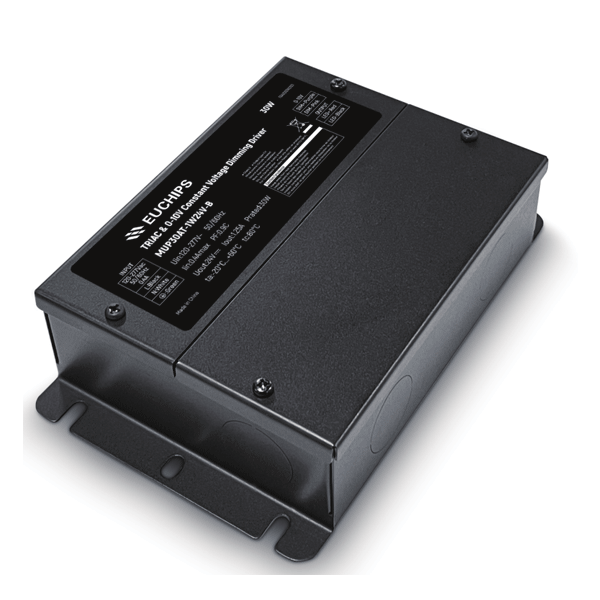

MUP30AT-1W24V-B is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, 0-10V to achieve a smooth dimming effect.
Features
· Single channel constant voltage output,1.25A Max
· Wide input voltage of 120VAC ~ 277VAC
· Dimming range of 1-100%, and dimming effect smooth, Flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: Over load; short circuit; Over Current
· IP54, Suitable for LED lighting fixtures
Technical Parameters
| Model | MUP30AT-1W24V-B | |
| Input | Efficiency | ≥76%@120VAC, ≥81%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.40Amax @120VAC, 0.25Amax@230VAC, 0.2Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.9@277VAC, full load | |
| THD | <10%@230VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start,5A@120VAC 590us 12A@277VAC 600us | |
| Standby power | <2.5W@120VAC | |
| No load power | <2.5W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
| Output | Current | 1.25A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 30W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
| Function | Dimming Type | 0-10V, TRIAC/ELV(@120VAC 60Hz) |
| Dimming Range | 1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Hiccup protection, self recovery after troubleshooting |
| Over Load | Hiccup protection, self recovery after troubleshooting | |
| Over Current | Hiccup protection, self recovery after troubleshooting | |
| Safety&EMC | Surge | L-N 2500VAC L-N-PG 2500VAC |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH (-40°F-185°F) | |
| tc | 80℃ (176°F) | |
| Material | Metal | |
| IP Rating | IP54 | |
| Lifetime | 50,000小时@tc:80℃ (176°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 556g (1.23 lb)±5%/PCS; 18PCS/Carton; 11.5kg(25.35 lb)±5%/Carton; Carton Size: 327*327*166mm(12.87*12.87*6.54 Inch)(L*W*H) | |
| Dimension | 150*98*39mm(5.91*3.86*1.54 Inch)(L*W*H) | |
