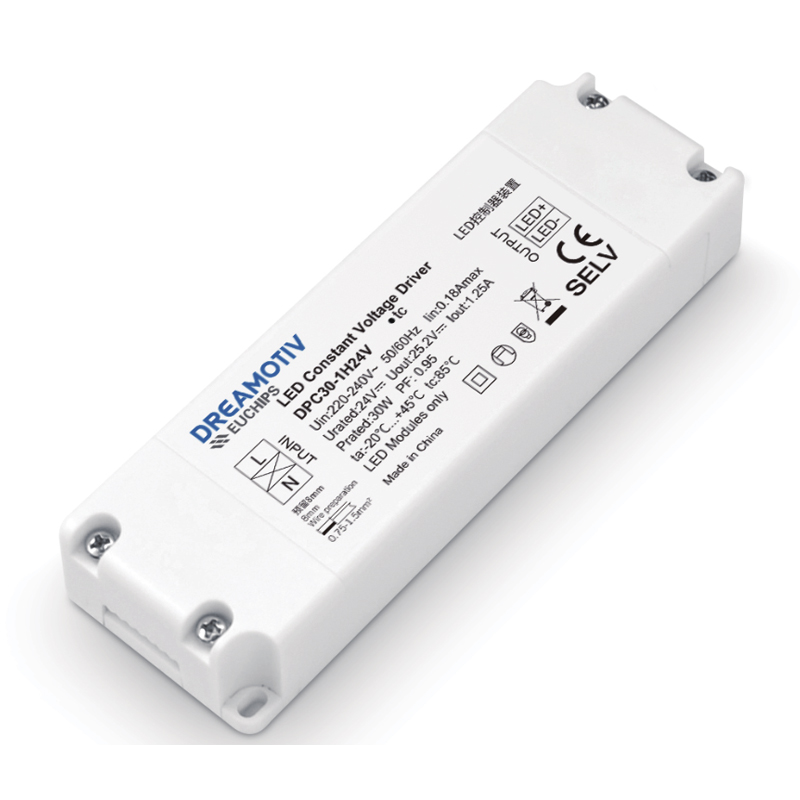

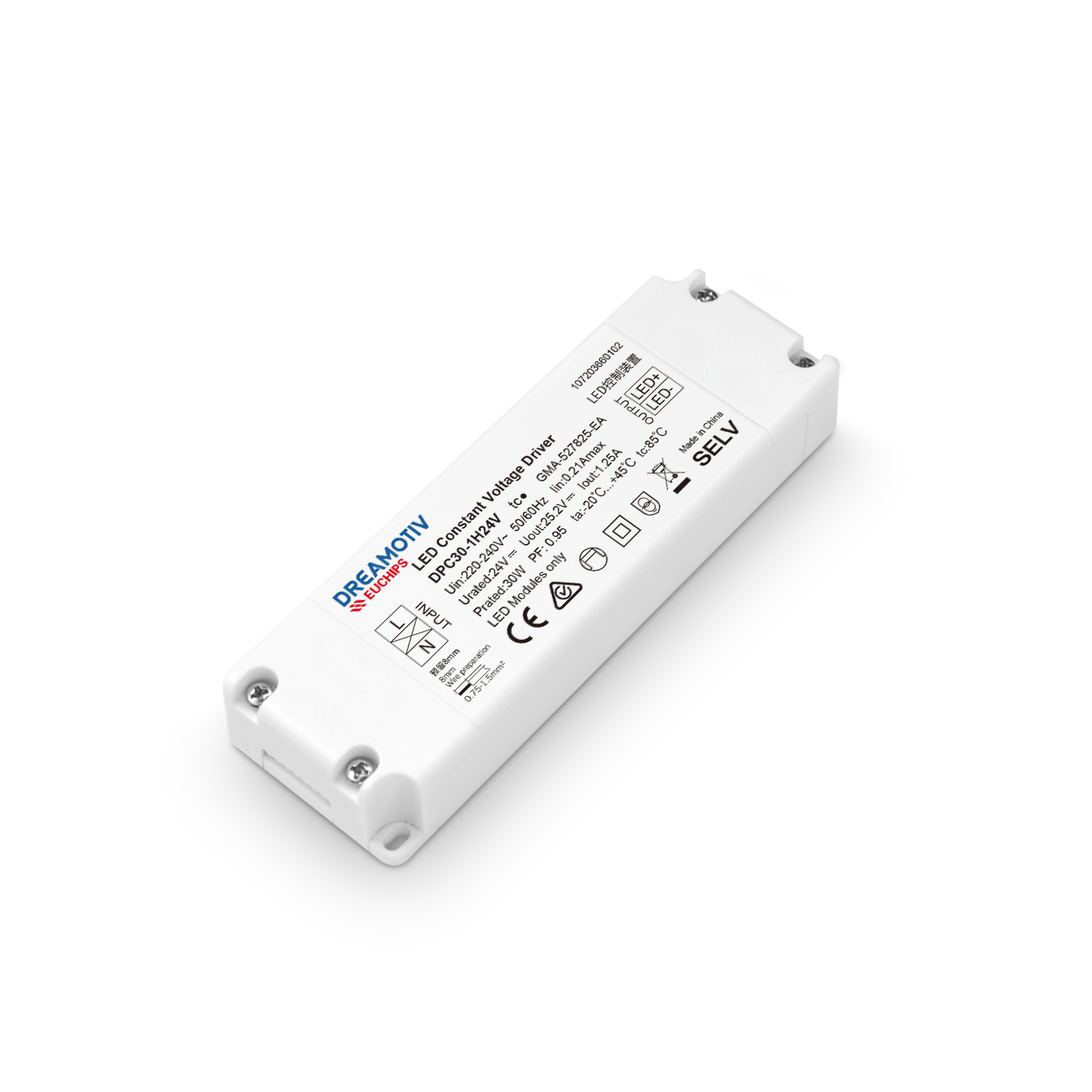

30W 24VDC Non-Dimmable CV LED Driver DPC30-1H24V
30W 24VDC Non-Dimmable CV LED Driver DPC30-1H24V
DPC30-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use.
Features
· Single channel constant voltage output, maximum current of 1.25A
· High voltage input: 220VAC~240VAC
· High efficiency up to 86%
· Protection: over load, over current, Over temperature, Short circuit
· No load power consumption ≤ 0.5W, THD<10%
· Small size, suitable for indoor LED cabinet wardrobe lighting fixtures
Technical Parameters
| Model | DPC30-1H24V | |
| Input | Efficiency | ≥86%@230VAC, full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.18Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Inrush current | Cold start,15.5A@230VAC 20us | |
| Standby power | ≤0.5W | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.75 s, @230Vac (When the light begins to shine) | |
| Output | Power | 30W |
| Voltage | 24VDC | |
| Current | 1.25A | |
| Voltage Accuracy | ±5% | |
| Channel | 1 | |
| Frequency | 65K | |
| Protection | Overload | Reduce voltage protection to troubleshoot normal output |
| Short circuit | Short circuit with no output, restored to normal after powering on again | |
| Over Current | Reduce voltage protection to troubleshoot normal output | |
| Over Temperature | No output, can be restored by re powering on after removing the fault | |
| Safety& EMC | Surge | L-N 1000VAC |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Emission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resistance | 5MΩ | |
| Others | Working temp. | ta:-20-45℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 85℃ @230Vac | |
| IP | IP20 | |
| Lifetime | 30 000h@tc:85℃ | |
| Warranty | 3 year | |
| Switch cycle | 15,000 times | |
| Packing size | Net weight:94.6g±5%/PCS; 75PCS/Carton; 7.6kg±5%/Carton; Carton Size: 418*244*135mm(L*W*H) | |
| Dimension | 130*43*21mm(L*W*H) | |
