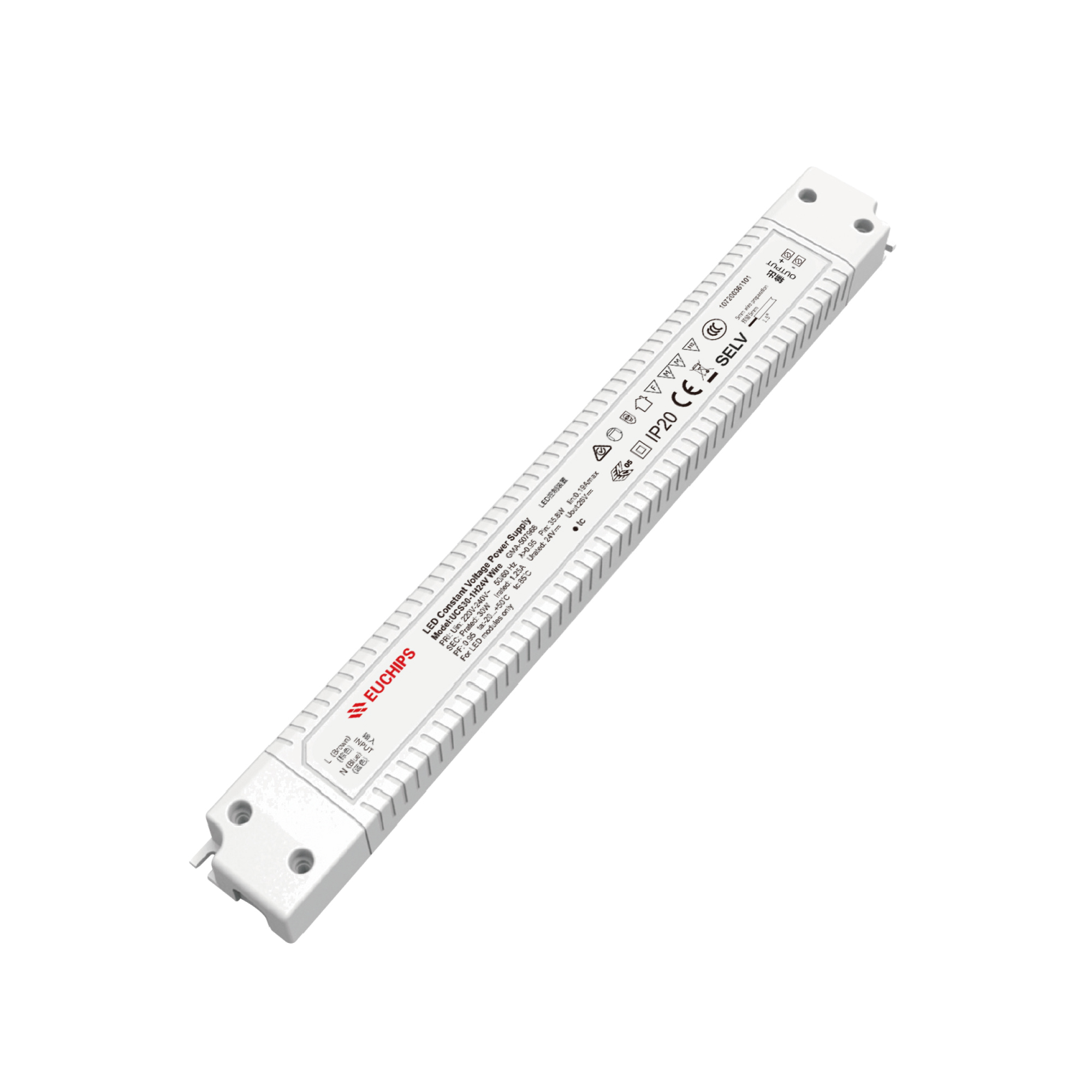

30W 24VDC Non-dimmable CV LED Driver UCS30-1H24V
30W 24VDC Non-dimmable Constant Voltage LED Driver UCS30-1H24V
Features
1. A channel constant voltage output Max
2. Applicable to indoor LED lights
3. Small size, high efficiency, high reliability and long life time
4. -25℃~+50℃, working temp
5. Protections: overload, overvoltage, short circuit self-recovery protection
6. Compliance with CE and ROHS
7. 100% Full load aging test
8. The warranty period is 5 year
Technical Parameter
| Model | UCS30-1H24V | |
| Input | Efficiency | 86%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.19Amax@220VAC | |
| THD | <10% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 1.25A/24VDC/30W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 100g±5%/PCS; 50PCS/Carton; 5.5kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 250*30*17mm(L*W*H) | |
