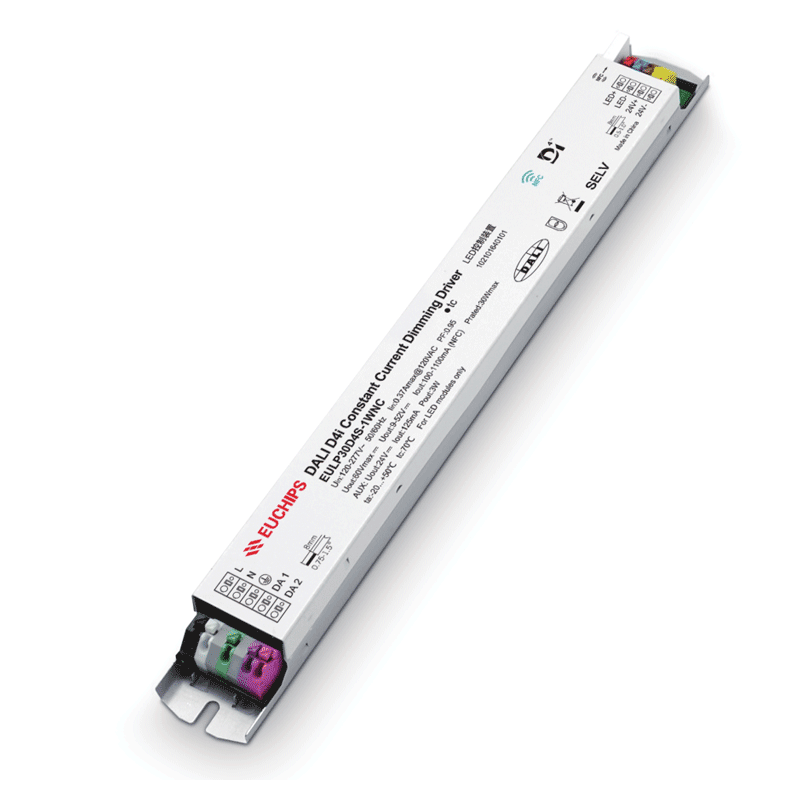

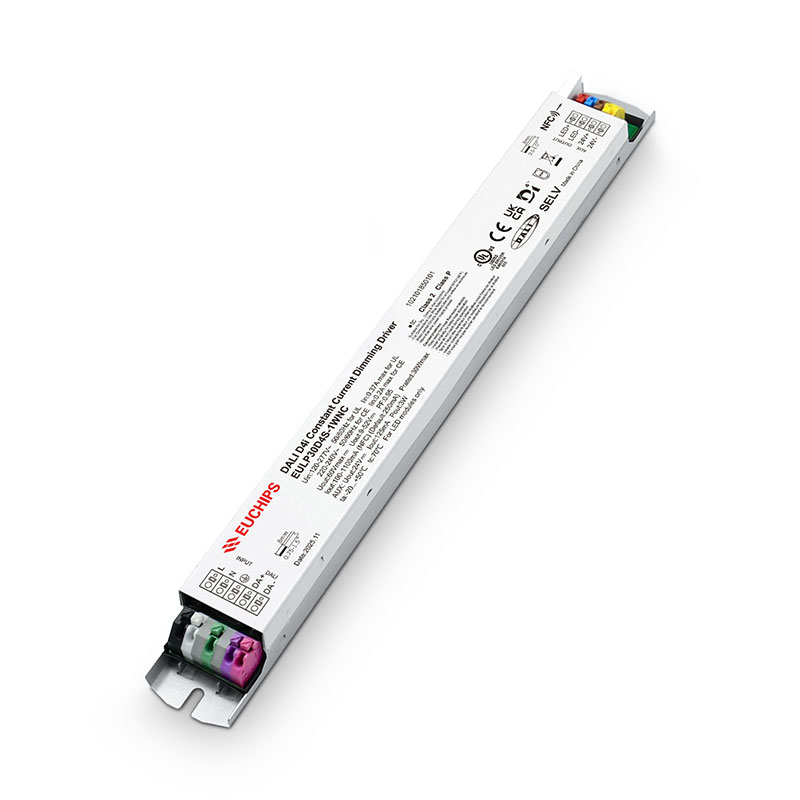

30W 100-1100mA(NFC) DALI CC Driver EULP30D4S-1WNC
30W 100-1100mA(NFC) DALI CC Driver EULP30D4S-1WNC
Advantages
• Enable interoperability with diverse wireless sensors/network systems
• Reduce complexity and cost of fixture by eliminating auxiliary components
ordinarily required for powering sensors, switching fixture off and monitoring energy use
• interface to any suitable sensor and ease of adjustable drive current
Features
• Standard-compliant (ANSI C137.4 and DiiA) digital interface including:
- Integrated DALI bus power supply (Part 250)
- Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
• Energy metering and advanced diagnostics
• Continuous dimming down to 1%
• Drive current setting via NFC wireless programming
• 5-year limited warrant
Programming
Adjustable Light Output (ALO)
Adjustable Output Current (AOC)
Luminaire Maintenance
Luminaire (Fixture) Information (Luminaire Info)
Technical Parameters
| Model | EULP30D4S-1WNC | |
| Input | Efficiency | ≥87%@120VAC-277VAC, full load |
| Rated Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.37Amax@120VAC, 0.17Amax@277VAC | |
| Power Factor | ≥0.95@120VAC, full load，≥0.9@277VAC, full load | |
| THD(full load) | <10%@120VAC-277VAC, full load | |
| Inrush Current(max) | Cold start,7A@120VAC 100us, 28A@277VAC 80us | |
| Output | Current Range | 100-1100mA(NFC) |
| Voltage Range | 9-52VDC | |
| Output Power | 30W Max | |
| Current | 1 | |
| Current Accuracy | ±5% ±7% below 200mA | |
| No load output voltage | 60VDC max | |
| Standby power | ≤0.75W | |
| No load power | ≤0.75W | |
| Turn on delay Time | ≤0.75s, @120Vac (When the light begins to shine) | |
| Aux Output | Output Voitage | 24V±10% |
| Output Power | 3W | |
| Output Current | 125mA | |
| No load output voltage | 30V MAX | |
| Ripple Voitage | ≤1V | |
| Function | Dimming Type | DALI 2.0 D4i |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short-circuit protection | Short circuit without output, troubleshooting results in normal output |
| Overload protection | Reduce current hiccup protection, troubleshoot and output normally | |
| Over Voltage | Reduce current hiccup protection, troubleshoot and output normally | |
| Safety& EMC | Surge | L-N 2500VAC L&N-PE 2500VAC |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347-1,UL8750,UL1310 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~+50℃ (-4°F~122°F) |
| Storage Temp., Humidity | -40℃~80℃ (-40°F~194°F), 5%-90%RH | |
| tc | 70℃ (158°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ (158°F) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 280*30*21mm (11*1.18*0.827 Inch) (L*W*H) | |
| Packing(weight) | Net weight: 250g(0.55 lb)±5%/PCS; 50PCS/Carton; 13kg(28.66 lb)±5%/Carton; Carton Size: 498*334*130mm(19.6*13.15*5.12 Inch) | |
