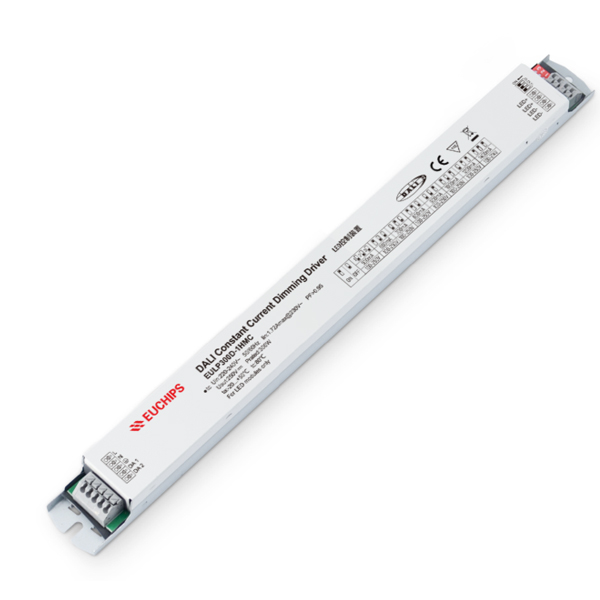

300W 500~1400mA*1ch DALI CC Driver EULP300D-1HMC
300W 500~1400mA*1ch DALI CC Driver EULP300D-1HMC
EULP300D-1HMC is a 300W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. It can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
· Single channel output, output current level selectable by DIP S.W.
· Support DALI software to adjust output current
· Meet DALI protocol IEC 62386
· Support Touch DIM function
· High efficiency up to 95%
· Built-in active PFC function
· Logarithmic dimming，dimming effect smooth, no flicker
· Protections: Short circuit, Over load, Over voltage
· Suitable for indoor LED lighting application, vapor light, and so on
Technical parameters
| Model | EULP300D-1HMC | |
| Input | Efficiency | ≥95%@220VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.95@230VAC,Full load | |
| THD(full load) | ≤10%@230VAC, Full load | |
| AC Current(max) | 1.72A max@220VAC | |
| No load power | ≤0.5W | |
| Standby power | ≤0.5W | |
| Inrush Current(max) | Cold start,80A@230VAC 300us | |
| Output | Current(mA)/Voltage (VDC) Power(W) | 500mA/100-250V/125W 600mA/100-250V/150W700mA/100-250V/175W 800mA/100-250V/200W
900mA/100-250V/225W 1000mA/100-250V/250W 1200mA/100-250V/300W 1400mA/100-214V/300W |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No load output voltage | 300VDC max | |
| Function | Dimming Type | DALI / Touch DIM |
| Dimming Range | 1%-100% | |
| Protection | Short circuit | No output, you need to power off and restart |
| Over Load | No output, you need to power off and restart | |
| Voltage Load | No output, you need to power off and restart | |
| Safety& EMC | Surge | L-N:1kV L&N-N:2kV |
| Withstand Voltage | I/P-G: 1500Vac/1min/<5mA; O/P-G: 1500Vac/1min/<5mA | |
| Safety standards | EN61347,GB19510 | |
| EMC Eission | EN55015, EN61000-3-2 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃ 20-90%RH | |
| tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 365g±5%/PCS; 50PCS/Carton; 18.75kg±5%/Carton; Carton Size:334*377*141mm(L*W*H) | |
| Dimension | 360*30*21mm（L*W*H） | |
