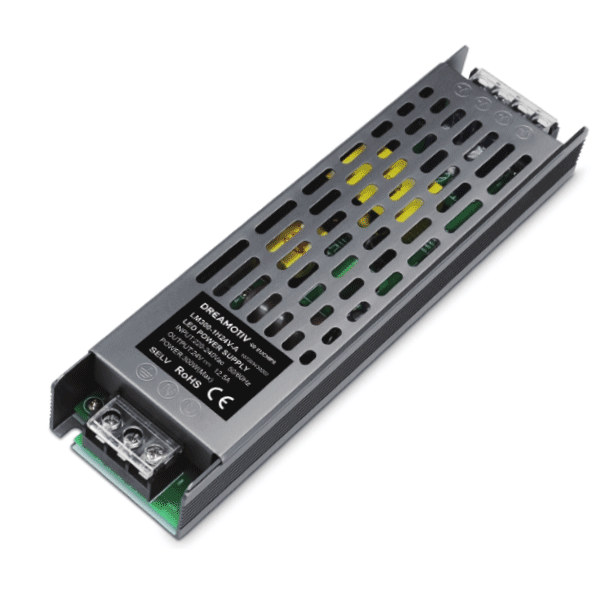

300W 24VDC Non-dimmable CV Driver LM300-1H24V-A

Short Description:

Item No.: LM300-1H24V-A
Output Power: 300W

Product Detail

Product Tags

300W 24VDC Non-dimmable CV Driver LM300-1H24V-A

The circuit of this product is simple, stable and reliable. Long aluminum structure, ordinary constant voltage simple terminal input and output Simple installation, can be used in commercial, home, engineering and other projects.

Features

· Aluminium Casing
· Ultra-low start up temp. （-20℃）
· Ultra-light and easy to install
· High efficiency up to 90%
· High reliability
· Small size, light weight

Technical Parameters

Model	LM300-1H24V-A
Input	Efficiency	≥90%@230VAC
	Frequency Range(Hz)	50/60Hz
	Voltage	220-240VAC
	PF	≥0.4@230VAC
	Current	3.4Amax@230Vac
	Inrush current	Cold start100A@230VAC 1ms
	Standby power	≤1W
	No load power	≤1W
	Turn on delay Time	≤ 0.75 s, at230Vac (When the light begins to shine)
Output	Power	300W
	Output Voitage	24VDC
	Current	0～12.5A
	Frequency	65K
	Channel	1
	No load output voltage	24.5VDC max
Protection	Over load	Reduce voltage protection to troubleshoot normal output
	Short circuit	Short circuit No output, troubleshooting output normal
	Over Current	Reduce voltage protection to troubleshoot normal output
	Over temperature	Reduce voltage protection to troubleshoot normal output
Safety& EMC	Surge	L-N 1000VAC, LN- Ground cable 2000VAC
	Withstand Voltage	Input pair Output 1500Vac/1min/<5mA Input ground (housing) 1500Vac/1min/<5mA Output ground (housing) 500Vac/1min/<5mA
	Safety standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	Insulation Resisance	5MΩ
Others	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	Working temp.	ta:-20℃-45℃
	Tc	85℃ @230Vac
	IP	IP20
	Lifetime	30 000h@tc:50℃
	Warranty	3 year
	Switch cycle	15,000 times
	Packing size	Net weight:—g±5%/PCS; 50 PCS/Carton; — kg±5%/Carton; Carton Size: 414294200mm(LWH)
	Dimension	2205931mm(LWH)
