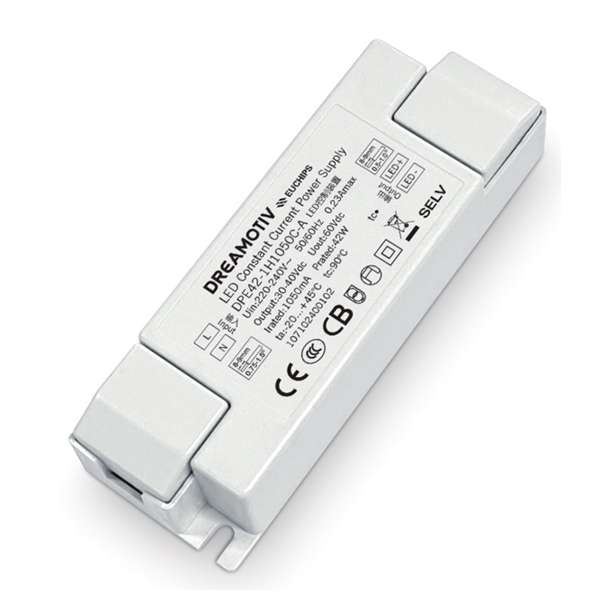

26W~42W Non-dimmable CC Driver DPE26W-42W
26W-42W Non-dimmable CC Driver DPE26W-42W
Features
· Electrical isolation
· Constant current mode
· High efficiency, high PF value
· Protection function: open circuit, short circuit,
Over Temperature, Over Load
· Lightning surge protection 1KV
· Protection class IP20
Technical Parameters
| Model | Input Current | Output Current | No Load Protection | Output Voltage | Output Power | Efficiency
@230V full load |
| DPE26-1H620C-A/B | 0.15A Max | 620mA | 60Vmax | 30-42V | 26W | 88% |
| DPE26-1H630C-A/B | 0.15A Max | 630mA | 60Vmax | 30-42V | 26W | 88% |
| DPE27-1H640C-A/B | 0.15A Max | 640mA | 60Vmax | 30-42V | 27W | 88% |
| DPE27-1H650C-A/B | 0.15A Max | 650mA | 60Vmax | 30-42V | 27W | 88% |
| DPE28-1H660C-A/B | 0.16A Max | 660mA | 60Vmax | 30-42V | 28W | 88% |
| DPE28-1H670C-A/B | 0.16A Max | 670mA | 60Vmax | 30-42V | 28W | 88% |
| DPE29-1H680C-A/B | 0.16A Max | 680mA | 60Vmax | 30-42V | 29W | 88% |
| DPE29-1H690C-A/B | 0.16A Max | 690mA | 60Vmax | 30-42V | 29W | 88% |
| DPE29-1H700C-A/B | 0.17A Max | 700mA | 60Vmax | 30-42V | 29W | 88% |
| DPE30-1H710C-A/B | 0.17A Max | 710mA | 60Vmax | 30-42V | 30W | 88% |
| DPE30-1H720C-A/B | 0.17A Max | 720mA | 60Vmax | 30-42V | 30W | 88% |
| DPE31-1H730C-A/B | 0.17A Max | 730mA | 60Vmax | 30-42V | 31W | 88% |
| DPE31-1H740C-A/B | 0.17A Max | 740mA | 60Vmax | 30-42V | 31W | 88% |
| DPE32-1H750C-A/B | 0.18A Max | 750mA | 60Vmax | 30-42V | 32W | 88% |
| DPE32-1H760C-A/B | 0.18A Max | 760mA | 60Vmax | 30-42V | 32W | 88% |
| DPE32-1H770C-A/B | 0.18A Max | 770mA | 60Vmax | 30-42V | 32W | 88% |
| DPE33-1H780C-A/B | 0.18A Max | 780mA | 60Vmax | 30-42V | 33W | 88% |
| DPE33-1H790C-A/B | 0.19A Max | 790mA | 60Vmax | 30-42V | 33W | 88% |
| DPE34-1H800C-A/B | 0.19A Max | 800mA | 60Vmax | 30-42V | 34W | 89% |
| DPE34-1H810C-A/B | 0.19A Max | 810mA | 60Vmax | 30-42V | 34W | 89% |
| DPE34-1H820C-A/B | 0.19A Max | 820mA | 60Vmax | 30-42V | 34W | 89% |
| DPE35-1H830C-A/B | 0.19A Max | 830mA | 60Vmax | 30-42V | 35W | 89% |
| DPE35-1H840C-A/B | 0.20A Max | 840mA | 60Vmax | 30-42V | 35W | 89% |
| DPE36-1H850C-A/B | 0.20A Max | 850mA | 60Vmax | 30-42V | 36W | 89% |
| DPE36-1H860C-A/B | 0.20A Max | 860mA | 60Vmax | 30-42V | 36W | 89% |
| DPE37-1H870C-A/B | 0.20A Max | 870mA | 60Vmax | 30-42V | 37W | 89% |
| DPE37-1H880C-A/B | 0.21A Max | 880mA | 60Vmax | 30-42V | 37W | 89% |
| DPE37-1H890C-A/B | 0.21A Max | 890mA | 60Vmax | 30-42V | 37W | 89% |
| DPE38-1H900C-A/B | 0.21A Max | 900mA | 60Vmax | 30-42V | 38W | 89% |
| DPE38-1H910C-A/B | 0.21A Max | 910mA | 60Vmax | 30-42V | 38W | 89% |
| DPE39-1H920C-A/B | 0.21A Max | 920mA | 60Vmax | 30-42V | 39W | 89% |
| DPE39-1H930C-A/B | 0.22A Max | 930mA | 60Vmax | 30-42V | 39W | 89% |
| DPE39-1H940C-A/B | 0.22A Max | 940mA | 60Vmax | 30-42V | 39W | 89% |
| DPE40-1H950C-A/B | 0.22A Max | 950mA | 60Vmax | 30-42V | 40W | 89% |
| DPE40-1H960C-A/B | 0.22A Max | 960mA | 60Vmax | 30-42V | 40W | 89% |
| DPE41-1H970C-A/B | 0.23A Max | 970mA | 60Vmax | 30-42V | 41W | 89% |
| DPE41-1H980C-A/B | 0.23A Max | 980mA | 60Vmax | 30-42V | 41W | 89% |
| DPE42-1H990C-A/B | 0.23A Max | 990mA | 60Vmax | 30-42V | 42W | 89% |
| DPE42-1H1000C-A/B | 0.23A Max | 1000mA | 60Vmax | 30-42V | 42W | 89% |
| DPE40-1H1010C-A/B | 0.22A Max | 1010mA | 60Vmax | 30-40V | 40W | 89% |
| DPE41-1H1020C-A/B | 0.23A Max | 1020mA | 60Vmax | 30-40V | 41W | 89% |
| DPE41-1H1030C-A/B | 0.23A Max | 1030mA | 60Vmax | 30-40V | 41W | 89% |
| DPE42-1H1040C-A/B | 0.23A Max | 1040mA | 60Vmax | 30-40V | 42W | 89% |
| DPE42-1H1050C-A/B | 0.23A Max | 1050mA | 60Vmax | 30-40V | 42W | 89% |
|
Input |
Rated Input Voltage | 220-240VAC |
| Frequency | 50/60Hz | |
| Input Current | 0.23A MAX. | |
| Power Factor | >0.9 | |
| THD | <15% @220~240Vac & full load | |
| Inrush Current(Max) | I<60A/400uS @264Vac(Cold Start) | |
| Leakage Current | <0.5mA @264Vac | |
|
Output |
Line Regulation | ±3% |
| Load Regulation | ±3% | |
| Output Current Accuracy | ±5% | |
| Started Delay Time | <0.5s @220Vac | |
| stand-by Power | <0.5W | |
|
Protection |
Short Circuit Protection | Drop the current and voltage to remove the fault and recover |
| No Load Protection | 60V MAX | |
| Over Temperature | Current high temperature drop, OTP-Auto | |
| Over Load | Reduce the current, remove the fault and recover | |
|
Environment |
Operating Temperature | -20~+45℃ |
| tc | 90℃ | |
| Temperature Coefficient | 0.3%/℃ (0-45℃) | |
| Operating Humidity | 20~90%RH | |
| Storage temperature | -30~+80℃/5~80%RH | |
|
Safety&EMC |
Certifications | CE CB |
| Surge Level | L/N:1KV IEC61000-4-5 | |
| EMI | EN55015 | |
| Withstand Voltage | Input-Output：3.75KVac@60S; <5mA | |
| Isolation Resistance | Input-Output：>10MΩ@500Vdc | |
|
Others |
MTBF | >385KHours, 80%Load MIL-HDBK-217F(25℃) |
| -A
Life Time(Typ) |
> 25,000 h, tc 85 °C @ ta 45 °C 0.3 % / 1,000 h failure rate
> 50,000 h, tc 70 °C @ ta 35 °C 0.15 % / 1,000 h failure rateHours |
|
| -B
Life Time(Typ) |
> 25,000h,tc85°C@ta45°C 0.3%/1,000h failure rate
> 30,000h,tc70°C@ta35°C 0.15%/1,000h failure rateHours |
|
| Weight & Size | 113.5*41*25mm | |
| RoHS | Yes | |
| Notes | Note: Unless otherwise specified , all parameters are measured at ambient temperature of 25℃ and Vin220- 240Vac | |
