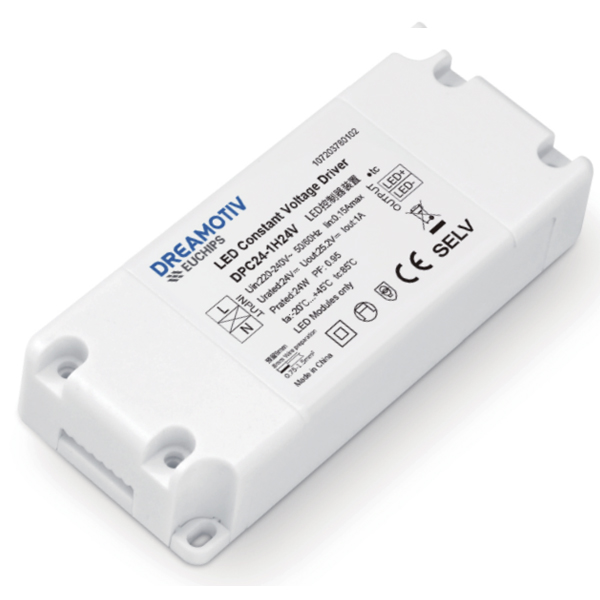

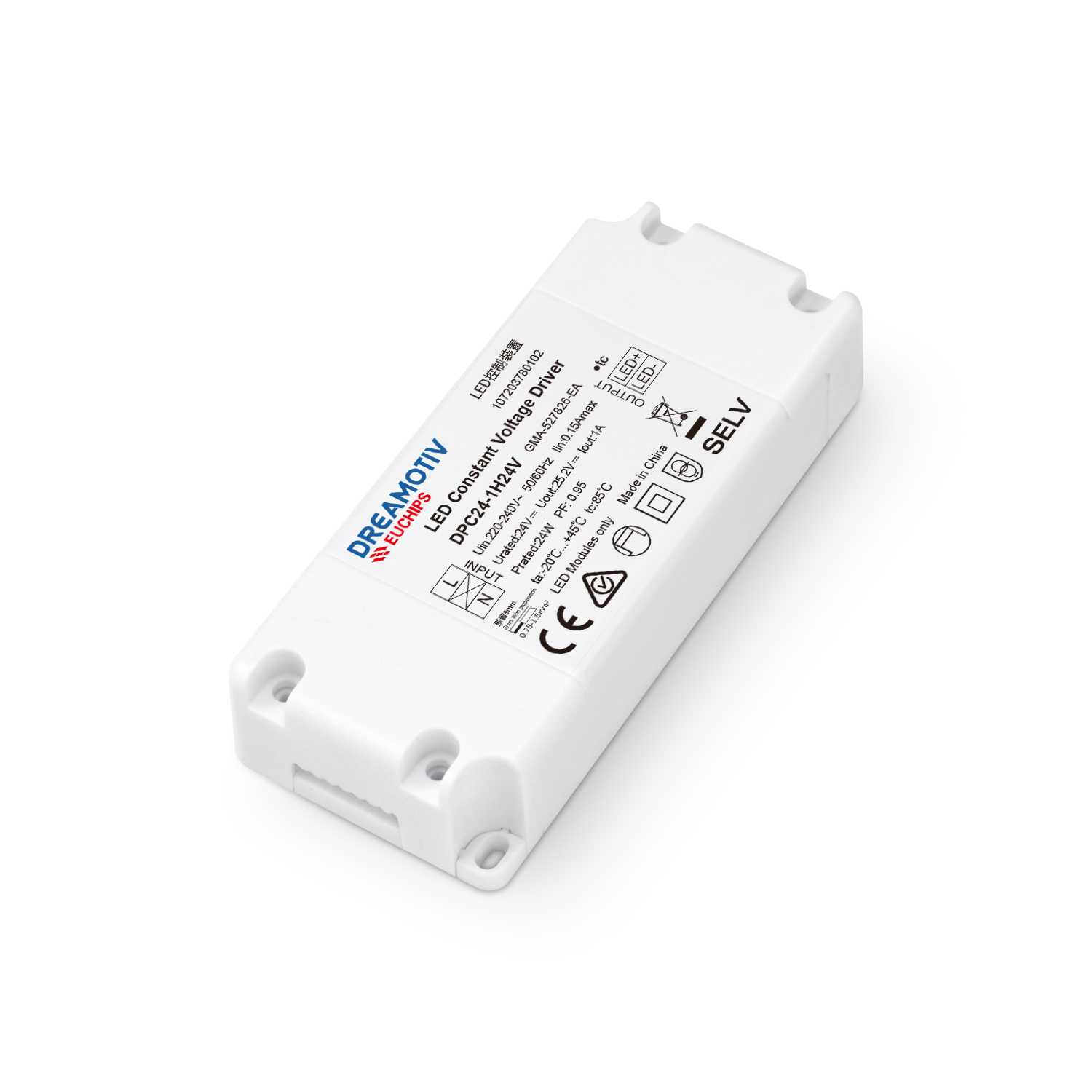

24W 24VDC Non-Dimmable CV LED Driver DPC24-1H24V
24W 24VDC Non-Dimmable CV LED Driver DPC24-1H24V
DPC24-1H24V is a constant voltage output LED driver that can be used indoors. This driver can be applied to small spaces such as cabinets and wardrobes, with a small size and convenient use.
Features
· Single channel constant voltage output, maximum current of 1A
· Input voltage: 220VAC~240VAC
· High efficiency up to 86%
· Protection: over load, over current, Over temperature, Short circuit
· No load power consumption ≤ 0.5W, THD<10%
· Small size, suitable for indoor LED cabinet wardrobe lighting fixtures
Technical Parameters
|
Model |
DPC24-1H24V | |
|
Input |
Efficiency | ≥86%@230VAC, full load |
| Voltage | 220-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.15Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Inrush current | Cold start,20A@230VAC 100us | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.75 s, @230Vac (When the light begins to shine) | |
|
Output |
Power | 24W |
| Voltage | 24VDC | |
| Current | 1A max | |
| Voltage Accuracy | ±5% | |
| Channel | 1 | |
| Frequency | 65K | |
|
Protection |
Over load | Reduce voltage protection to troubleshoot normal output |
| Short circuit | Short circuit with no output, restored to normal after powering on again | |
| Over Current | Reduce voltage protection to troubleshoot normal output | |
| Over Temperature | No output, can be restored by re-powering on after removing the fault | |
|
Safety& EMC |
Surge | L-N 1000VAC |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Emission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resistance | 5Mfi | |
|
Others |
Working temp. | ta:-20-45℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ @230Vac | |
| IP | IP20 | |
| Lifetime | 30,000h@tc:85℃ | |
| Warranty | 5 year | |
| Switch cycle | 15,000 times | |
| Packing size | Net weight:75g±5%/PCS; 100PCS/Carton; 8kg±5%/Carton; Carton Size: 436*244*135mm(L*W*H) | |
| Dimension | 100*43*21mm(L*W*H) | |
