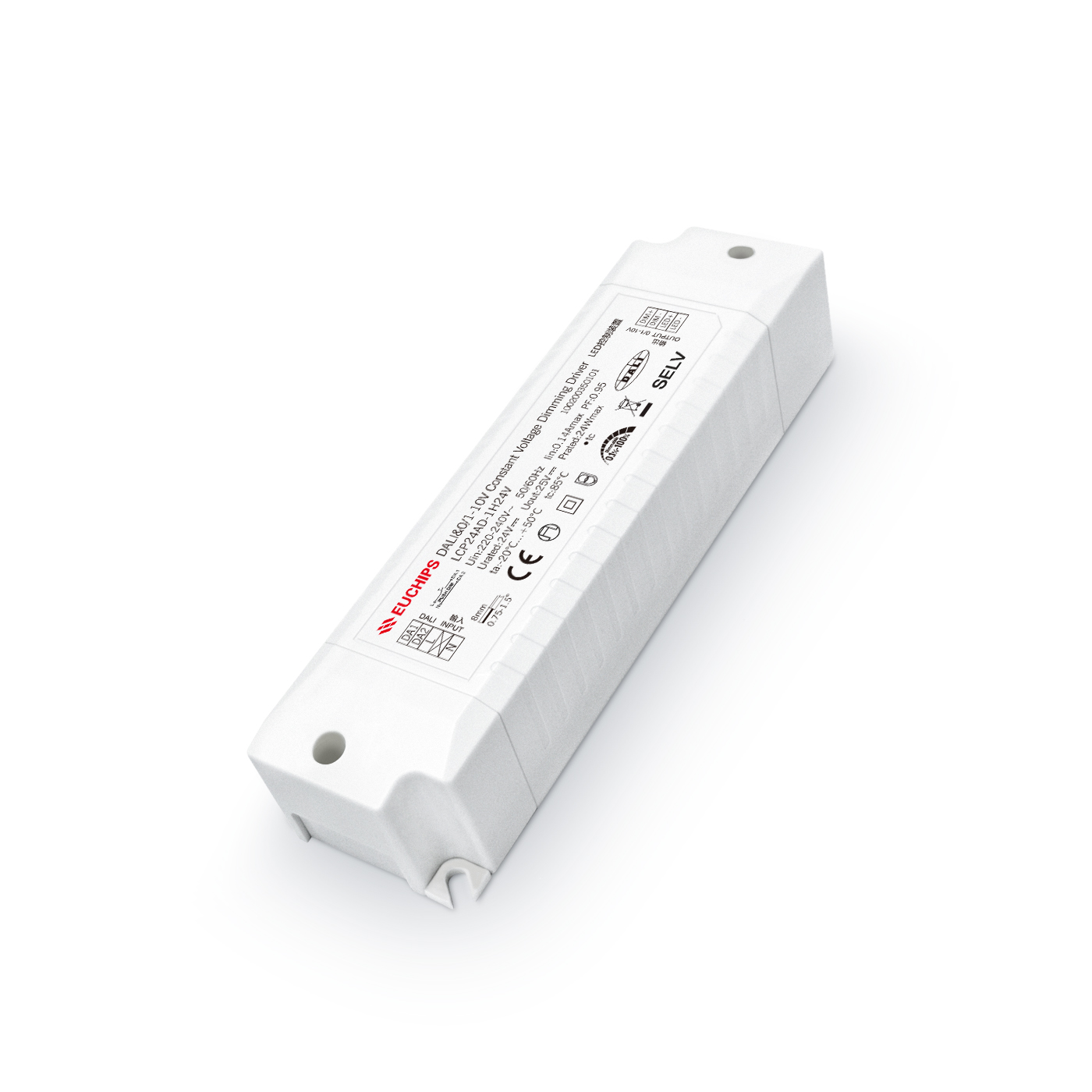

24W 24VDC DALI&0/1-10V CV Driver LCP24AD-1H24V
24W 24VDC DALI&0/1-10V CV Driver LCP24AD-1H24V
Features
·Single-channel constant voltage output, maximum output current: 1.0A
·Meet DALI protocol IEC 62386, DALI2.0
·Short circuit, overcurrent, overload protection
·Enclosure with V-0 Flame-Retardant Rating
·The dimming range is 0.1% to 100%, featuring smooth, step-free dimming and flicker-free operation
·Equipped with an integrated PFC chip, it enhances energy utilization and ated PFC chip, it enhances energy utilization and
·The dimming curve can be customized
·Compact design for easy installation in tight spaces.
·50,000-hour lifespan with a 5-year warranty
·5-in-1 dimming:DALI2.0, 0/1-10V active signal, PWM, adjustable resistance, and Touch DIM
·IP20 protection rating, suitable for indoor Class I, II, and III luminaires
Technical Parameters
| Model | LCP24AD-1H24V | |
| Input | Rated Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.14Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | ≥83%@230VAC, Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby power | <1W | |
| No load power | <1W | |
| Inrush Current | Cold start, 12.6A@230VAC 260us | |
| Output | Output Voltage | 24VDC |
| Output Voltage Tolerance | ±3% | |
| Output Current | 1.0A Max. | |
| Output Power | 24W Max. | |
| Output Power Range | 0W~24W | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| PWM Dimming frequency | 20KHz | |
| Line regulation | ±5% @Full load | |
| Load regulation | ±8% @Full load | |
| Turn on delay Time | 0.75s, at230Vac | |
| Function | Dimming Type | DALI2.0, 0/1-10V active signal, PWM, adjustable resistance, and Touch DIM |
| Dimming Range | 0.1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short circuit | Without output, troubleshooting results in normal output |
| Overcurrent | Output current decreases and burps, self recovers after troubleshooting | |
| Overload | Output current decreases and burps, self recovers after troubleshooting | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA O/P-Signal: 1500VAC/1min/5mA | |
| Safety standard | CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493 | |
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
| RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
| Others | RoHS | Comply with 2011/65/EU |
| tc | 85℃ | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 135*36*25mm (L*W*H) | |
| Packing(weight) | Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
