240W 12VDC 0/1-10V Waterproof Ultra-thin CV Driver UWP240A-1M12V

Short Description:

Item No.: UWP240A-1M12V
Input Voltage: 100-240VAC
Output Power: 240W

Product Detail

Product Tags

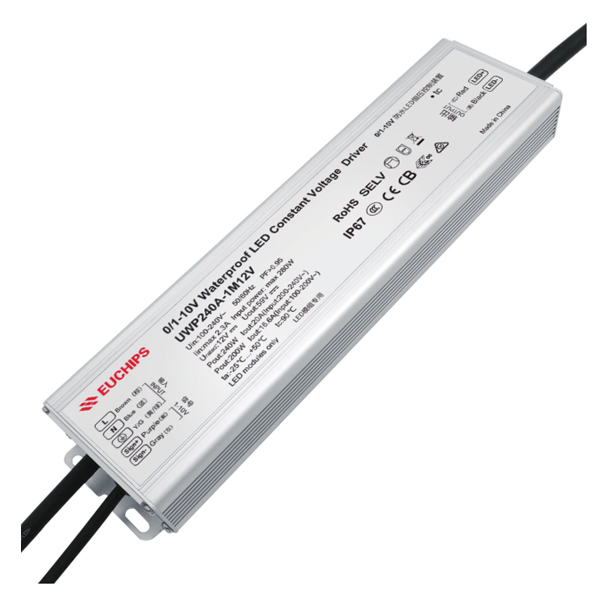

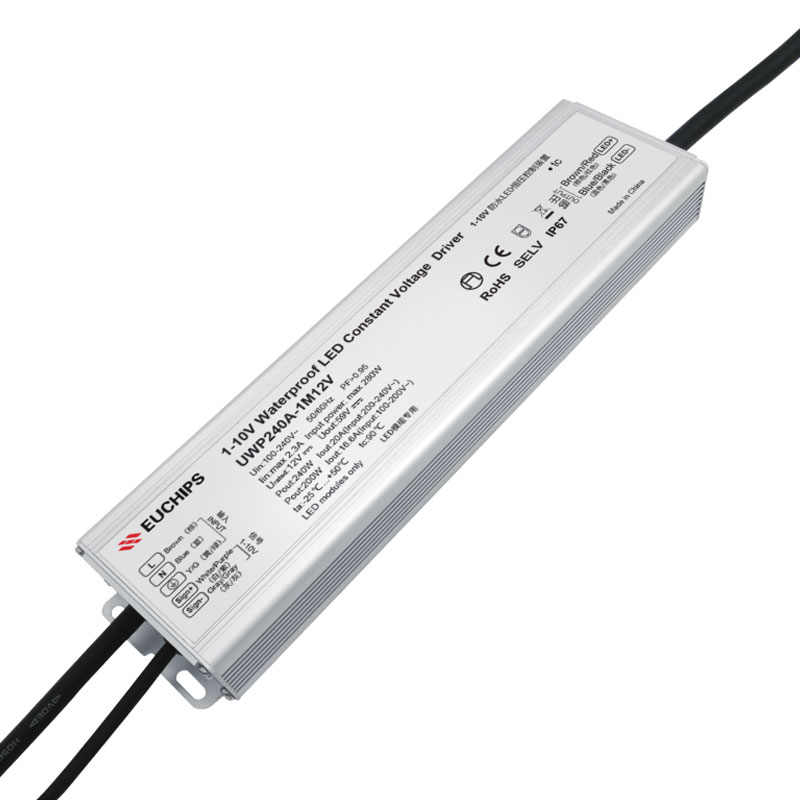

240W 12VDC Constant Voltage Driver UWP240A-1M12V

UWP240A-1M12V is a LED dimmable driver with constant voltage output, it can be used outdoor and achieve smooth dimming efect through external 0/1-10V active signal/PWM.

Features

1. Single-channel with 12V constant voltage output.

2. Wide voltage input range from 100VAC to 240VAC

3. Supporting 3-in-1 dimming way (0/1-10V active signal/adjustable resistor/PWM signal).

4. 1-100% full dimming range,smooth dimming curve,ficker-free,high efciency up to 90%.

5. Can be used as normal driver when signal suspending,as well as full-load output.

Technical Parameters

Model	UWP240A-1M12V
Input	Efficiency	90%@230VAC, Full load
	Voltage	100VAC-240VAC
	Frequency	50/60Hz
	Power Factor	≥0.95@230VAC, Full load
	THD	<10%230VAC, Full load
	Standby power	<0.5W
	Current	2.3Amax@100VAC
	Inrush Current	Cold start 50A(measured50% Ipeak twidth=60us)@230VAC
Output	Current/Voltage/Power	16.6A(lnput:100-200VAC/200W); 20A(lnput:200-240VAC/240W)/12VDC/240W
	Ripple Current	<120mVp-p
	Channel	1
	Voltage Tolerance	±2%
Protection	Short Circuit	Close output，recovers after fault condition is removed
	Over Voltage	Shut down the output, After restart recovers automatically
	Over Current	Hic cup, recovers after fault condition is removed
Safety&EMC	Surge	L-N:2kV,L,N-FG:4kV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Eission	EN50515, EN61000-3-2 Class C, IEC61000-3-3,
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Function	Dimming mode	0/1-10V
Function	Dimming range	1%-100%
Others	Working Temp.	-25℃~+50℃
	Storage Temp.; Humidity	-40℃~85℃, 20-90%RH
	Tc	90℃
	Material	Metal
	IP Rating	IP67
	Lifetime	50,000h@tc:85℃
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing Size	Net weight: 1055g±5%/PCS; 20PCS/Carton; 26.1kg±5%/Carton; Carton Size: 355290180mm(LWH)
	Dimension	2706830mm(LWH)
