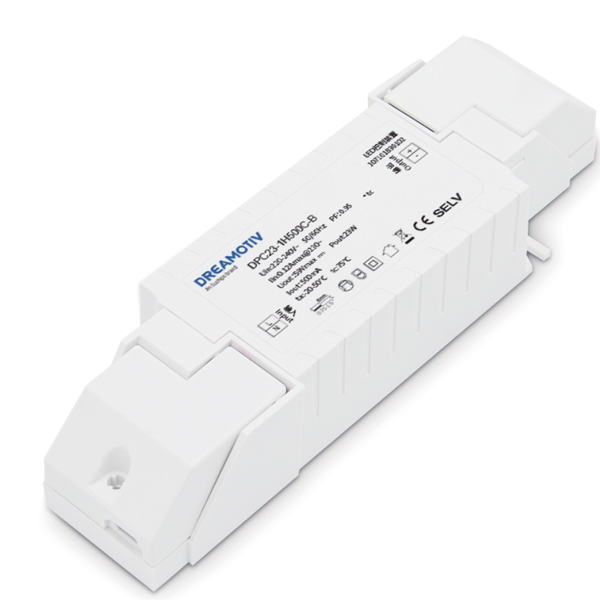

23W 500mA Non-dimmable CC Driver DPC23-1H500C-B
23W 500mA Non-dimmable CC Driver DPC23-1H500C-B
DPC23-1H500C-B is a 23W AC/DC constant current LED driver, Flicker free design to create a healthy light environment.
Features
· Constant current drive without stroboscopic
· Active power factor correction (PF>0.95)
· High efficiency, long life and high reliability
· Protection: Short circuit , over load, over voltage protection
· Suitable for LED lighting · Built in active PFC function
Technical Parameters
| Model | DPC23-1H500C-B | |
| Input | Efficiency | ≥86%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.12Amax@230VAC | |
| No load Power | ≤0.5W | |
| Inrush Current(max) | Cold Start,10.5A@230VAC 15.2us | |
| Turn on delay Time | ≤500ms, at230Vac (When the light begins to shine) | |
| Output | Current | 500mA |
| Voltage | 31-46VDC | |
| Power | 23 W | |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| Ripple current | ≤3% | |
| No load output voltage | 59VDC Max | |
| Protection | Short Circuit | Current down, troubleshooting output normal |
| Over Load | Reduce current burp protection，troubleshoot normal output | |
| Over voltage | Short circuit no output, troubleshooting output normal | |
| Safety& EMC | Surge | L-N:1000VAC |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/1mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Emission | EN55015 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃20-90%RH | |
| tc | 75 | |
| Material | Plastic case | |
| IP Rating | IP20 | |
| LifetimeCondition | 50,000h@tc:50℃ | |
| Warranty | 5 years | |
| Switch Cycle | >25,000 times | |
| Dimension (Side cover ) | 155*45*30mm（L*W*H） | |
| Dimension (No Side cover ) | 97*43.5*30mm（L*W*H） | |
