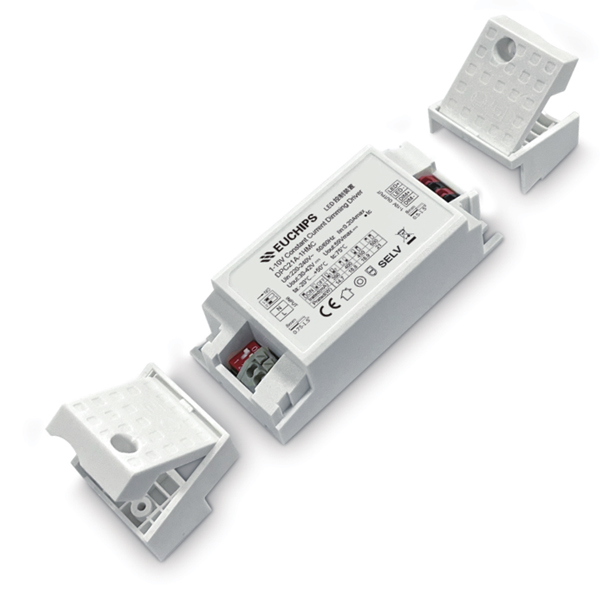

21W 350/400/450/500mA*1ch 1-10V CC Driver DPC21A-1HMC
21W 350/400/450/500mA*1ch 1-10V CC Driver DPC21A-1HMC
DPC21A-1HMC is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Features
1-10V Dimming
10-100% Dimming range
IP Grade IP20
Insulation ClassⅡ
Technical Parameters
| Model | DPC21A-1HMC | |
|
Input |
Rated Input Voltage | 220-240VAC |
| Range of Input Voltage | 198-264VAC or 200-250VDC | |
| Frequency | 50/60Hz | |
| Input Current | ≤0.20A (198VAC，full load) | |
| Input Power | ≤28W (230VAC，full load) | |
| Power Factor | ≥0.90 (230VAC，full load) | |
| THD | ≤20% (230VAC，full load) | |
| No-load Power Consumption | ≤0.5W @230VAC | |
|
Output |
Current, Voltage, Power | 350mA/30-42V/14.7W 400mA/30-42V/16.8W 450mA/30-42V/18.9W 500mA/30-42V/21W |
| Efficiency | ≥82% | |
| No load Voltage | 59V | |
| Current Accuracy | ±5% | |
| Max. Output Power | 21W | |
| Started Delay Time | ≤0.5S (230VAC，full load) | |
| Current Ripple(< 120 Hz) | ±5%（Imax-Imin）/（Imax+Imin） | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
|
Protection |
Short Circuit Protection | Auto Recovery |
| Overload Protection | Auto Recovery | |
| No-load Protection | Auto Recovery | |
| Insulation voltage | I/P to O/P , 3KVac/1min | |
| Insulation resistance | >100M ohm @ 500VDC | |
| Leakage current | I/P to O/P < 250µA | |
| Environment | Ta/Operation Temperature | -20…+50℃ |
| Ts/Storage Temperature | -30….+85℃ | |
| Tc/Enclosure Temperature | 75℃ | |
| Humidity | 10%. 90%RH | |
| Atmosphere | 86-108KPa | |
| Construction | Connection Method | Push-in Terminal |
| Installation | Build-in & Independent | |
| PRI Wire preparation | 0.75-1.5² | |
| SEC Wire preparation | 0.5-1.5² | |
| Dimension | Independent:137.6*44*30mm (L*W*H) Built in:97.8*44*30mm(L*W*H) | |
| Construction | Safety Standards | EN61347-1:2015 EN61347-2-13:2014/A1:2017 EN62384:2006/A1:2009 AS61347.2.13:2018 AS/NZS61347.1:2016 Inc A1 |
| EMC Standards | EN IEC 55015:2019 EN IEC 55015:2019/A11:2019 EN IEC 61000-3-2:2019 EN 61000-3-3:2013/A1:2019 EN61547:2009 | |
| Performance | EN62384 | |
| Surge | L-N/1KV | |
|
Others |
RoHS | Complied to 2011/65/EU |
| Life Time | 50000h @50℃ (Ta) / 85℃ (Tc) | |
| Warranty | 5years ， F.R. <10000ppm | |
| Noise | ≤ 24dB @Background noise ≤18dB ，Interval≥15cm | |
| Remark： 1.All Parameters, if not specified, are measured at 230VAC/50Hz and 25℃ ambient temperature. 2.LED Driver is a component of the luminaires. Luminaires and wire layout will affect the EMC, please check the EMC with end products again. | ||
