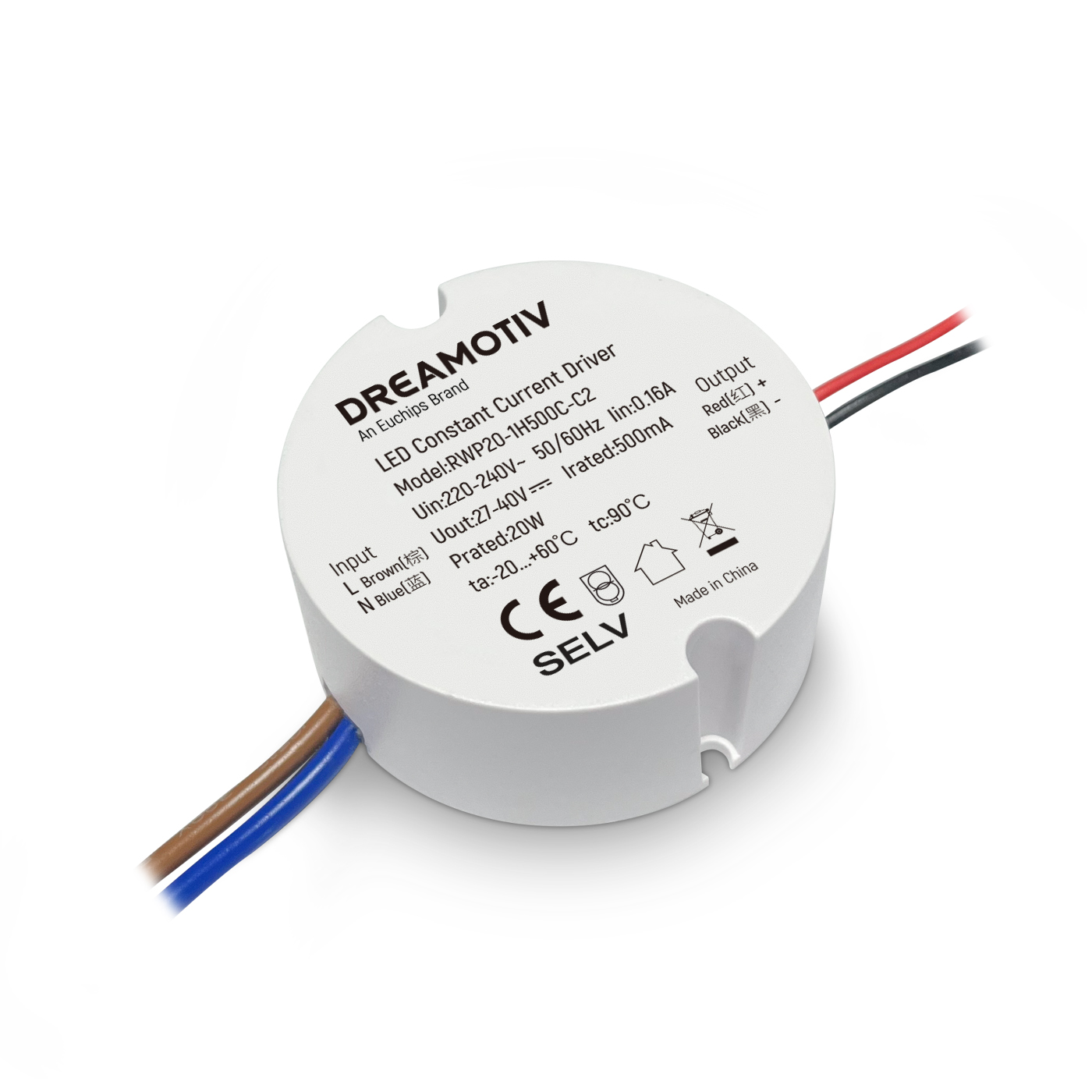

20W 500mA Non-dimmable CC LED Driver RWP20-1H500C-C2

Short Description:

Item No.: RWP20-1H500C-C2
Output Power: 20W

Product Detail

Product Tags

20W 500mA Non-dimmable CC LED Driver RWP20-1H500C-C2

Features

· Isolated LED Driver for class I ，Class II LED Luminaire
· Fixed output built-in LED driver
· Simple structure, cost effective
· Flicker free LED driver
· Indoor office lighting, decorative lighting, commercial lighting, and residential lighting
· 5 years warranty

Technical Parameters

Model

Input Voltage

Input Current

Input Power

Output Voltage

Output Current

No load Voltage

Range of

Output Power

Efficiency

RWP20-1H500C-C2

220-240VAC

0.16A

24W

0.92

27-40VDC

500mA

55VDC

13.5-20W

86%

Input	Range of Input Voltage	198-264VAC
	Frequency	50/60Hz
	THD	<15%@230VAC, full load
	No-load Power Consumption	≤0.5W @230VAC
	Inrush Current	≤25A (230VAC, Full-load)
	Connected quantity of 16A Breaker	33pcs/type B ;53pcs/type C @ 230Vac
Output	Current Tolerance	±5%
	Started Delay Time	≤0.5S (230VAC，full load)
	Current Ripple	<8%
	Channel	1
Protection	Short Circuit	Auto Recovery
	Overload Protection	Auto Recovery
	Insulation voltage	I/P to O/P , 3KVac/1min
	Insulation resistance	>100M ohm @ 500VDC
	Leakage current	I/P to O/P < 250μA
Environment	Ta/Operation Temperature	-20….+60℃
	Ts/Storage Temperature	-40….+80℃
	Tc/Enclosure Temperature	90℃
	Humidity	10%. 90%RH
	Atmosphere	86-108KPa
Standards	Safety Standards	EN 61347-1:2015/A1:2021 EN 61347-2-13:2014/A1:2017 EN 62493:2015
	EMC Standards	EN 61547、EN55015 、EN 61000-3-2、EN61000-3-3
	Performance	EN62384
	Surge	L-N/1KV
	Withstand voltage	I/P-O/P:3.75KVac,<5mA 60s;
Others	RoHS	RoHS 2.0 （EU）2015/863
	Life Time	30000h @60℃ (Ta) / 90℃ (Tc)
	Warranty	5years，F.R.<10000ppm
	Packing(weight)	Net weight: –g±5%/PCS; –PCS/Carton; – kg±5%/Carton; Carton Size: –––mm(LWH)
