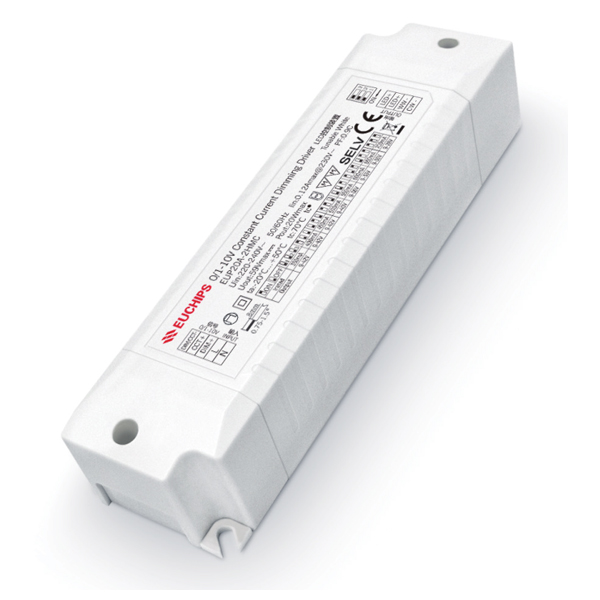

20W 350~700mA*2ch 0/1-10V CC Driver EUP20A-2HMC(Small Size)
20W 350~700mA*2ch 0/1-10V CC Driver EUP20A-2HMC(Small Size)
EUP20A-2HMC is a 20W AC/DC constant current mode unable White output LED driver featuring the multiple levels selectable by DIP switch.
Features
· Two channel output, output current level selectable by DIP S.W.
· High efficiency up to 85 %
· Built-in active PFC function
· Protections: Short circuit, over load, over Voltage
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20A-2HMC | |
|
Input |
Efficiency | ≥85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.9@230VAC,Full load | |
| THD(full load) | NC | |
| AC Current(max) | 0.12Amax@230VAC | |
| Standby power | NC | |
| Inrush Current(max) | NC | |
|
Output |
Current(mA)/Voltage (VDC) Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W450mA/9-42VDC/18.9W 500mA/9-40VDC/20W550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W
650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
| Channel | 2 | |
| Current Tolerance | ±5% (350mA ±7% ) | |
| No load output voltage | 59V Max | |
| Turn on delay Time | <0.75, at230Vac(When the light begins to shine) | |
| Function | Dimming Type | 0/1-10V |
| Dimming Range | NC | |
| color temperature | 2700K-6500K | |
| Dimming curve | Linearity | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | Reduce current burp protection, self-recovery after troubleshooting | |
| over Voltage | Reduce current, self-recovery after troubleshooting | |
| Safety& EMC | Surge | L-N: 1KV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA | |
| Safety standards | NC | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight: 88g±5%/PCS; 80PCS/Carton; 7.5kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | |
| Dimension | 135*36*25mm（L*W*H） | |
