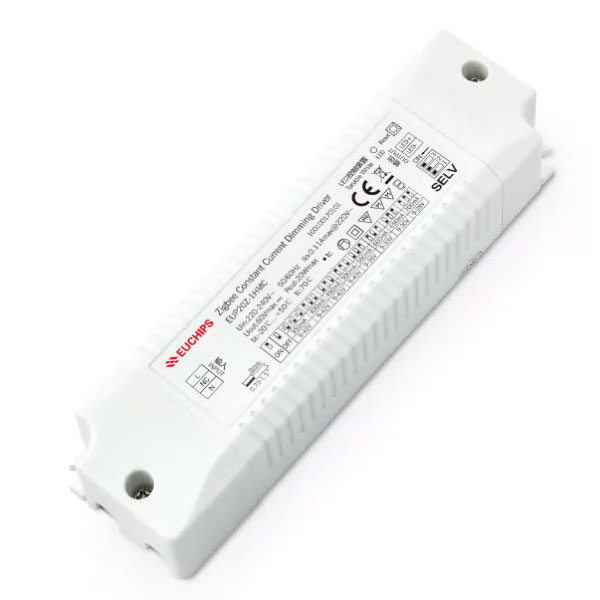

20W 350~700mA*1ch Zigbee CC Driver EUP20Z-1HMC
20W 350~700mA*1ch Zigbee CC Driver EUP20Z-1HMC
EUP20Z-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable
by DIP switch. Through Bluetooth to achieve wireless dimming effect.
Features
1. output current level selectable by DIP S.W.
2. Wide input voltage of 220VAC ~ 240VAC
3. High efficiency up to 85%
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: over load, Short circuit
7. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20Z-1HMC | |
| Input | Efficiency | 85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.11Amax@230VAC | |
| Inrush Current(max) | Cold start,20A@230VAC 100us | |
| Output | Current / Voltage / Power | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W450mA/9-42VDC/18.9W 500mA/9-40VDC/20W550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% ; * 350mA ±7% | |
| No load output voltage | 60V Max | |
| Turn on delay Time | <0.75s | |
| Standby power | <0.7W | |
| Fuction | Dimming Type | Zigbee |
| Dimming Range | 0%-100% | |
| Protection | Short Circuit | No output – recovers automatically after fault removed |
| Over Load | Hiccup, output current Reduced | |
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 70℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:70℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: 110g±5%/PCS; 50PCS/Carton; 6.3kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |
