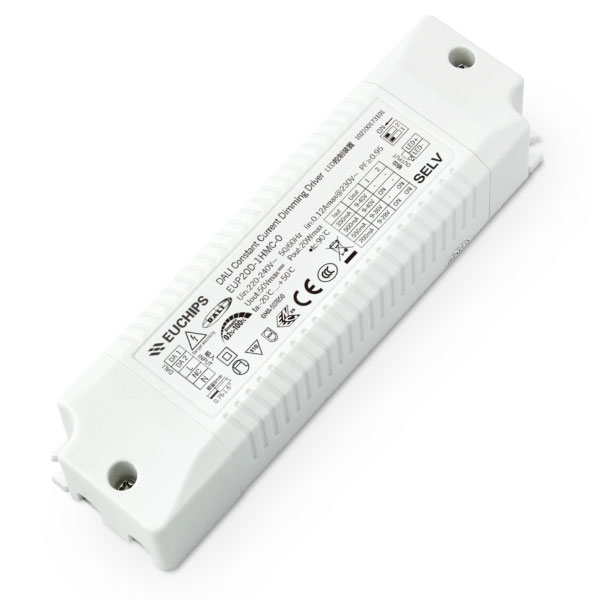

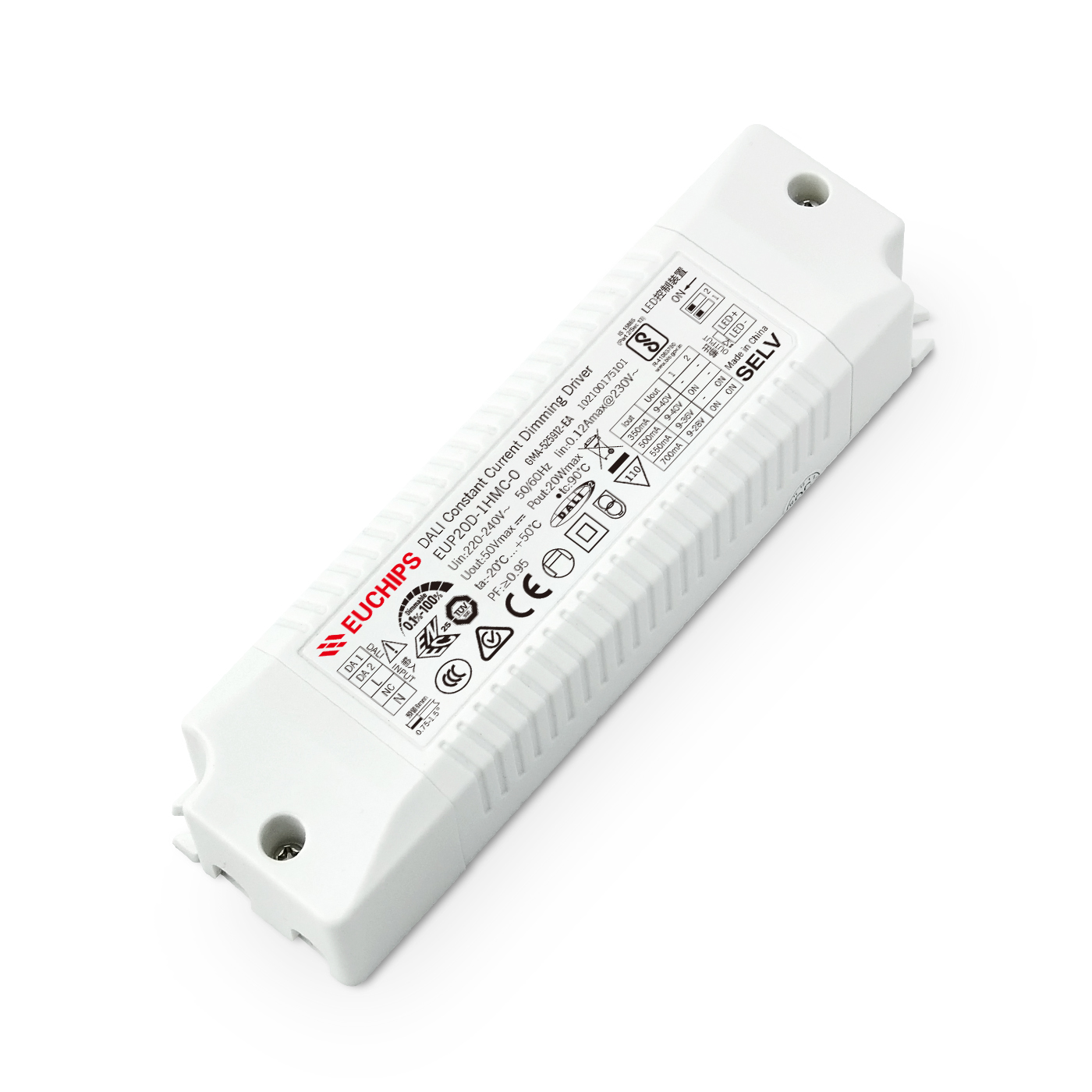

20W 350/500/550/700mA*1ch DALI CC Driver EUP20D-1HMC-0
350/500/550/700mA 20W Constant Current DALI Driver EUP20D-1HMC-0(DALI2.0)
EUP20D-1HMC-0 is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP20D-1HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 ed2.0
3. Support Touch-DIM function
4. High efficiency up to 85%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage,over temperature
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20D-1HMC-0 | ||
| Input | Efficiency | 85%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.12Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) | 350mA/9-40VDC/14W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 700mA/9-28VDC/19.6W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 50V Max | ||
| Function | Dimming Mode | DALI/Touch DIM | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Voltage | Hiccup, recovers after faultc ondition is removed. | ||
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | ||
| Safety&EMC | Surge | L-N:1kV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC62386-207 Ed2.0 | ||
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14, | ||
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3,GB/T17743 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | ABS | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:70℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
