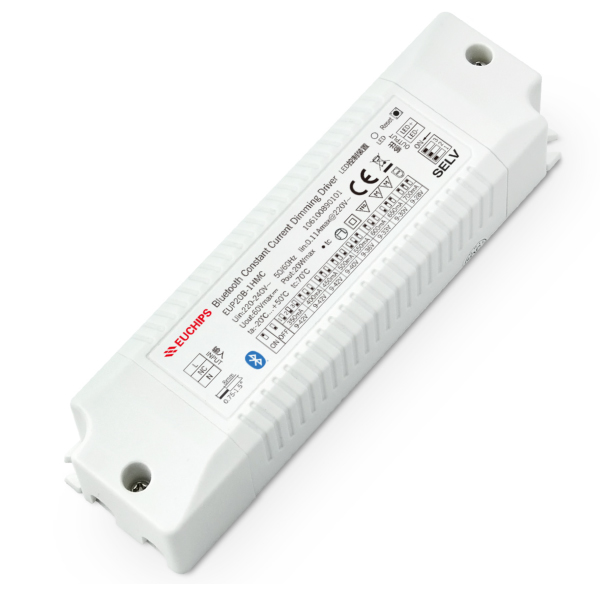

20W 350~700mA*1ch Bluetooth CC Driver EUP20B-1HMC
20W 350~700mA*1ch Bluetooth CC Driver EUP20B-1HMC
EUP20B-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch. Through Bluetooth to achieve wireless dimming effect.
Features
· output current level selectable by DIP S.W.
· Wide input voltage of 220VAC ~ 240VAC
· High efficiency up to 85%
· Built-in active PFC function
· Protections: over load, short circuit
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
· Support Bluetooth line control and gateway control for IOS and Android smart devices
· Bluetooth 5.1SIGMesh connection is more stable
· No stroboscopic
· Passed BQB certification test and met SIG Mesh standards
Technical Paramaters
| Model | EUP20B-1HMC | ||
| Input | Efficiency | ≥85%@230VAC,Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency Range(Hz) | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load) | <10%@230VAC, Full load | ||
| AC Current(max) | 0.11Amax@230VAC | ||
| Inrush Current(max) | Cold start,14A@220VAC | ||
| Standby power | <1W | ||
| No load Power | <1W | ||
| Output | Current(mA)/Voltage (VDC) Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W450mA/9-42VDC/18.9W 500mA/9-40VDC/20W
550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% ; *350mA ±7% | ||
| No load output voltage | 60VDC Max | ||
| Turn on delay Time | ≤0.5s | ||
| Function | Dimming Type | Bluetooth | |
| Dimming Range | 0%-100% | ||
| Protection | Short Circuit | No output - recovers automatically after fault removed | |
| Over Load | output current Reduced | ||
| Safety& EMC | Surge | L-N:1KV | |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA℃ ℃ | ||
| Others | Working Temp. | -20 ℃~50℃, | |
| Storage Temp., Humidity | -4℃ ~85℃, 20-90%RH | ||
| tc | 70℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:70℃ | ||
| Warranty Condition | 5 Years | ||
| Switch Cycle | >25,000 times | ||
| Packing(weight) | Net weight: 110g±5%/PCS;50PCS/Carton; 6.3kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*43*29mm（L*W*H） | ||
