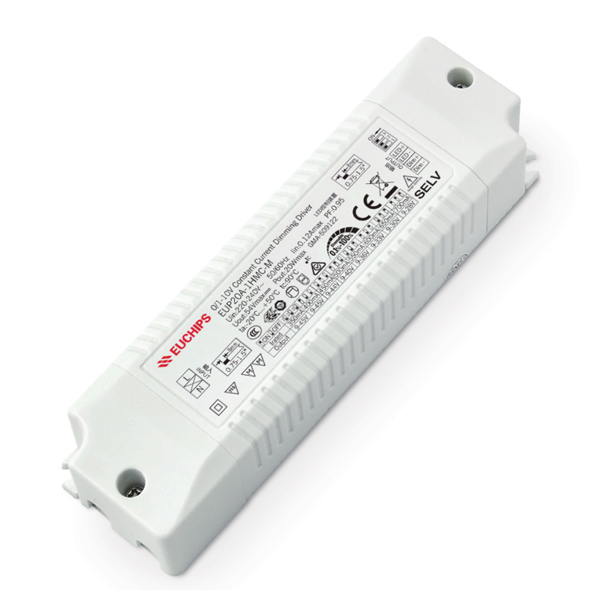

EUP20A-1HMC-M is a constant current output mode LED driver. Support 0/1-10V Dimming function. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the users and luminaire system during installation.
Features
·Single channel output, output current level selectable by DIP S.W.
·Support 0/1-10V Dimming function
·Dimming range: 0.1-100% Dimming effect smooth, no flicker
·Protections: Short circuit, Over load
·Suitable for indoor LED lighting application
Technical Parameters
| Model | EUP20A-1HMC-M | |
| Input | Efficiency | 86%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | 0.95@230VAC, Full load | |
| THD(full load) | <15%@230VAC | |
| AC Current(max) | 0.12Amax@230VAC | |
| Standby Power | <0.5W | |
| No load Power | <0.5W | |
| Inrush Current(max) | Cold start, 60A@230VAC | |
|
Current/Voltage/Power |
350mA/9-45V/15.75W 450mA/9-44V/19.8W 550mA/9-36V/19.8W 650mA/9-30V/19.5W | |
| 400mA/9-45V/18W 500mA/9-40V/20W 600mA/9-33V/19.8W 700mA/9-28V/19.6W | ||
| Ripple Current | <3% | |
| Output | Channel | 1 |
| Current Tolerance | ±5% | |
| Voltage Range | 9-45V | |
| Turn on delay Time | <1s, at 230Vac | |
| Function | Dimming Type | 0/1-10V/PWM/RX |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Close output, recovers automatically after fault removed |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA; O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | EN61347-1, EN61347-2-13 | |
| EMC Eission | EN55015, EN61000-3-2, EN61000-3-3, EN6154 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61547 | |
|
Others |
Working Temp., Humidity | -20°C~+50°C, 20-50%RH |
| Storage Temp., Humidity | -40°C~85°C, 5-70%RH | |
| Tc | 90°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80°C | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 tims | |
| Packing(weight) | Net weight: –g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –mm(L*W*H) | |
| Dimension | 150*43*29mm(L*W*H) |
