20W 350~700mA*1ch Phase-cut CC Driver PUP20T-1HMC
20W 350~700mA Phase-cut Constant Current Driver PUP20T-1HMC

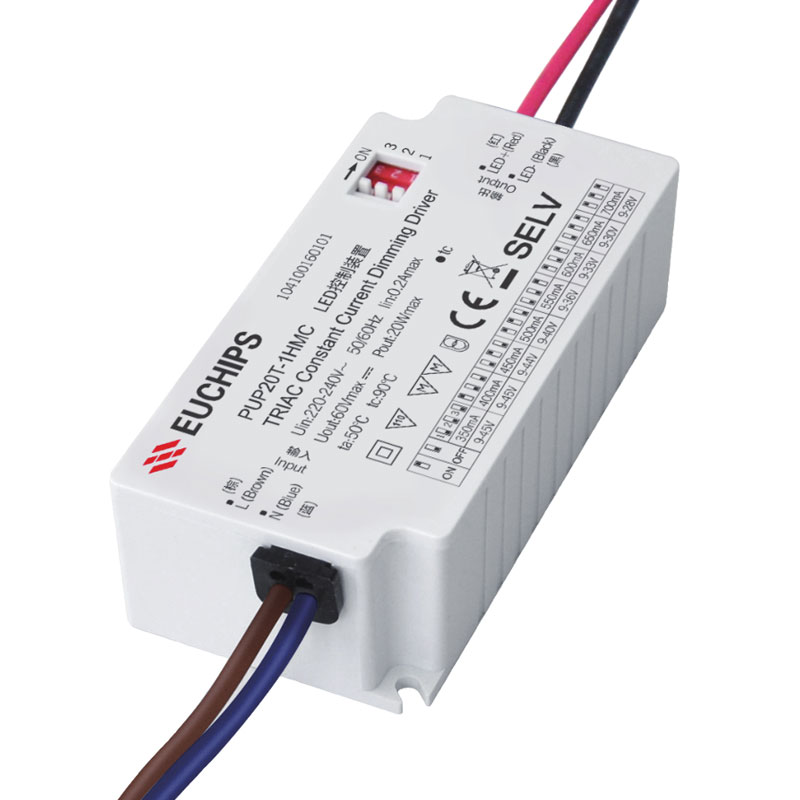

PUP20T-1HMC is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Input Voltage 220-240VAC
4. Built-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application,such as down light,spotlights,panel light,and so on
Technical Parameters
| Model | PUP20T-1HMC | |
| Input | Voltage | 220-240VAC |
| Frequency | 50/60Hz | |
| Efficiency | 79%@230VAC, Full load | |
| PF | 0.92@230VAC, Full load | |
| THD(full load) | <20%@100VAC | |
| Current | 0.2Amax@230VAC | |
| Inrush Current | Cold start,10A@230VAC | |
| Standby Power | <3W | |
| Output | Current/Voltage/Power | 350mA/9-45V/15.7W 400mA/9-45V/18W 450mA/9-44V/19.8W 500mA/9-40V/20W 550mA/9-36V/19.8W 600mA/9-33V/19.8W 650mA/9-30.7V/20W 700mA/9-28.5V/20W |
| Channel | 1 | |
| No load output voltage | 60V Max | |
| Frequency | 2KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
| Safety&EMC | Surge | L-N:0.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347-2-13 | |
| EMC Eission | EN55015 | |
| EMC Immunity | EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 | |
| Others | TRIAC | TRIAC |
| Dimming range | 3%-100% | |
| Dimension | 88*43*26.5mm(L*W*H) | |
| Pack Information | Net weight: 105g±5%/PCS; 50PCS/Carton; 5.75kg±5%/Carton; Carton Size: 234x222x194mm(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃~55℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:70℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
