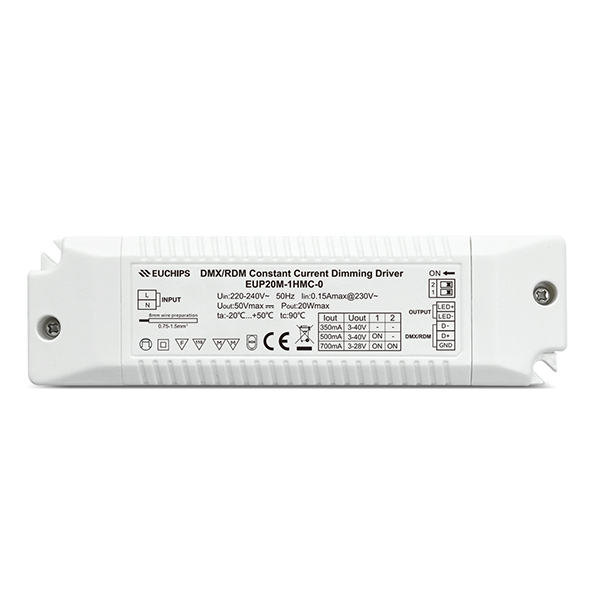

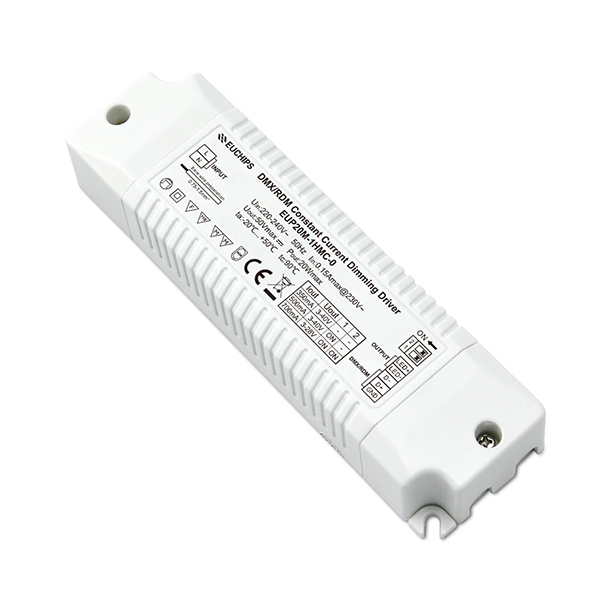

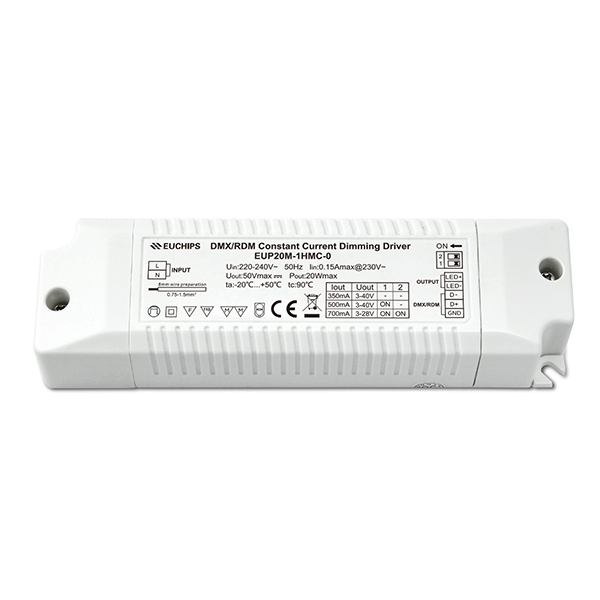

20W 350/500/550/700mA CC DMX Driver EUP20M-1HMC-0
20W 350/500/550/700mA Constant Current DMX Driver EUP20M-1HMC-0
Feature
1. Single channel output, output current level selectable by DIP S.W.
2. Support DMX512/RDM
3. Wide range of input voltage 200VAC~400VAC
4. Bult-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
| Model | EUP20M-1HMC-0 | ||||
| Output | Current |
350mA |
500mA |
550mA |
700mA |
| Voltage |
3-40VDC |
3-40VDC |
3-36VDC |
3-28VDC |
|
| Power |
14W |
20W |
19.8W |
19.6W |
|
| Current Accuracy | ±5% | ||||
| No load output voltage | 50VDC | ||||
| Output LF current ripple(< 120 Hz) | ＜3% | ||||
| Channels | 1 | ||||
| Input | Voltage | 200– 240VAC | |||
| Frequency | 50/60Hz | ||||
| Current | 0.12Amax@230VAC | ||||
| Power factor | >0.95@230VAC,full load | ||||
| Efficiency | 82%@230VAC,full load | ||||
| Inrush Current | Cold start,15A(twidth=22us measured at 50% Ipeak) @230VAC | ||||
| Protection | Short Circuit | Close output, recovers automatically after fault removed | |||
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced | ||||
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal | ||||
| Function | Dimming | DMX512/RDM | |||
| Others | Dimension | 150*43*29 mm（L*W*H） | |||
| G.W | 120g | ||||
| Working temp. | -20℃ ~ 50℃ | ||||
| Relative humidity | 20~90% RH | ||||
