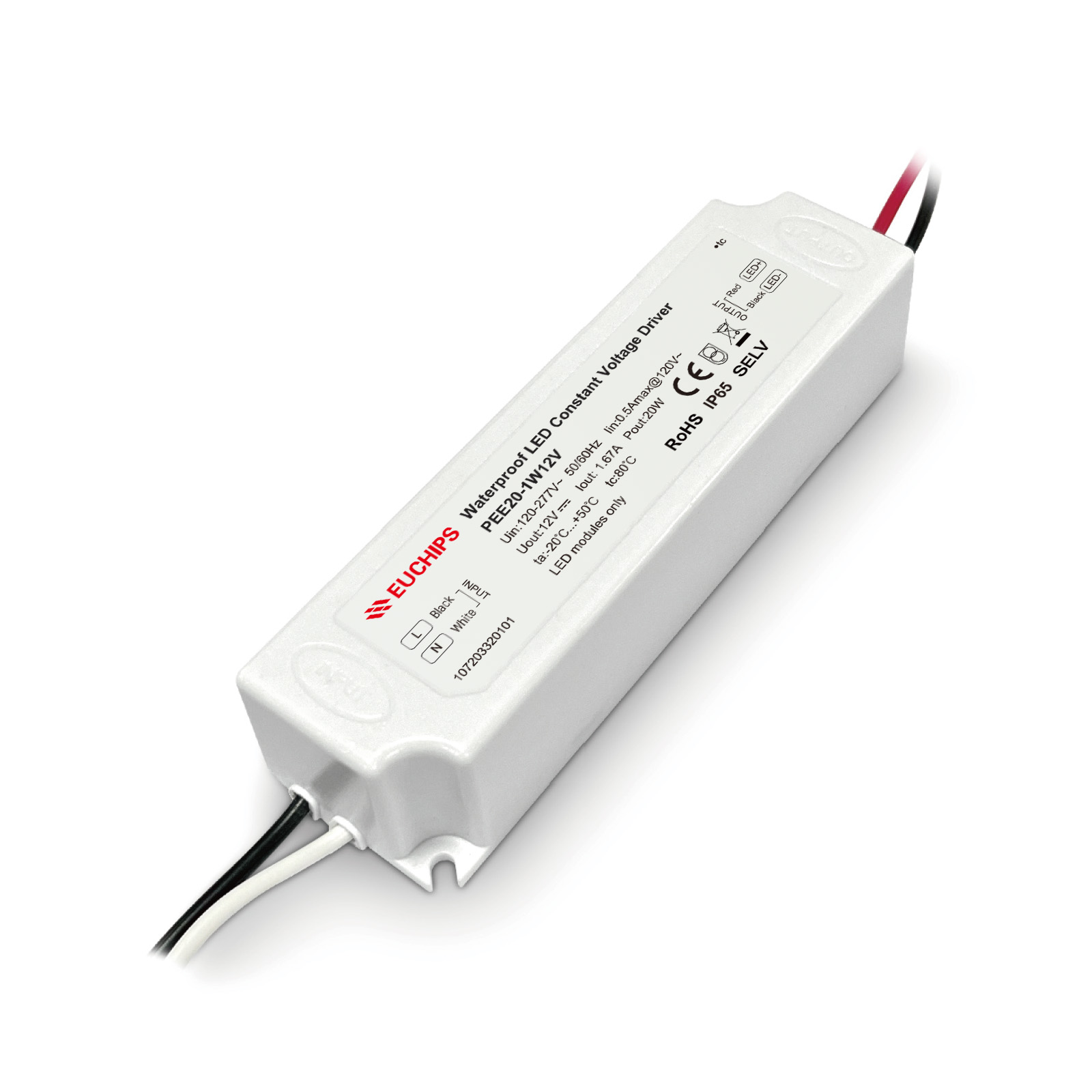

20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1W12V
20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1W12V
Features
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PEE20-1W12V | |||
|
Input |
Efficiency | ≥84%@230VAC, Full load | ||
| Voltage | 120VAC-277VAC | |||
| Frequency | 50/60Hz | |||
| Current | 0.5Amax@120VAC | |||
| No load power | ≤0.5W | |||
| PF | ≥0.5@120Vac | |||
| Inrush Current | Cold start 40A@230VAC 200us | |||
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |||
|
Output |
Current / Voltage / Power | 1.67A / 12VDC / 20W | ||
| Channel | 1 | |||
| Voltage Accuracy | ±5% | |||
| Ripple Voitage | 3% | |||
| No load output voltage | 12.6VDC max | |||
| Protection | Load protection | Voltage reduction, troubleshooting self recovery | ||
| Short circuit protection | Hiccups, troubleshoot and recover | |||
| Overcurrent protection | Voltage reduction, troubleshooting self recovery | |||
| Safety & EMC | Lightning Surge | L-N:2kV | ||
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |||
| Safety Standards | EN61347-2-13 / EN61347-1 / UL1310 | |||
| EMC Eission | EN55015 / FCC Part 15 Class B | |||
|
Others |
Working Temp. | -20℃~50℃ | ||
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |||
| Tc | 80℃ | |||
| Material | PC | |||
| IP Rating | IP65 | |||
| Lifetime | 50 000h@tc:70℃ | |||
| Warranty Condition | 5 year | |||
| Switch Cycle | >25,000 times | |||
| Packing Size | Net weight: 153g±5%/PCS; 60PCS/Carton; 9.5kg±5%/Carton; Carton Size: 282*230*140mm(L*W*H) | |||
| Dimension | 118*35*26mm (L*W*H) | |||
