20A*12ch Relay Switch Controller EUR1220

Short Description:

  • Item No.: EUR1220
  • Input Voltage: 100-240
  • Output Current: 20A*12CH
  • Output Voltage: -
  • Output Power: -
  • Dim Mode: DMX512/RDM/DALI/EU-BUS
  • G.W.: 1100
  • Size: 230*104*72

Product Detail

Product Tags

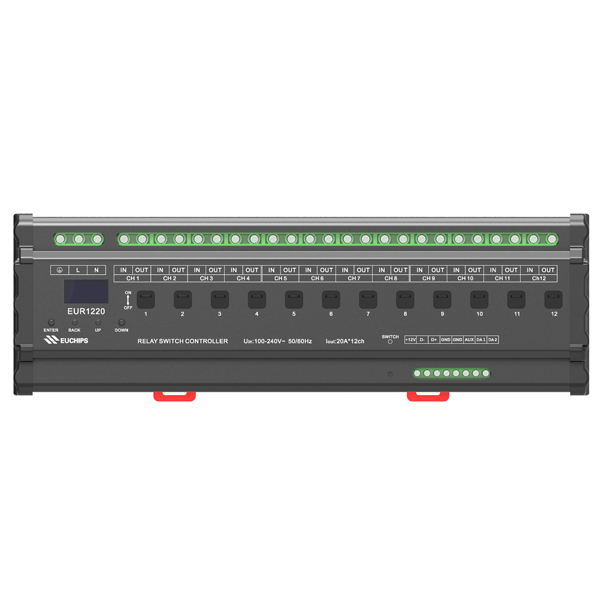

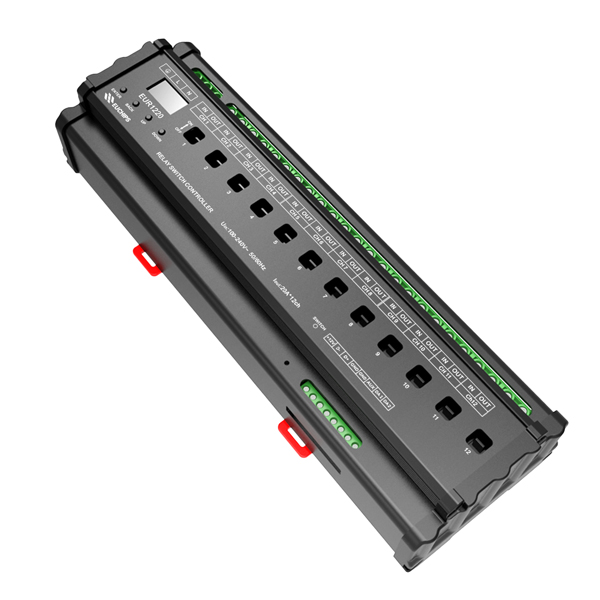

20A*12ch Relay Switch Controller EUR1220

The product adopts advanced microcomputer control technology, analysis widely used DMX-512 (1990) /RDM,DALI standard protocol, and EU-BUS protocol developed by EUCHIPS, output 12 relay switch signal. The maximum carrying current of each relay switch is 20A,the total 12 channel is 240A.In addition, the device can be connected into the Dynalite system by the Dynalite gateway (Note: the Dynalite trademark holder is PHILPS, the relevant right is owned by the holder of the trademark, the same below)



Features

1. Meets DMX512(1990)/RDM, DALI IEC62386 protocol and EU-BUS protocol developed by EUCHIPS

2. Output 12 channel relay switch signal

3. Built-in LCD, the user can operate more conveniently

4. Set fades time of each channel separately, range of 0.1-60.9s

5. Standard 35 mm din rail, convenient installation

6. Relay switch channel can be turned on or off manually

7. Can save up to 8 events

8. Suitable for intelligent lighting control – Home Furnishing, office buildings, schools, stadiums, outdoor architecture etc.



Technical Parameter



Item Parameters
Input voltage 100-240VAC 50/60Hz
Input control signal DMX512(1990)/RDM,DALI IEC62386,EU-BUS signal
Max carrying current 20A*12ch
Dimension 295.5*93.4*63.2mm(L*W*H),standard 35mm din rail
Pack size 230*104*72mm(L*W*H)
G.W. 1100g
Operational temperature -20-40℃
