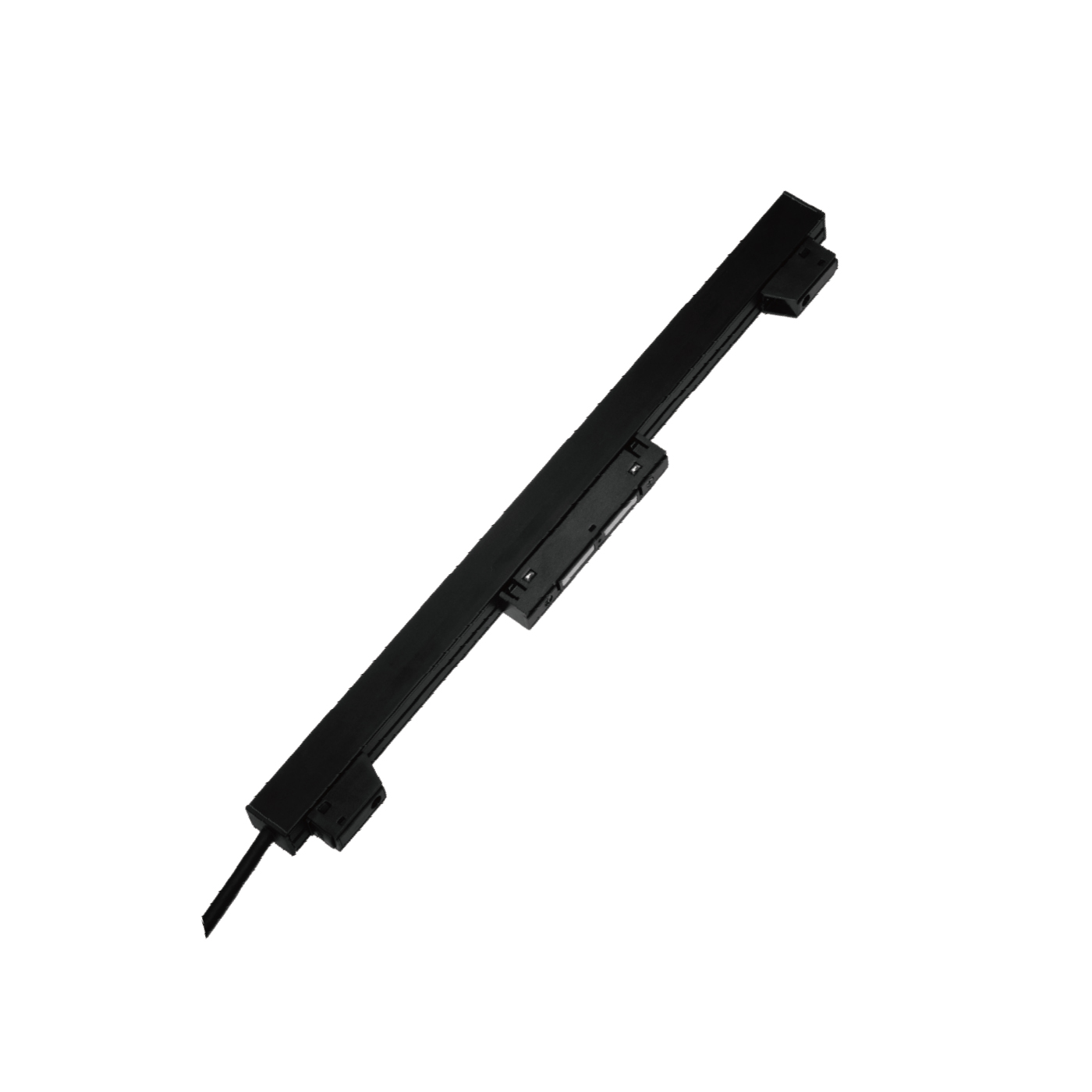

200W 48VDC Non-dimmable CV Driver LTP200-1H48V
200W 48VDC Non-dimmable CV Driver LTP200-1H48V
Features
· Constant pressure guide integrated power supply
· High efficiency, full load efficiency ≥89%
· Strong adaptation, can be adapted to domestic and foreign common guide rails
· Isolation without stroboscopic
Technical Parameters
| Model | LTP200-1H48V | |
| Input | Efficiency | ≥89%@230VAC, Full Load |
| Voltage range | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power range | <230W | |
| Current Max | ≤1.2A | |
| PF | ≥0.9@220VAC Full Load | |
| Output | Rated DC voltage | 48VDC±5% |
| No-load voltage | 50V Max. | |
| Rated current | ≤4.2A | |
| Rated Power | 200W | |
| Start-up Delay Time | ≤1S | |
| Protection | Short circuit | yes |
| Open circuit | yes | |
| Standard | Surge voltage protection | L-N/2KV/30s |
| EMC | EN55015/GB17743CDN | |
| Voltage Resistance Test | 3750VAC | |
| Other | Working TEMP | -15℃～+30℃ |
| Quality Guarantee | 2 Year | |
| Product size | 415*25*22mm | |
| Working Humidity | IP20 | |
| Insulation Resistance | ≥5.0MΩ | |
| Product size | 415*25*22mm(L*W*H) | |
