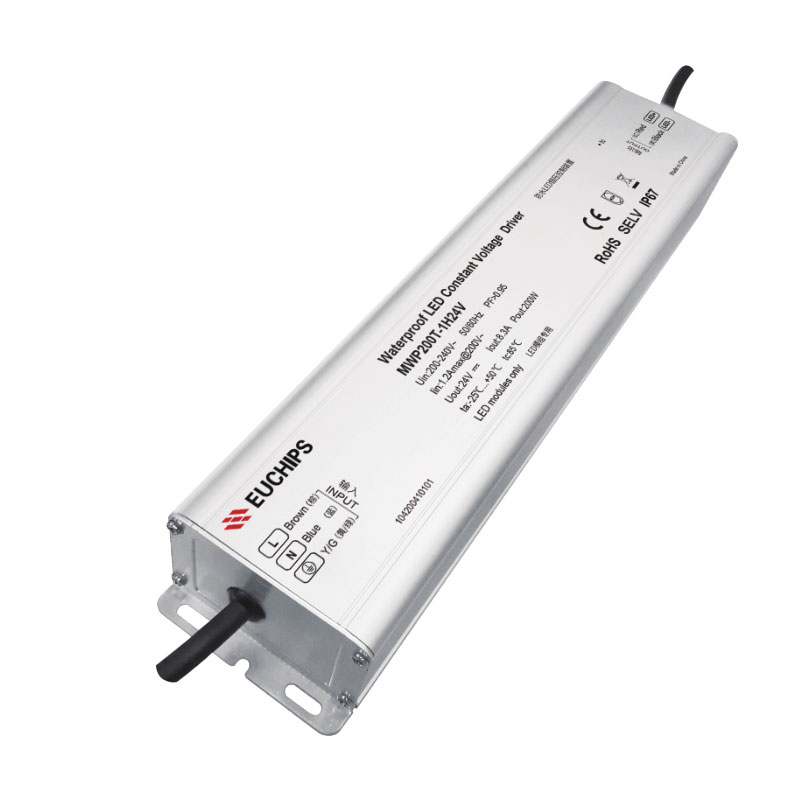

200W 24VDC Phase-cut Waterproof CV Driver MWP200T-1H24V
200W 24VDC Constant Voltage Triac Driver MWP200T-1H24V
MWP200T-1H24V is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.) to achieve a smooth dimming effect.
Features
1. Single-channel constant voltage output, 8.33A Max.
2. Support Leading edge (Triac) and Trailing edge (ELV)Dimmer.
3. Dimming range from 40VAC to 240V AC.
4. Dimming effect smooth, no flicker
5. High efficiency: up to 88%.
6. Over current protection; Over voltage protection;Short circuit protection;Over temperature Protection
7. Suitable for indoor and outdoor various LED lighting application
Technical Parameter
| Model | MWP200T-1H24V | ||
| Input | Efficiency | 88%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.95@230VAC, Full load | ||
| Current | 1.2Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | Cold start, 50A@230VAC | ||
| Output | Current/Voltage/Power | 8.33A/24VDC/200W | |
| Ripple Current | 240mVp-p | ||
| Channel | 1 | ||
| Voltage Tolerance | ±2% | ||
| Turn On Delay Time | <2s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Dimming Range | 1-100% Dimming to off | ||
| Protection | Over temperature | Shut down and auto-restart after normal temperature | |
| Over current | Hiccup, recovers after fault condition is removed | ||
| Short Circuit | Close the output, restart to recover since fault condition is removed for 10s | ||
| Over voltage | Hiccup, recovers after fault condition is removed | ||
| Others | Working Temp. | -25℃~50℃ | |
| Storage Temp.; Humidity | -25℃~75℃, 5-95%RH | ||
| Tc | 85℃ | ||
| Material | PC | ||
| IP Rating | IP67 | ||
| Lifetime | 50,000h@tc:75℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 1600g±5%/PCS; 10PCS/Carton; 16.5kg±5%/Carton; Carton Size: 356*264*182mm(L*W*H) | ||
| Dimension | 306*67*45mm(L*W*H) | ||
