200W 12VDC DALI&0/1-10V CV Driver EUP200AD-1H12V-0

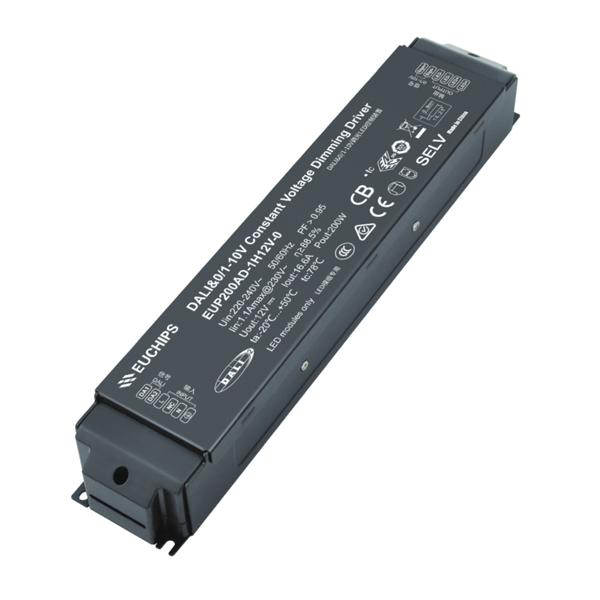

200W 12VDC Constant Voltage DALI&0/1-10V Driver EUP200AD-1H12V-0
EUP200AD-1H12V-0 is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386,and provides multiple dimming function (DALI,1-10V active signal ,PWM, adjustable resistance, and Touch DIM) to achieve a smooth dimming effect.
Features
· Single channel constant voltage output
· Support a variety of dimming mode（DALI/1-10V active signal/adjustable resistance/PWM/Touch DIM）
· High range of input voltage 220VAC ~ 240VAC
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Over temperature protection; Over voltage protection; Short circuit protection
· Suitable for indoor LED lighting application, such as LED strips, spot light, wall washer,and so on
Technical Parameter
| Model | EUP200AD-1H12V-0 | |
| Input | Efficiency | ≥88.5%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@115VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 1.1Amax@230VAC | |
| Inrush Current(max) | Cold start,28A(twidth=1250us measured at 50% Ipeak) @230VAC | |
| Output | Current / Voltage / Power | 16.6A/12VDC/200W |
| R & N (Max) | 200mVp-p | |
| Channel | 1 | |
| Voltage Accuracy | ±3% | |
| Function | Dimming Type | DALI/Touch DIM/1-10V/Adjustable resistance /PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Over voltage | Close the output, restart to recover since fault condition is removed for 10s |
| Over temperature | Close the output, restart to recover since fault condition is removed for 10s | |
| Short Circuit | Hiccup, recovers after fault condition is removed |
|
| Safety & EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 21.0 | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 860g±5%/PCS; 10PCS/Carton;9.1kg±5%/Carton; Carton Size: 333*268*150mm(L*W*H) | |
| Dimension | 310*60*45mm（L*W*H） | |
